1:48 ICM Capture Heinkel

[Fran]

1:48

Capture  Heinkel

ICM





Catalogue number 48268

Price: around 47€



 “The Heinkel He 111 is a German airliner and bomber designed by Siegfried and Walter Günter at Heinkel Flugzeugwerke in 1934. Through development, it was described as a "wolf in sheep's clothing". Due to restrictions placed on Germany after the First World War prohibiting bombers, it was presented solely as a civil airliner, although from conception the design was intended to provide the nascent Luftwaffe with a heavy bomber.



Perhaps the best-recognised German bomber of World War II due to the distinctive, extensively glazed "greenhouse" nose of the later versions, the Heinkel He 111 was the most numerous Luftwaffe bomber during the early stages of the war. It fared well until it met serious fighter opposition during the Battle of Britain, when its defensive armament was found to be inadequate.

As the war progressed, the He 111 was used in a wide variety of roles on every front in the European theatre. It was used as a strategic bomber during the Battle of Britain, a torpedo bomber in the Atlantic and Arctic, and a medium bomber and a transport aircraft on the Western, Eastern, Mediterranean, Middle Eastern, and North African Front theatres.



The He 111 was constantly upgraded and modified, but had nonetheless become obsolete by the latter part of the war. The failure of the German Bomber B project forced the Luftwaffe to continue operating the He 111 in combat roles until the end of the war. Manufacture of the He 111 ceased in September 1944, at which point piston-engine bomber production was largely halted in favour of fighter aircraft. With the German bomber force virtually defunct, the He 111 was used for logistics.



Production of the Heinkel continued after the war as the Spanish-built CASA 2.111. Spain received a batch of He 111H-16s in 1943 along with an agreement to licence-build Spanish versions. Its airframe was produced in Spain under licence by Construcciones Aeronáuticas SA. The design differed significantly only in the powerplant used, eventually being equipped with Rolls-Royce Merlin engines. These remained in service until 1973.he H variant of the He 111 series was more widely produced and saw more action during World War II than any other Heinkel variant. Owing to the uncertainty surrounding the delivery and availability of the DB 601 engines, Heinkel switched to 820 kW (1,100 hp) Junkers Jumo 211 powerplants, whose somewhat greater size and weight were regarded as unimportant considerations in a twin-engine design. When the Jumo was fitted to the P model it became the He 111 H. The He 111 H-1 was fitted with a standard set of three 7.92 mm (0.312 in) MG 15 machine guns and eight SC 250 250 kg (550 lb) or 32 SC 50 50 kg (110 lb) bombs. The same armament was used in the H-2 which started production in August 1939. The P-series was gradually replaced on the eve of war with the new H-2, powered by improved Jumo 211 A-3 engines of 820 kW (1,100 hp). A count on 2 September 1939 revealed that the Luftwaffe had a total of 787 He 111s in service, with 705 combat ready, including 400 H-1 and H-2s that had been produced in a mere four months. Production of the H-3, powered by the 895 kW (1,200 hp) Jumo 211 D-1, began in October 1939. Experiences during the Polish Campaign led to an increase in defensive armament. MG 15s were fitted whenever possible and the number of machine guns was sometimes increased to seven. The two waist positions received an additional MG 15, and on some variants a belt-fed MG 17 was even installed in the tail. A 20 mm (0.79 in) MG FF autocannon would sometimes be installed in the nose or forward gondola.

After the Battle of Britain, smaller scale production of the H-4s began. The H-4 was virtually identical to the He 111 P-4 with the DB 600s swapped for the Jumo 211D-1s. Some also used the Jumo 211H-1. This variant also differed from the H-3 in that it could either carry 2,000 kg (4,400 lb) of bombs internally or mount one or two external racks to carry one 1,800 kg (4,000 lb) or two 1,000 kg (2,200 lb) bombs. As these external racks blocked the internal bomb bay doors, a combination of internal and external storage was not possible. A PVR 1006L bomb rack was fitted externally and an 835 L (184 imp gal; 221 US gal) tank added to the interior spaces left vacant by the removal of the internal bomb-bay. The PVR 1006L was capable of carrying a SC 1000 1,000 kg (2,200 lb) bomb. Some H-4s had their PVC racks modified to drop torpedoes. Later modifications enabled the PVC 1006 to carry a 2,500 kg (5,500 lb) "Max" bomb. However 1,000 kg (2,200 lb) "Hermann" or 1,800 kg (4,000 lb) "Satans" were used more widely.

The H-5 series followed in February 1941, with heavier defensive armament.

 Like the H-4, it retained a PVC 1006 L bomb rack to enable it to carry heavy bombs under the fuselage. The first ten He 111 H-5s were pathfinders, and selected for special missions. The aircraft sometimes carried 25 kg (55 lb) flashlight bombs which acted as flares. The H-5 could also carry heavy fire bombs, either heavy containers or smaller incendiary devices attached to parachutes. The H-5 also carried LM A and LM B aerial mines for anti-shipping operations. After the 80th production aircraft, the PVC 1006 L bomb rack was removed and replaced with a heavy-duty ETC 2000 rack, enabling the H-5 to carry the SC 2500 "Max" bomb, on the external ETC 2000 rack, which enabled it to support the 2,500 kg (5,500 lb) bomb.

Some H-3 and H-4s were equipped with barrage balloon cable-cutting equipment in the shape of cutter installations forward of the engines and cockpit. They were designated H-8, but later named H8/R2. These aircraft were difficult to fly and production stopped. The H-6 initiated some overall improvements in design. The Jumo 211 F-1 engine of 1,007 kW (1,350 hp) increased its speed while the defensive armament was upgraded at the factory with one 20 mm (0.79 in) MG FF cannon in the nose and/or gondola positions (optional), two MG 15 in the ventral gondola, and one each of the fuselage side windows. Some H-6 variants carried tail-mounted MG 17 defensive armament.[54] The performance of the H-6 was much improved. The climb rate was higher and the bomber could reach a slightly higher ceiling of 8,500 m (27,900 ft). When heavy bomb loads were added, this ceiling was reduced to 6,500 m (21,300 ft). The weight of the H-6 increased to 14,000 kg (31,000 lb). Some H-6s received Jumo 211F-2s which improved a low-level speed of 365 km/h (227 mph). At an altitude of 6,000 m (20,000 ft) the maximum speed was 435 km/h (270 mph). If heavy external loads were added, the speed was reduced by 35 km/h (22 mph).

Other designs of the mid-H series included the He 111 H-7 and H-8. The airframes were to be rebuilds of the H-3/H-5 variant. Both were designed as night bombers and were to have two Jumo 211F-1s installed. The intention was for the H-8 to be fitted with cable-cutting equipment and barrage ballon deflectors on the leading edge of the wings. The H-7 was never built.”



The H-9 was intended as a trainer with dual control columns. The airframe was a H-1 variant rebuild. The powerplants consisted of two JumoA-1s or D-1s.[56] The H-10 was also designated to trainer duties. Rebuilt from an H-2 or H-3 airframe, it was installed with full defensive armament including 13 mm (0.51 in) MG 131 and 7.92 mm (0.312 in) MG 81Z machine guns. It was to be powered by two Jumo 211A-1s, D-1s or F-2s.”*

The last major production variant was the H-20, which entered into production in early 1944. It was planned to use two 1,305 kW (1,750 hp) Junkers Jumo 213E-1 engines, turning three-blade, Junkers VS 11 wooden-bladed variable-pitch propellers. It would appear this plan was never developed fully. Though the later H-22 variant was given the 213E-1 engines, the 211F-2 remained the H-20's main power plant. Heinkel and its licensees built 550 H-20s through the summer of 1944, while 586 H-6s were upgraded to H-20 standard.



In contrast to the H-11 and H-16, the H-20, equipped with two Jumo 211F-2s, had more powerful armament and radio communications. The defensive armament consisted of an MG 131 in an A-Stand gun pod for the forward mounted machine gun position. One rotatable Drehlafette DL 131/1C (or E) gun mount in the B-stand was standard and later, MG 131 machine guns were added. Navigational direction-finding gear was also installed. The Peil G6 was added to locate targets and the FuBI 2H blind landing equipment was built in to help with night operations. The radio was a standard FuG 10, TZG 10 and FuG 16Z for navigating to the target. The H-20 also was equipped with barrage balloon cable-cutters. The bomb load of the H-20 could be mounted on external ETC 1000 racks or four ESAC 250 racks. The sub variant H-20/R4 could carry twenty 50 kg (110 lb) bombs externally.”

*History from Wikipedia.



Now, let´s go to the model kit.

Checking the box, is the usual ICM flip top cardboard with a separate card lid showing the artwork.

Speaking of artwork, I really love ICM boxart.

 No idea who is the author but kudos to his work.

All the plastic sprue are in two plastic bags with the clear parts in other plastic bag inside.

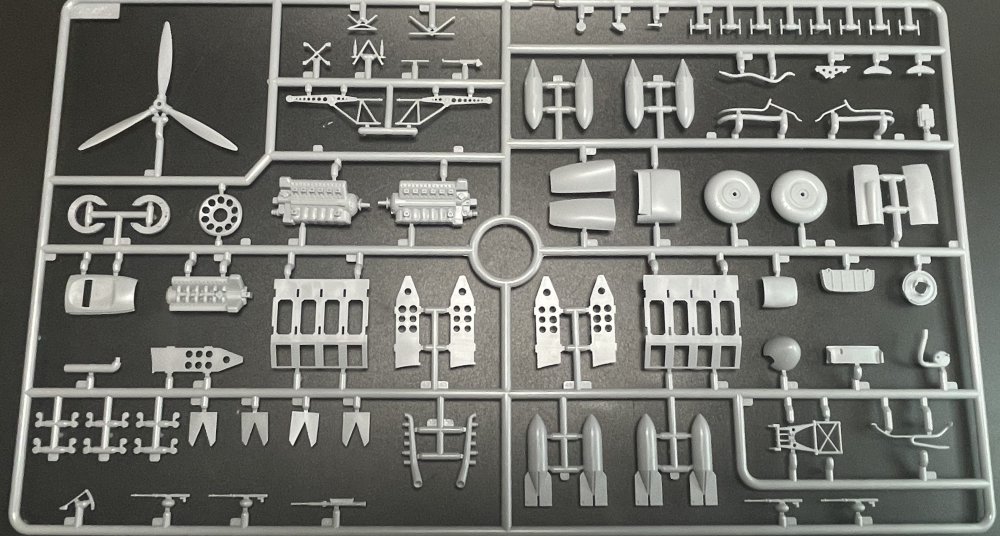

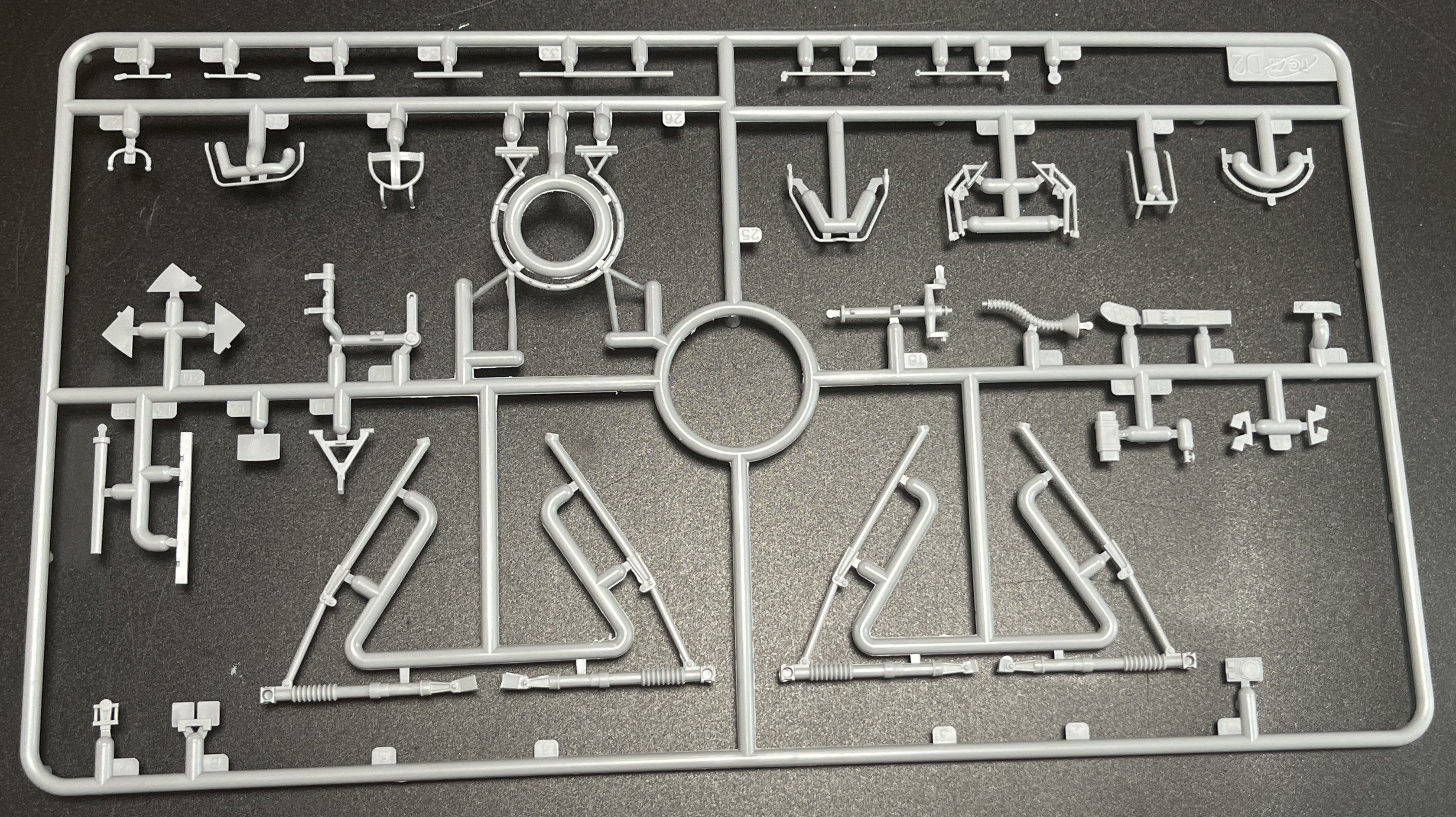

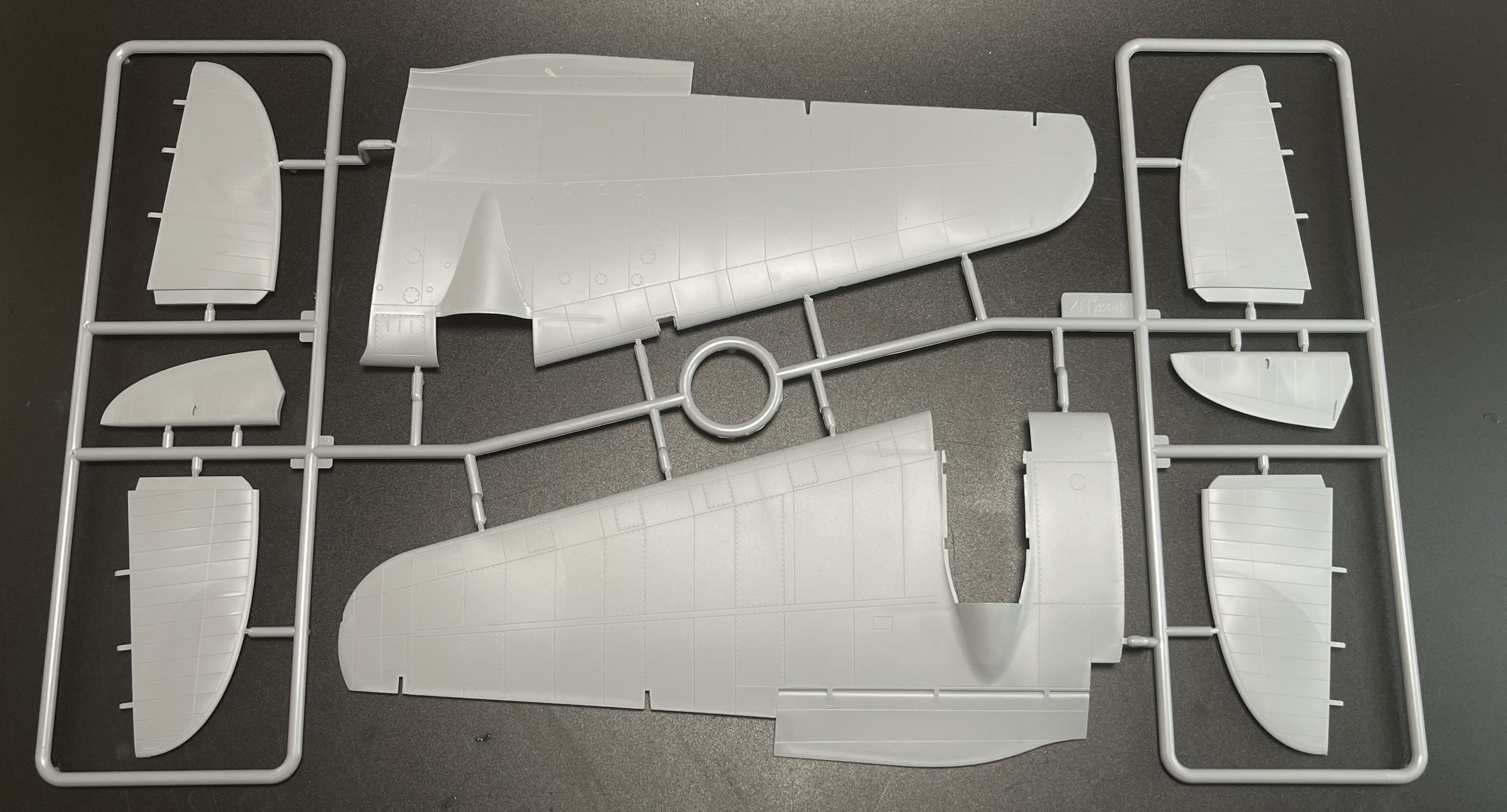

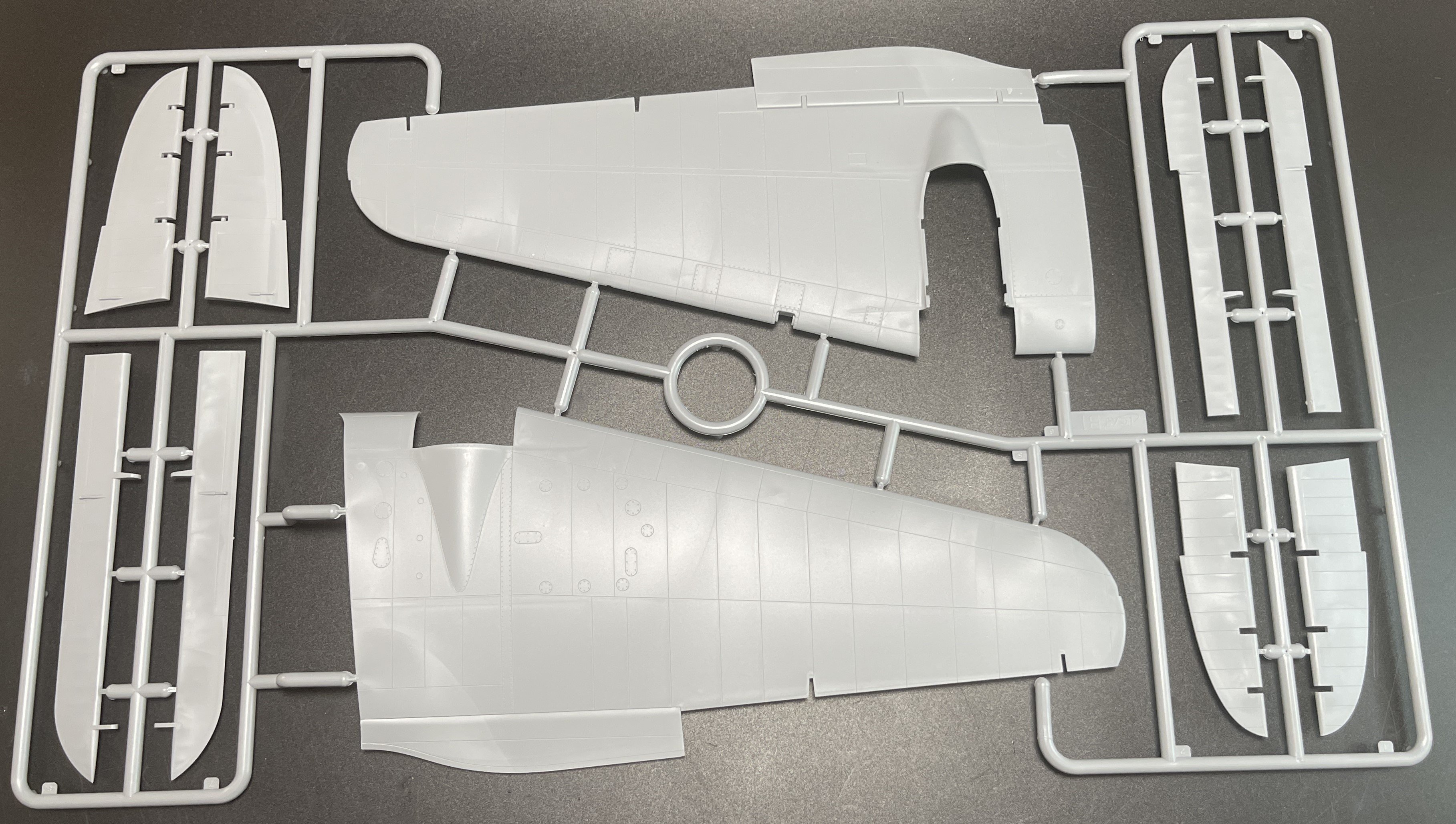

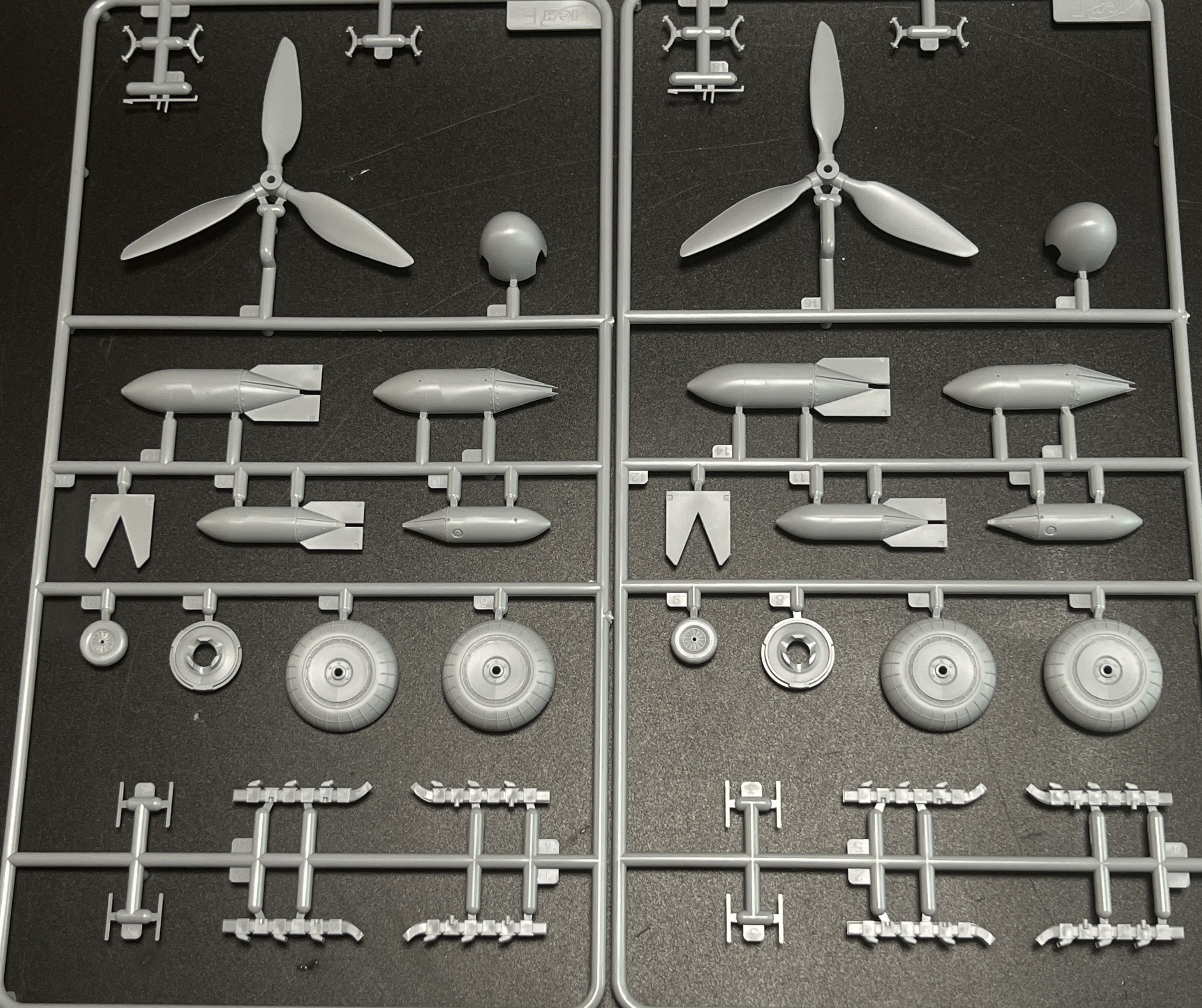

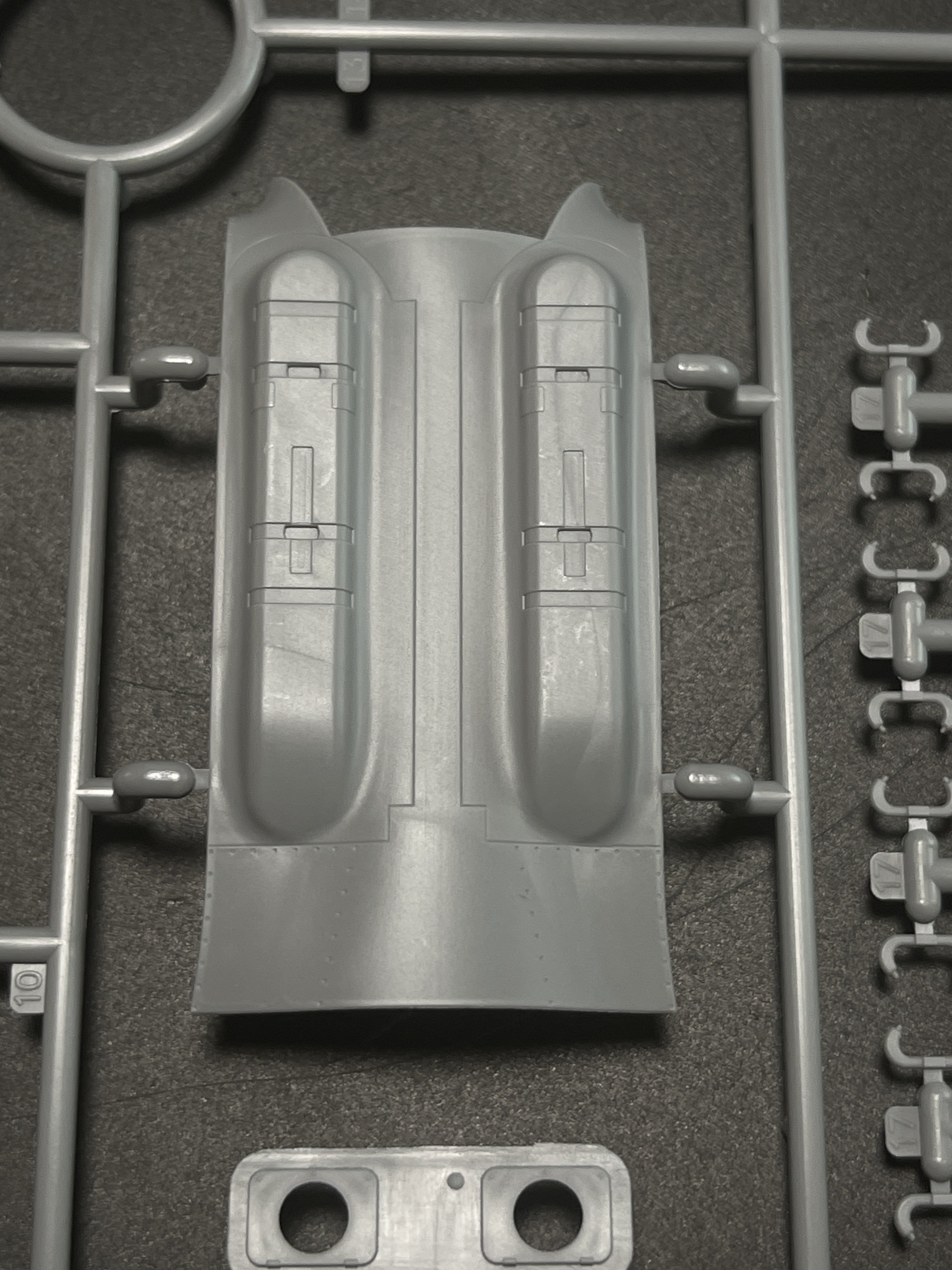

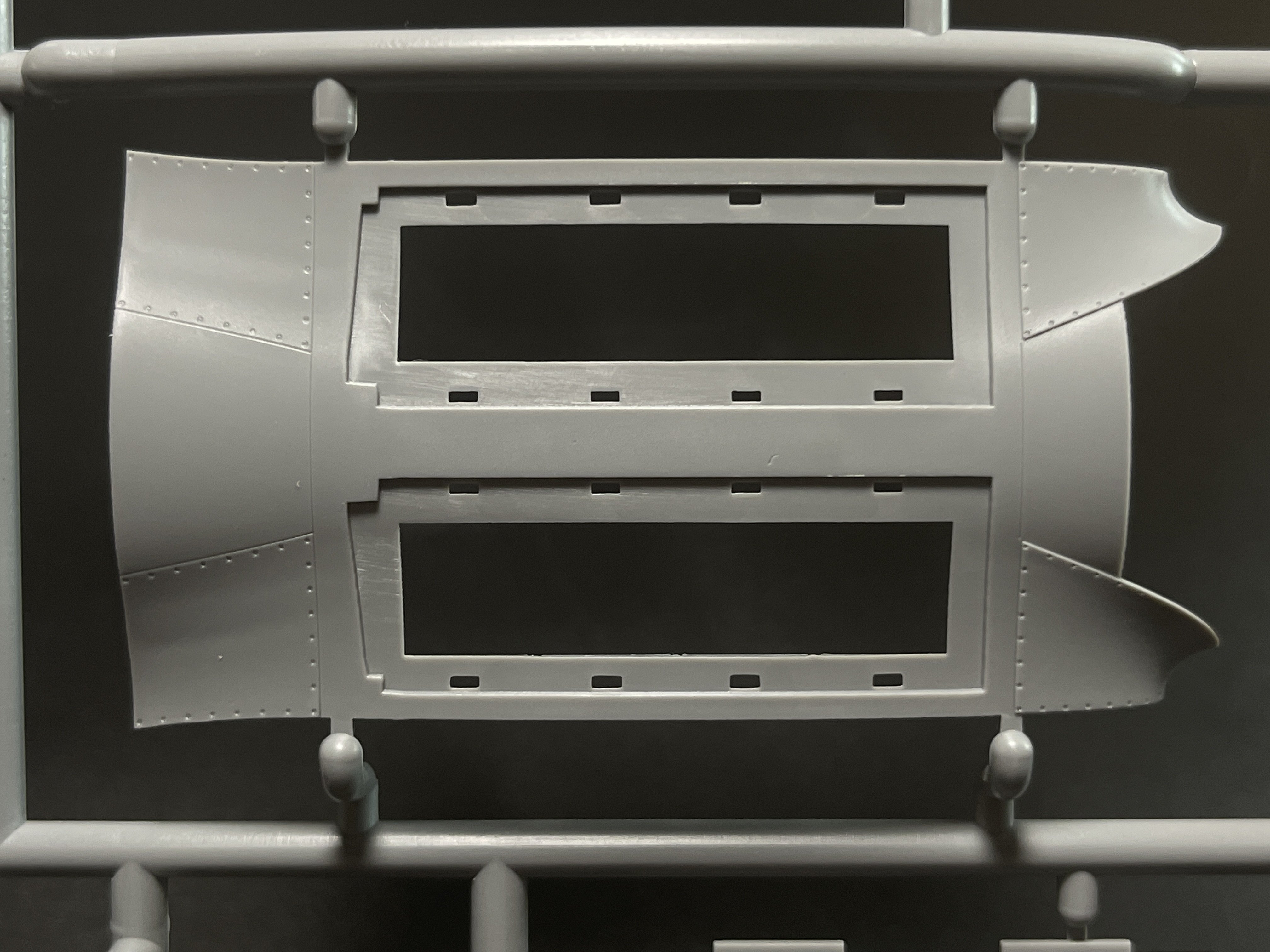

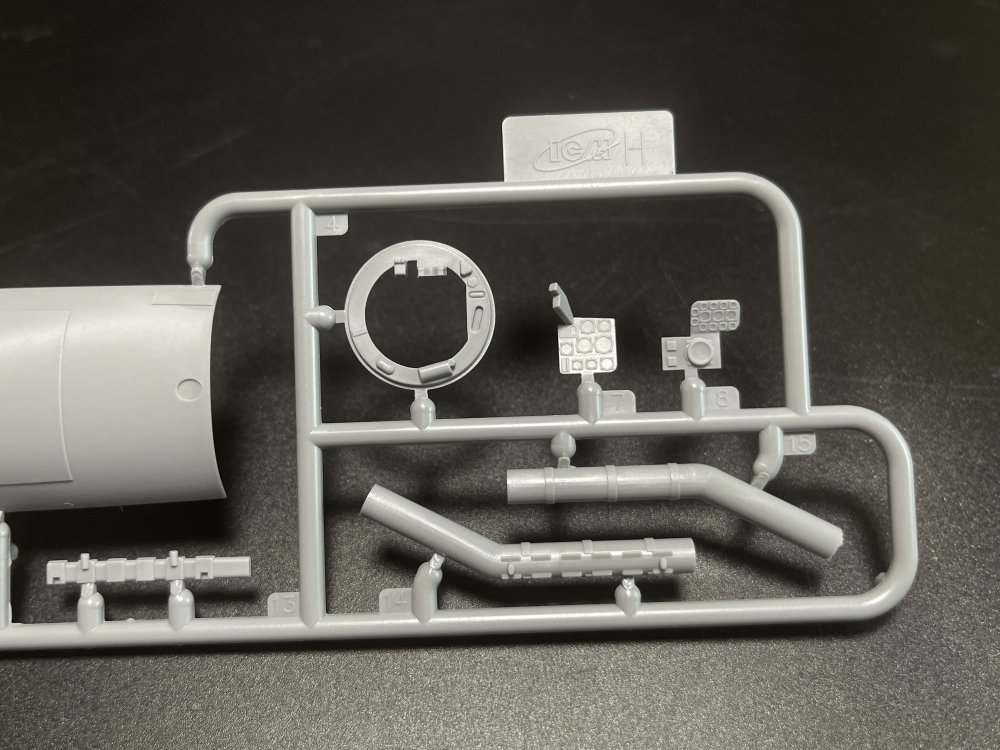

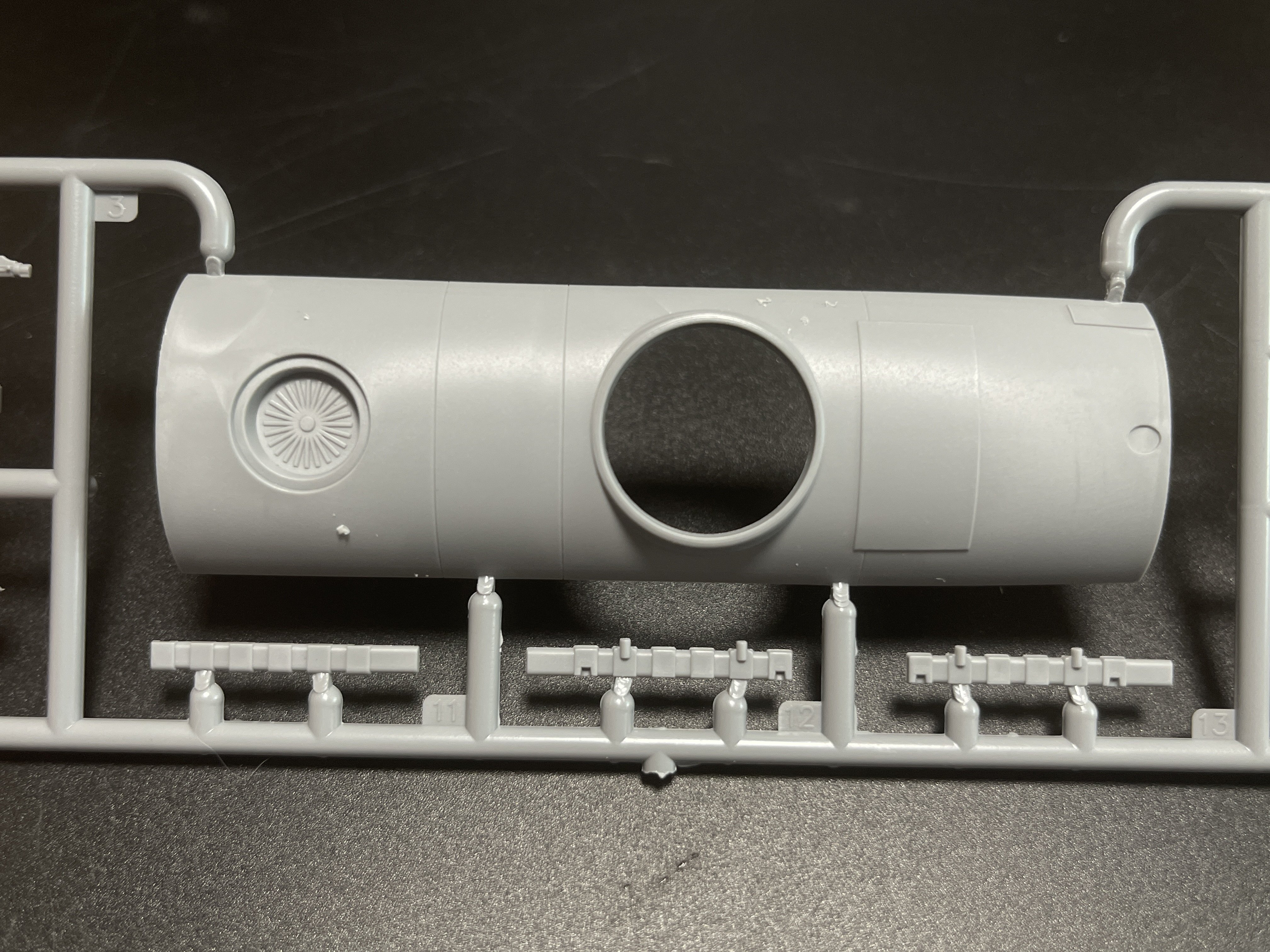

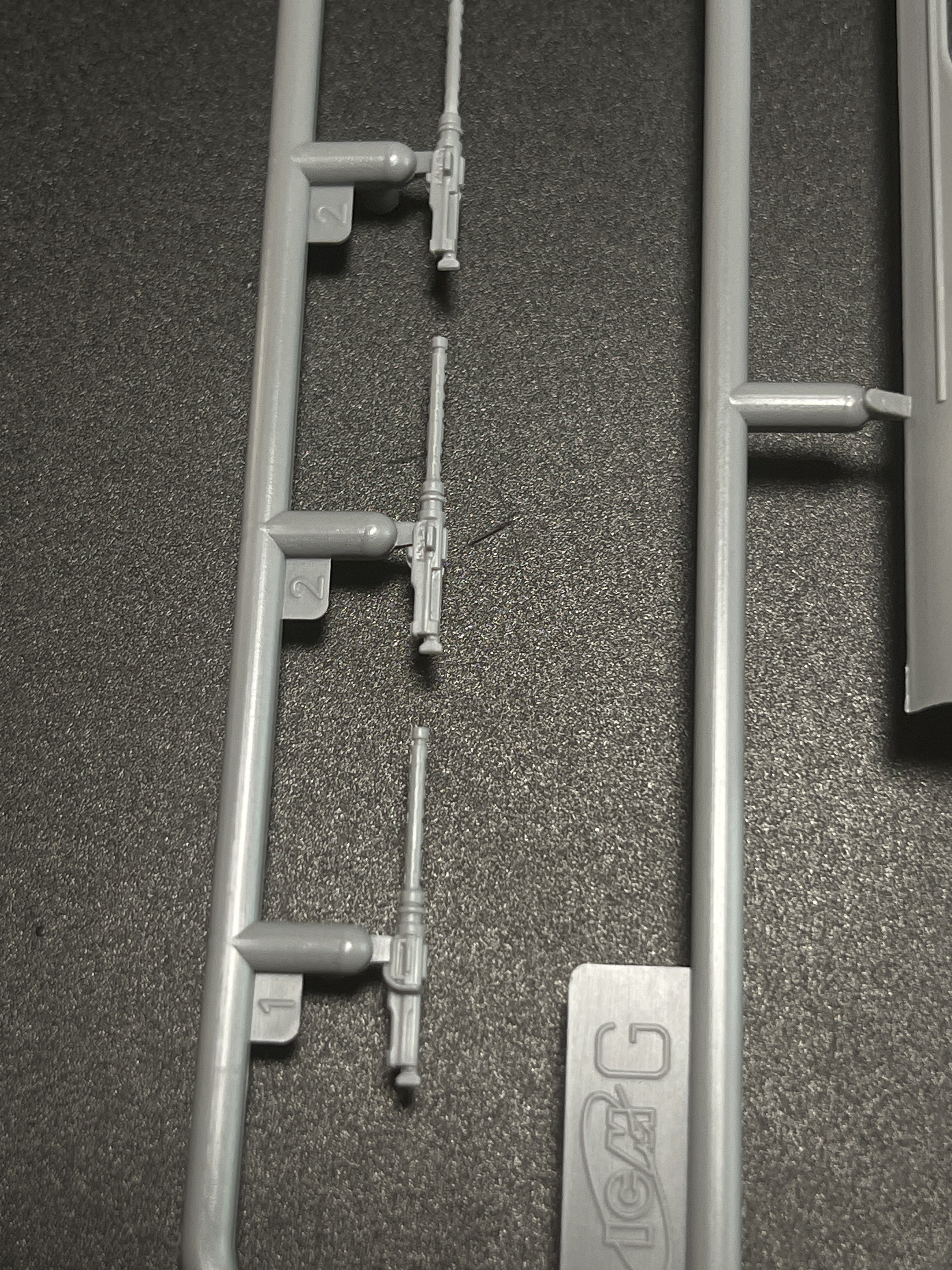

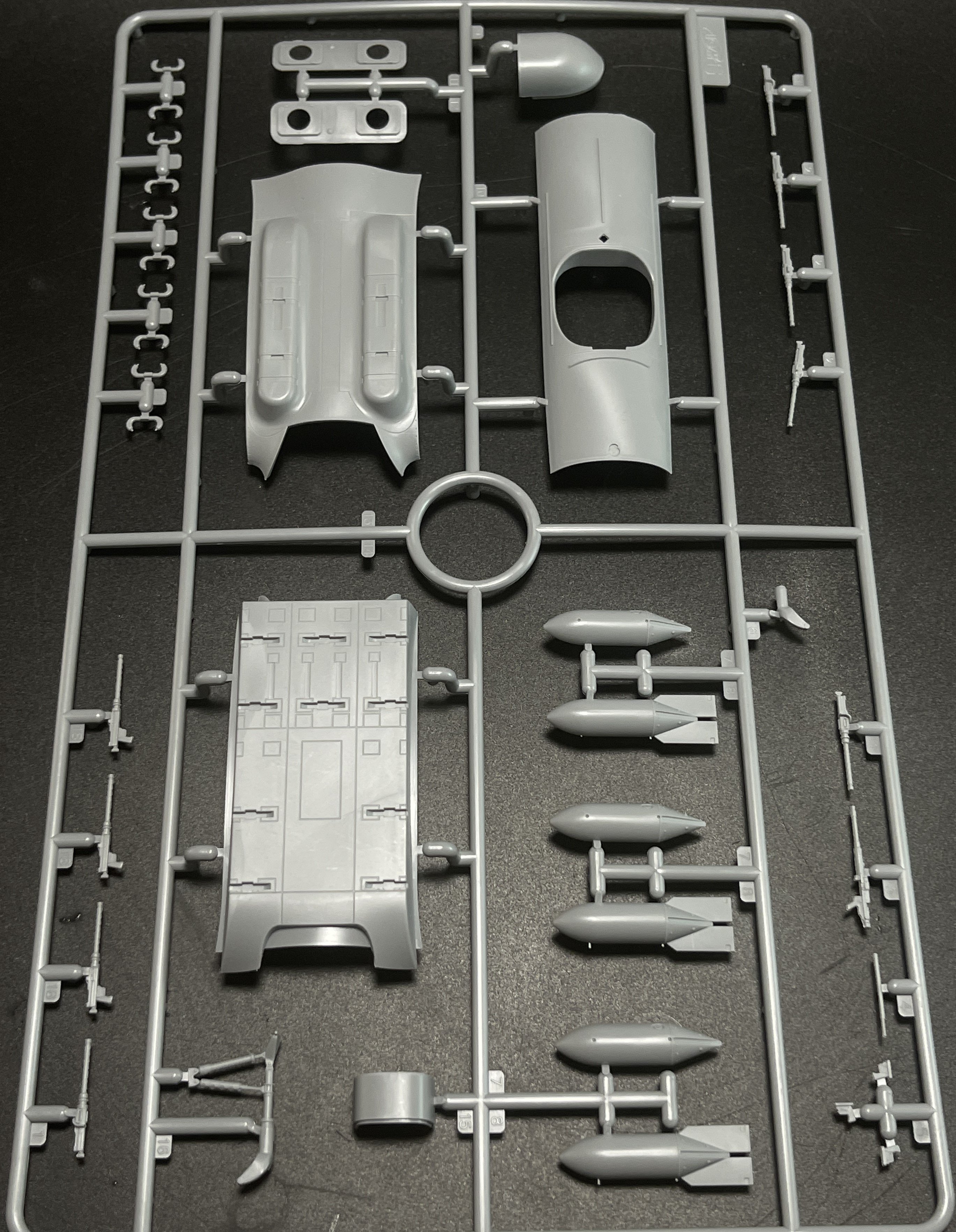

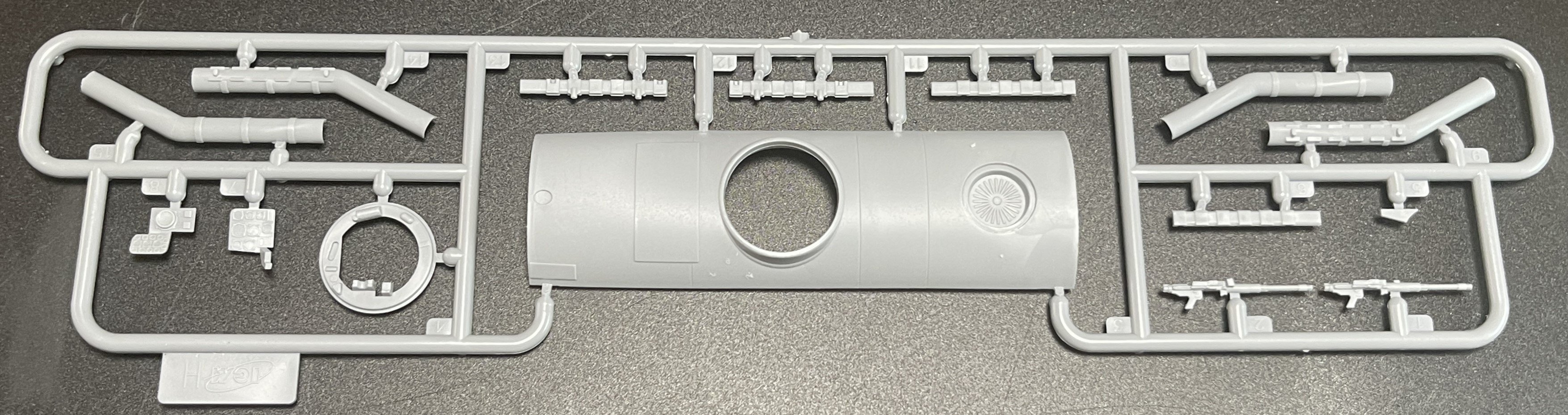

 Checking the plastic parts, the injection markings are very subtle and mainly in places that will be hard to see when build. Its evident that ICM made the home work to make modeler live easier.

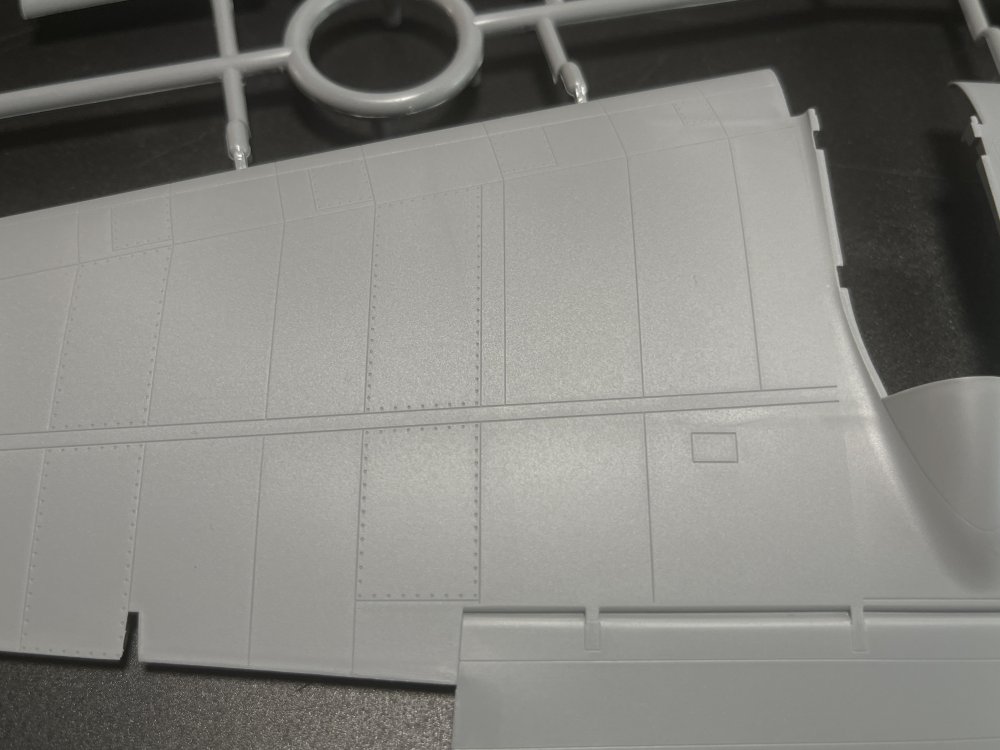

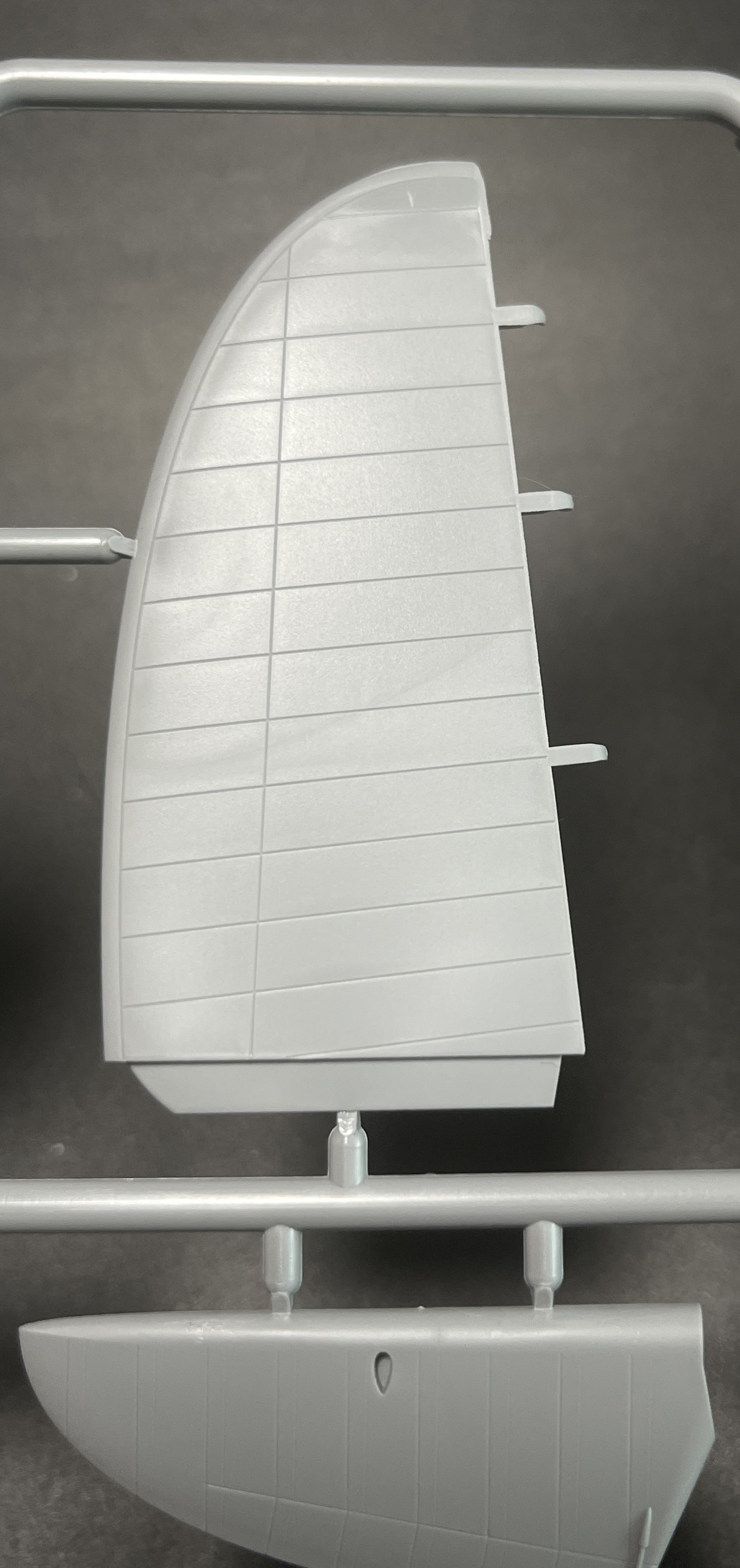

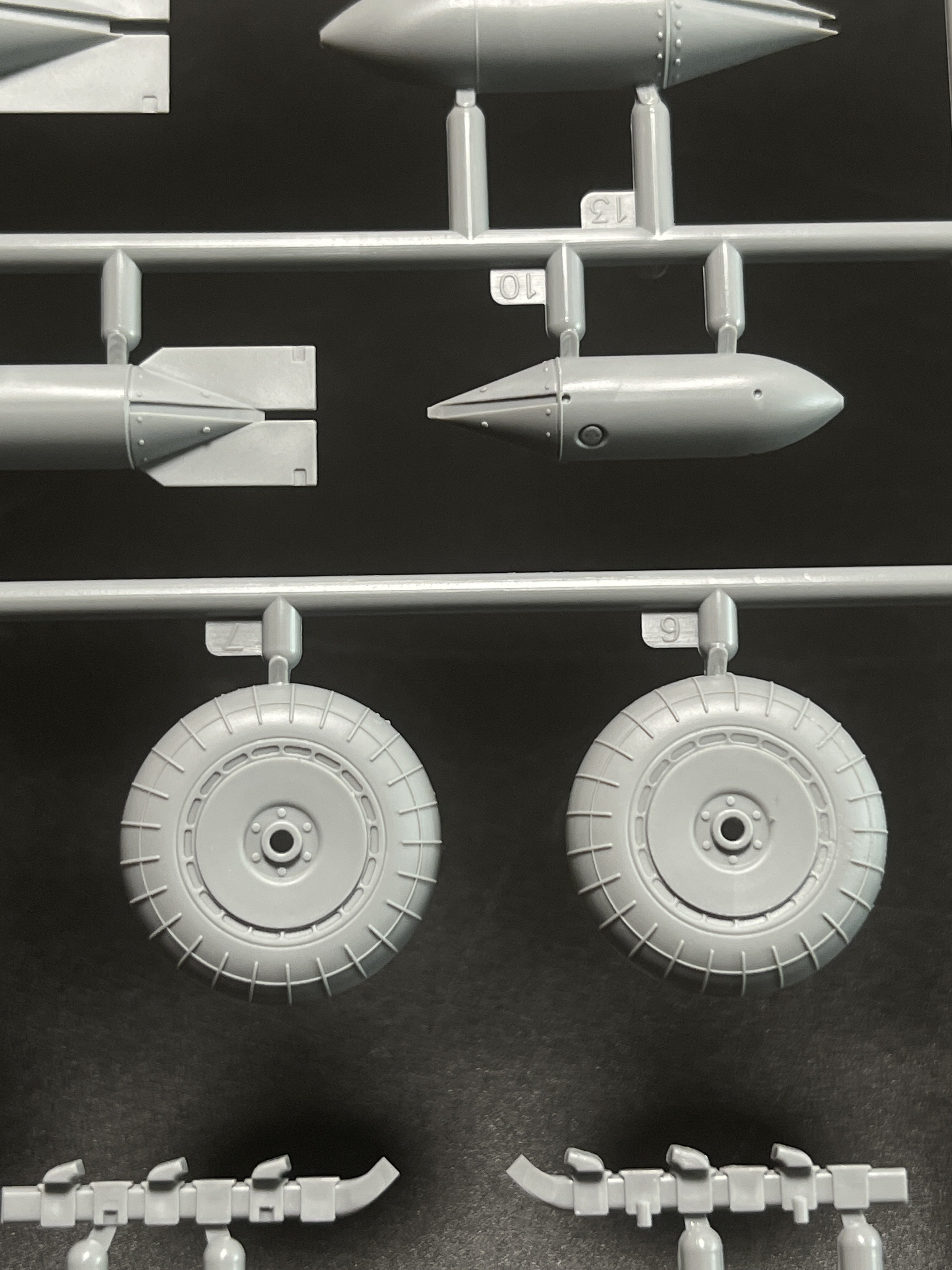

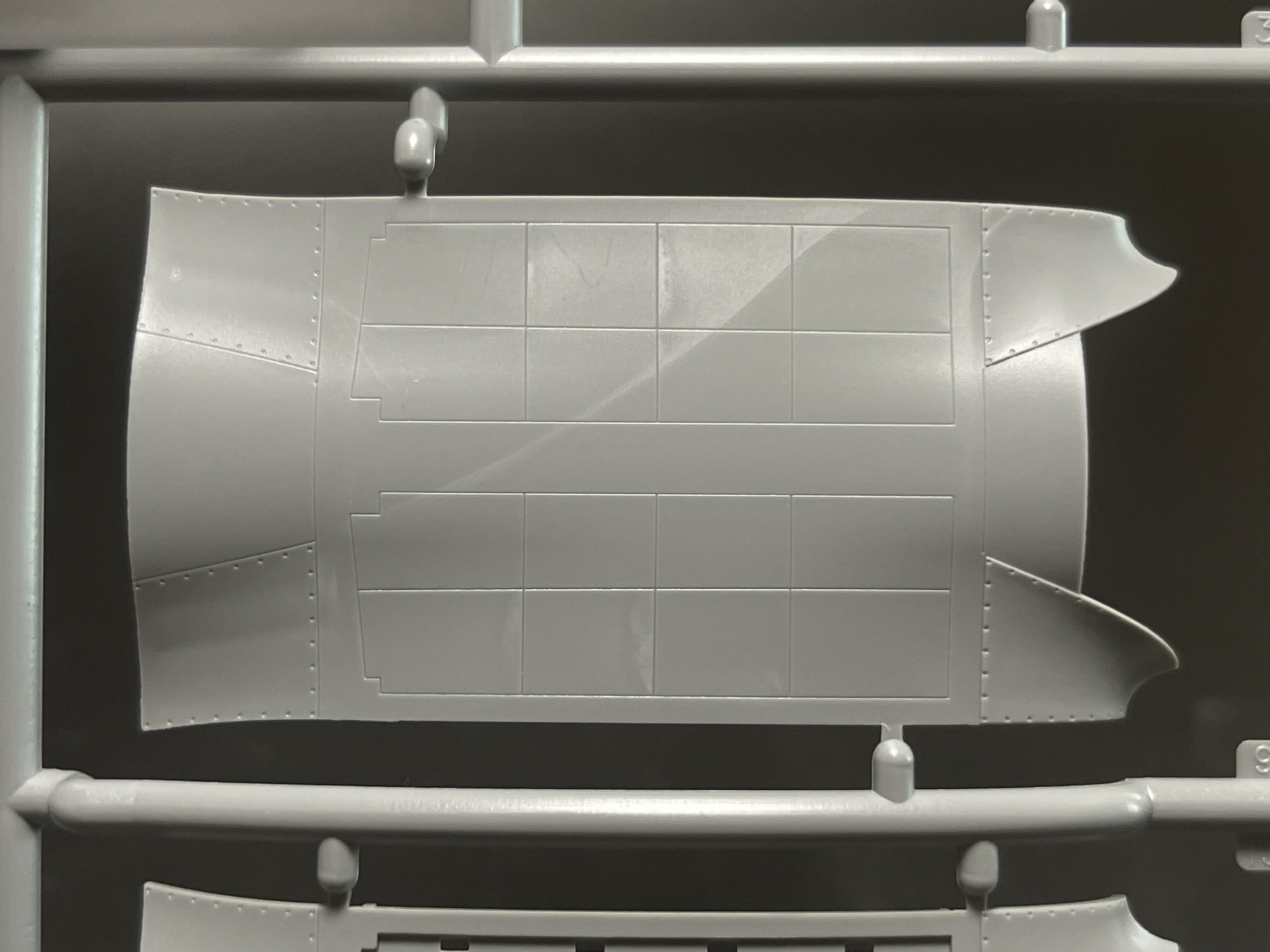

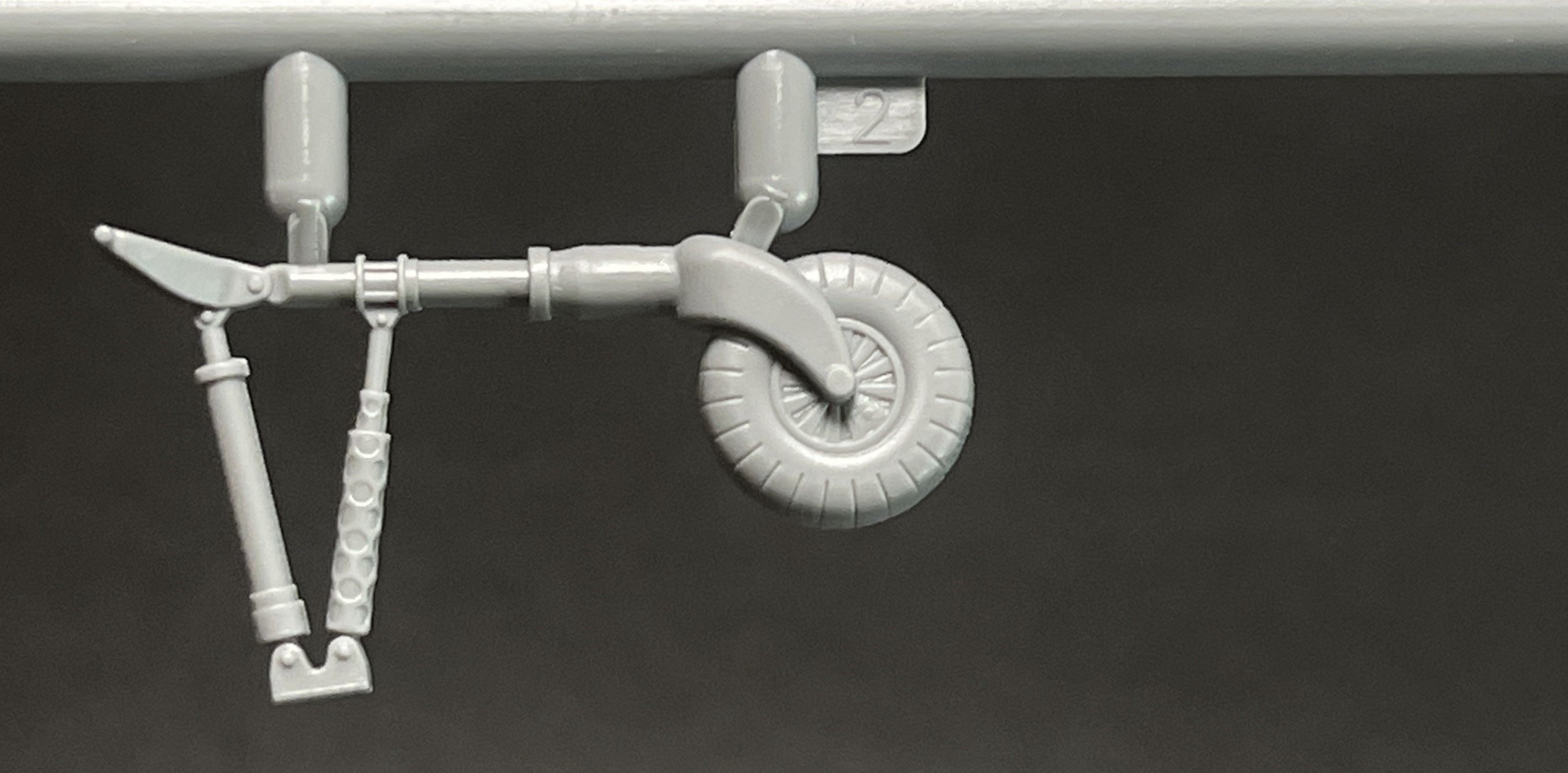

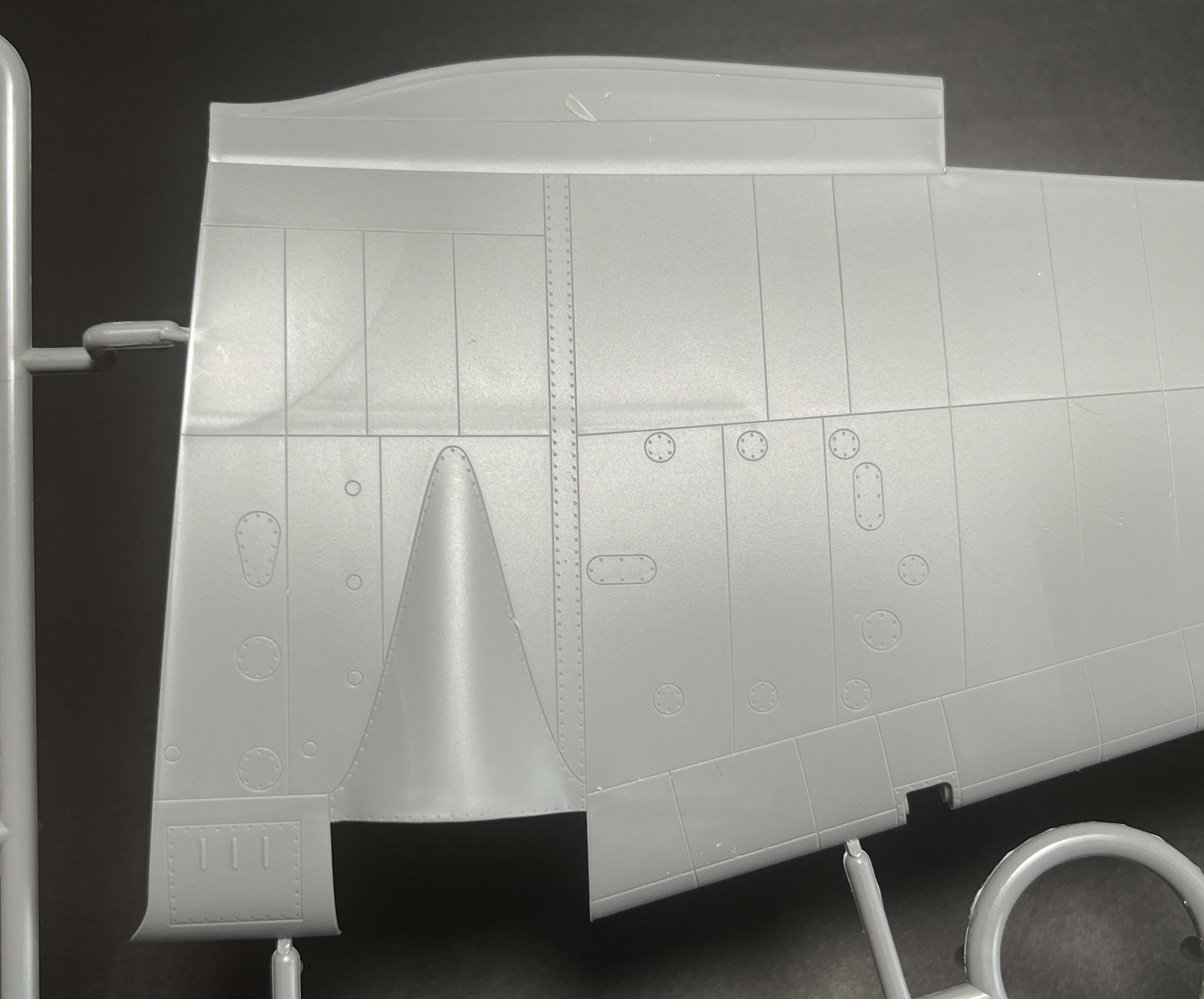

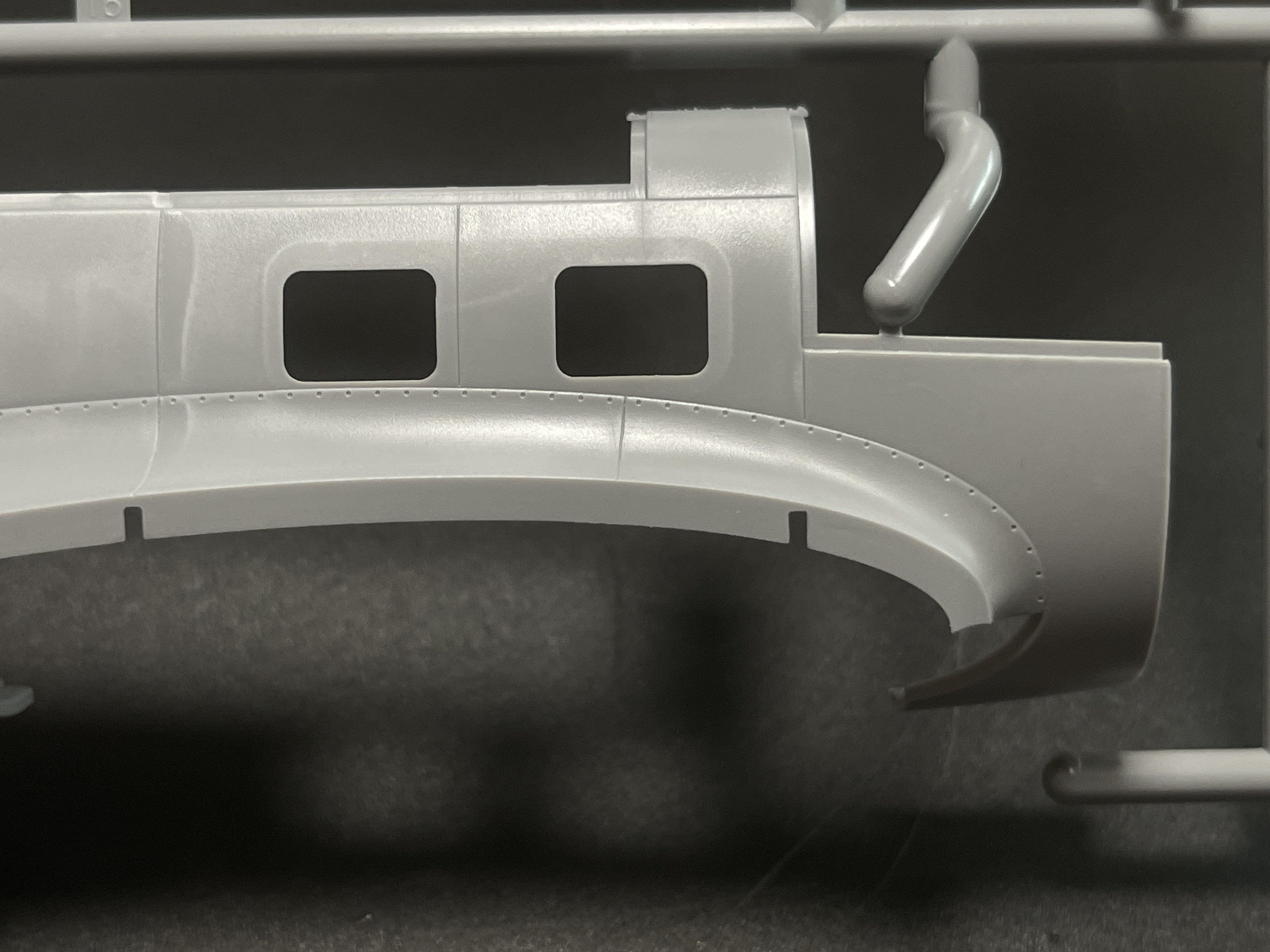

The actual ICM models kit have excellent recessed lines, rivets, and part quality. The surface textures are refined, with slightly proud wing root fairings and no extraneous rivets elsewhere

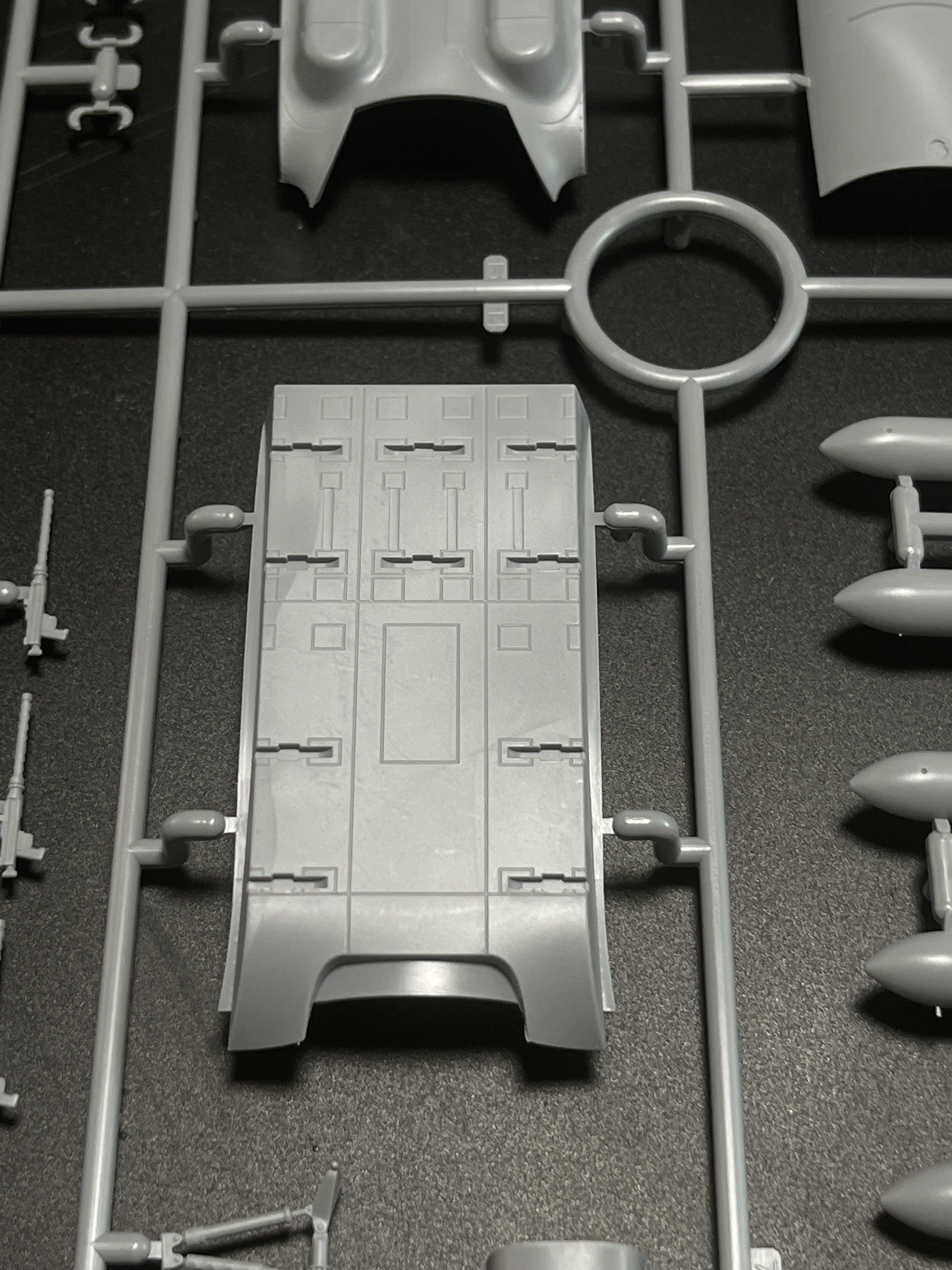

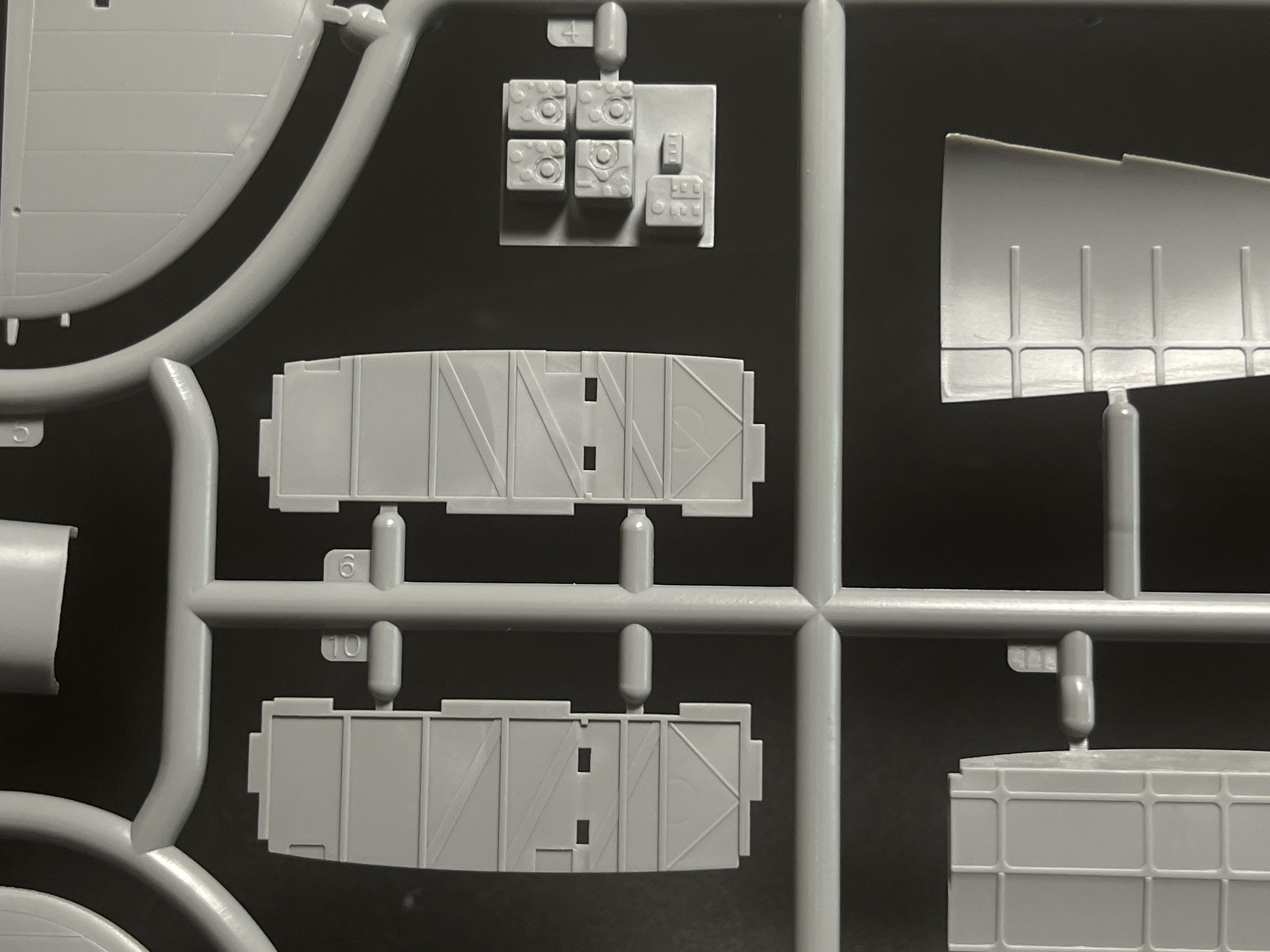

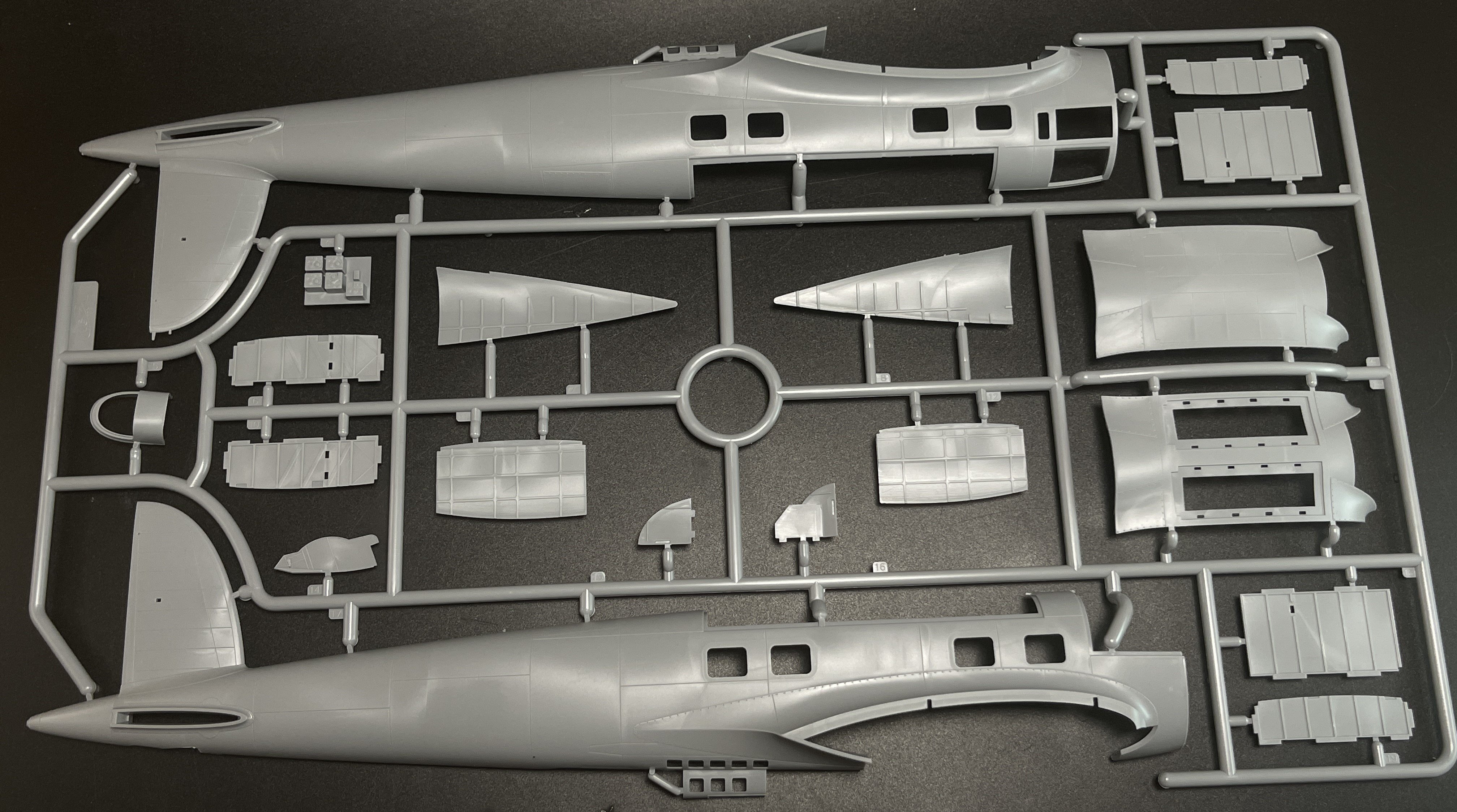

I`m very pleased to see all the internal structure present in the fuselage halves and the internal detail.

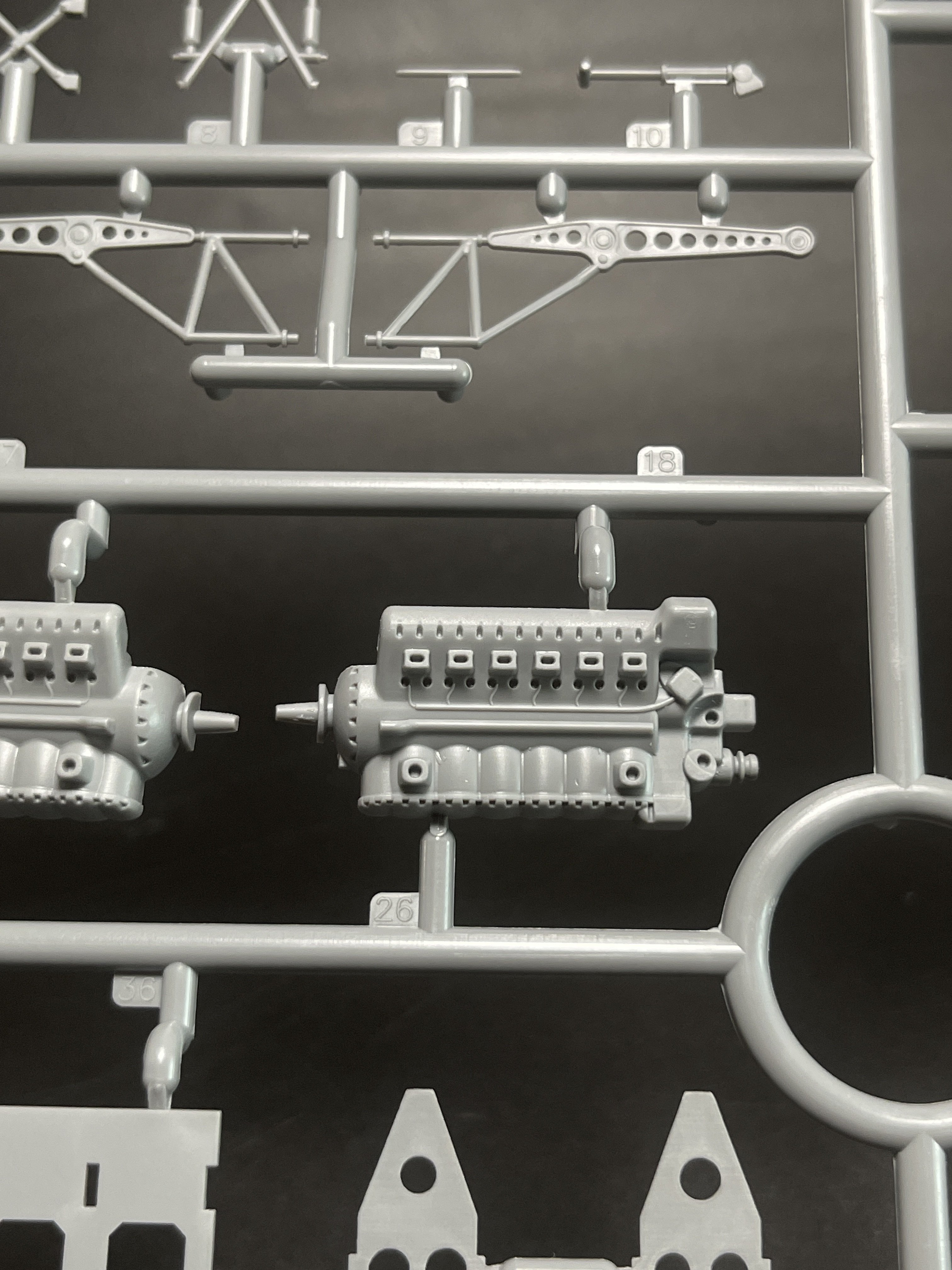

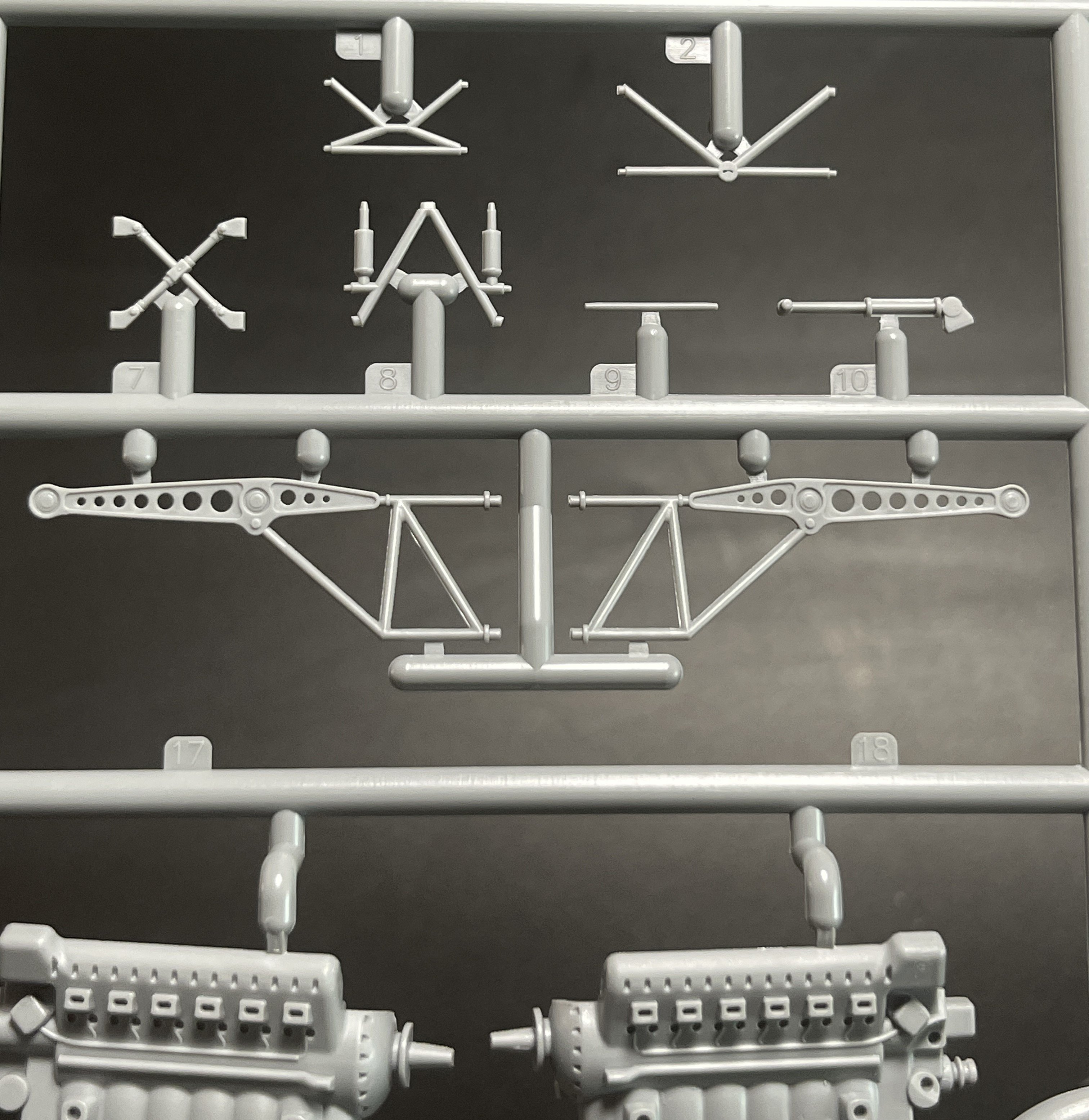

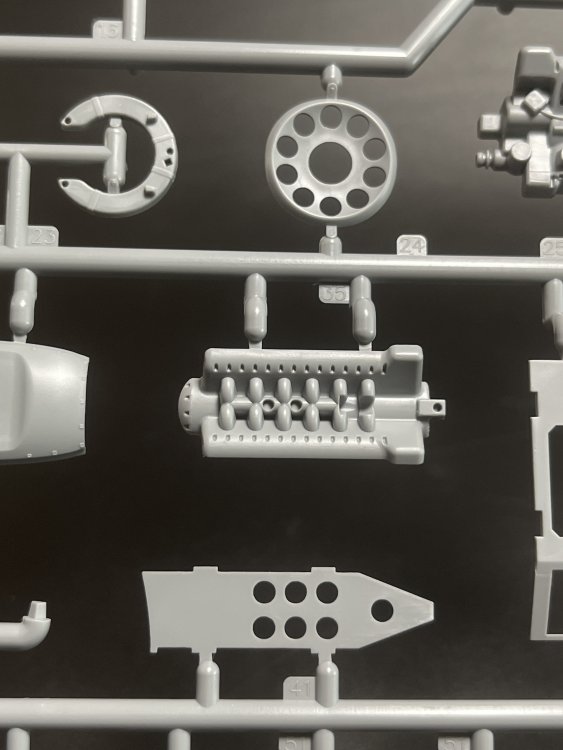

As in others He-111, here there`s also two full detail engines straight from the box that you can used like that and left it open or hyperdetailed it with some plugs and wires and simple close all up. It`s really up to the modeler.

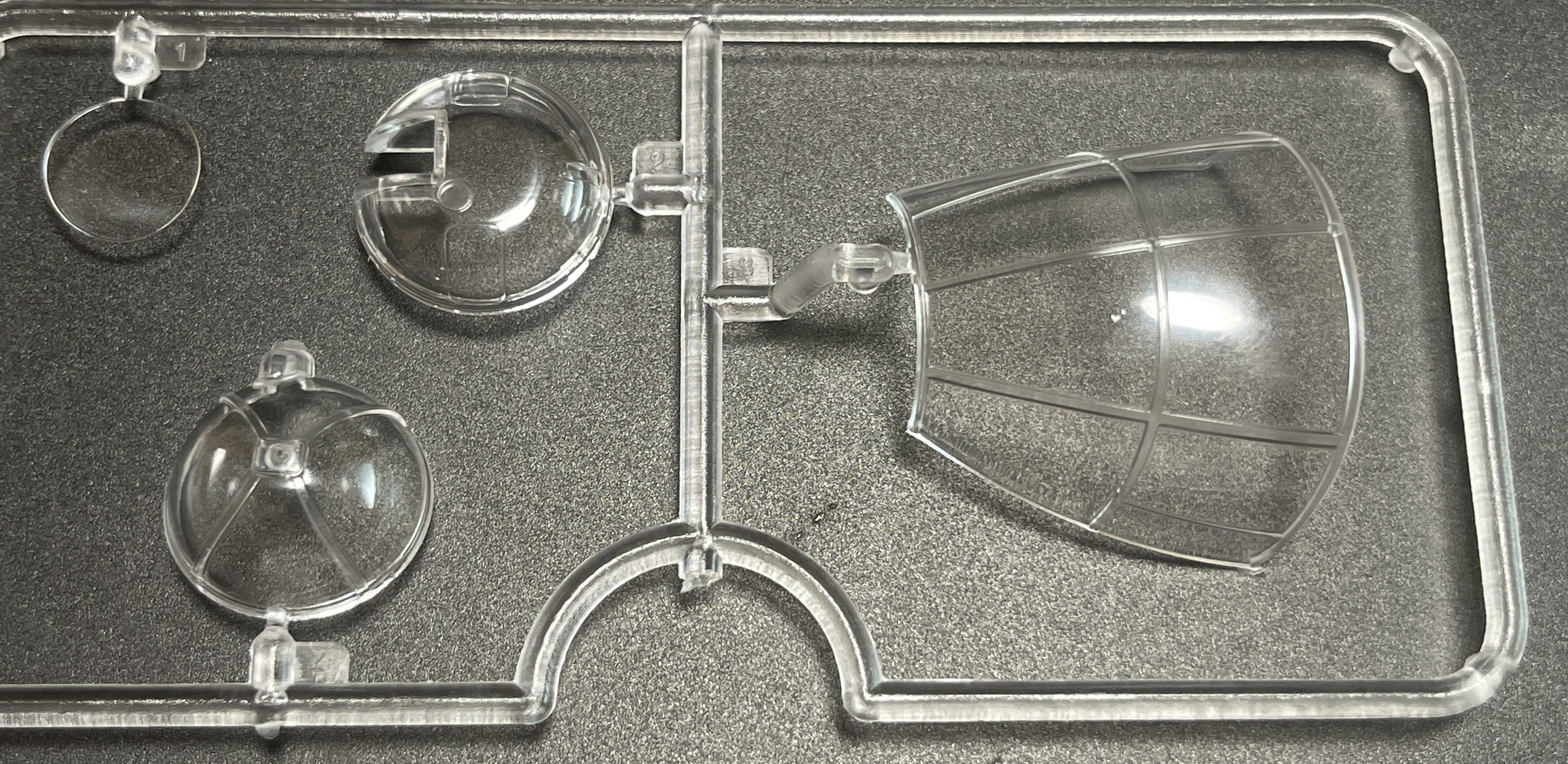

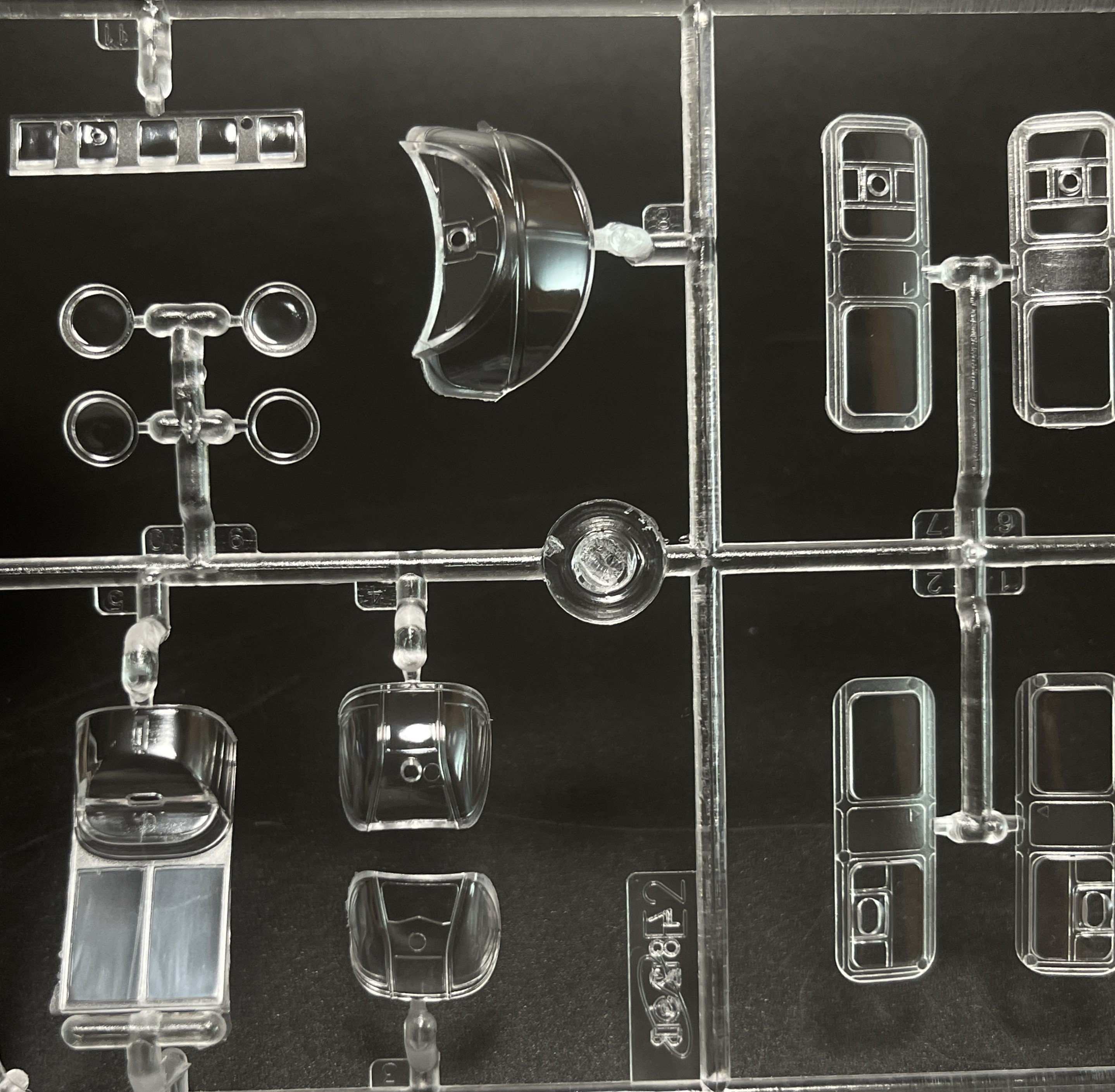

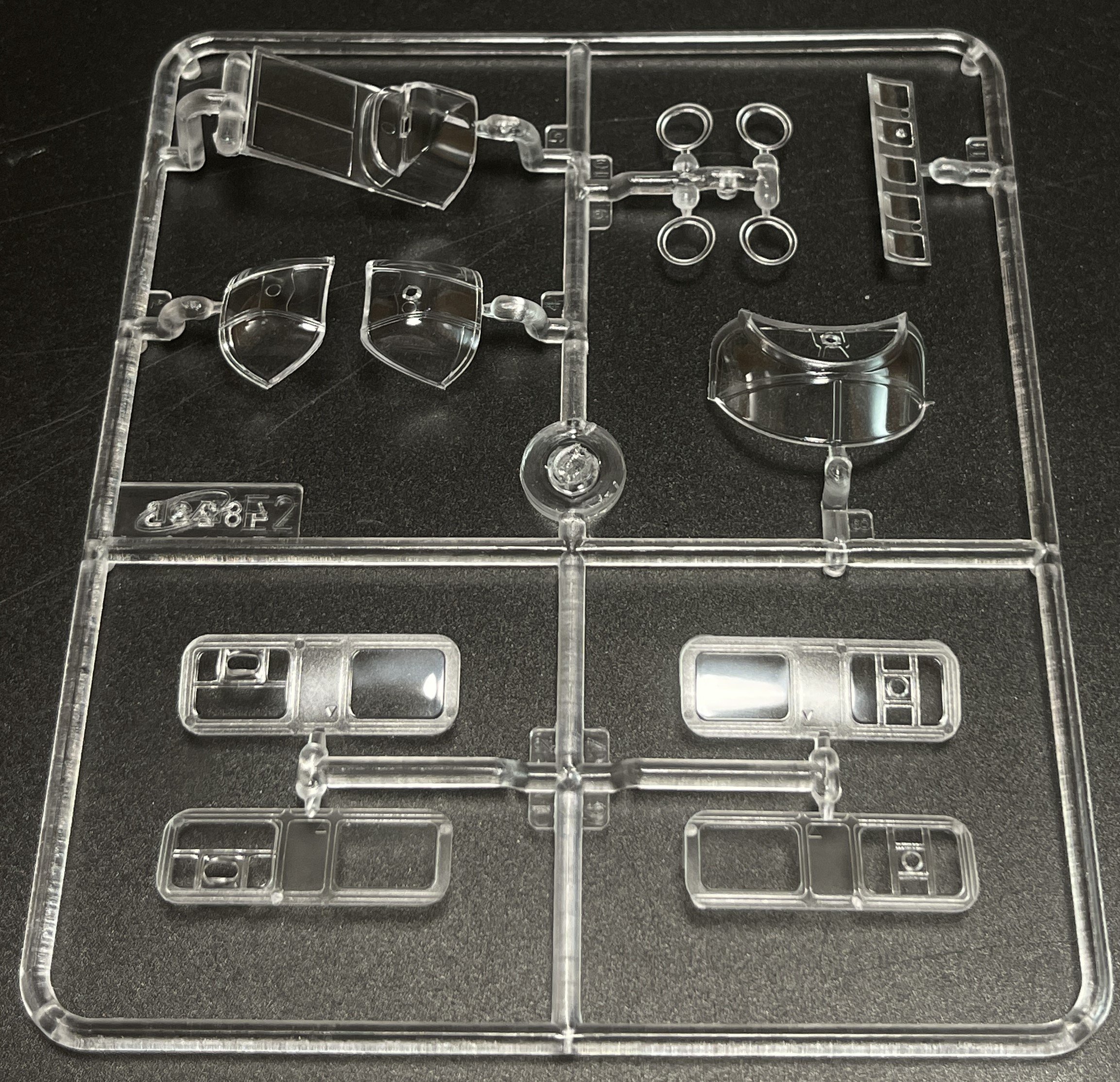

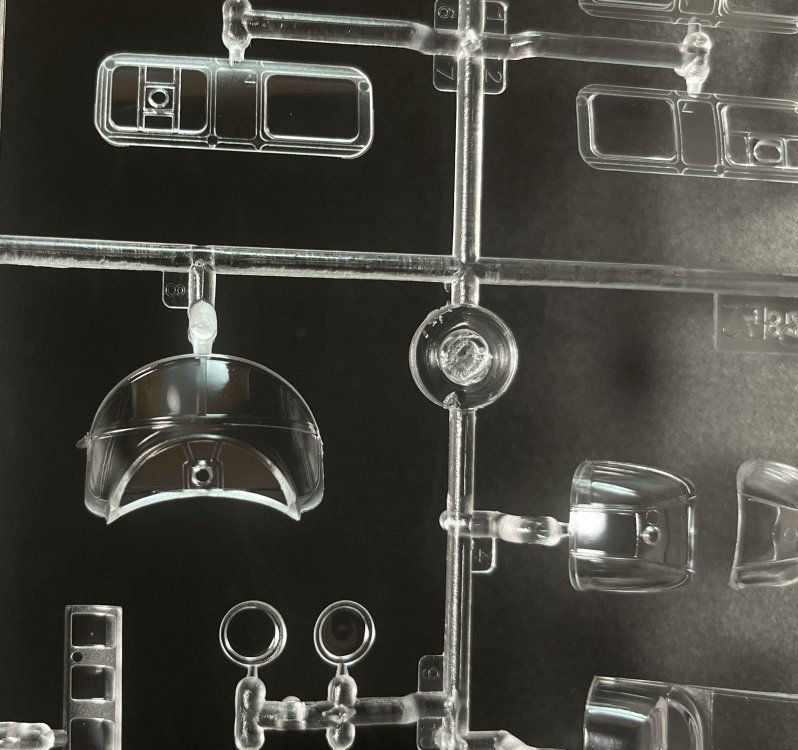

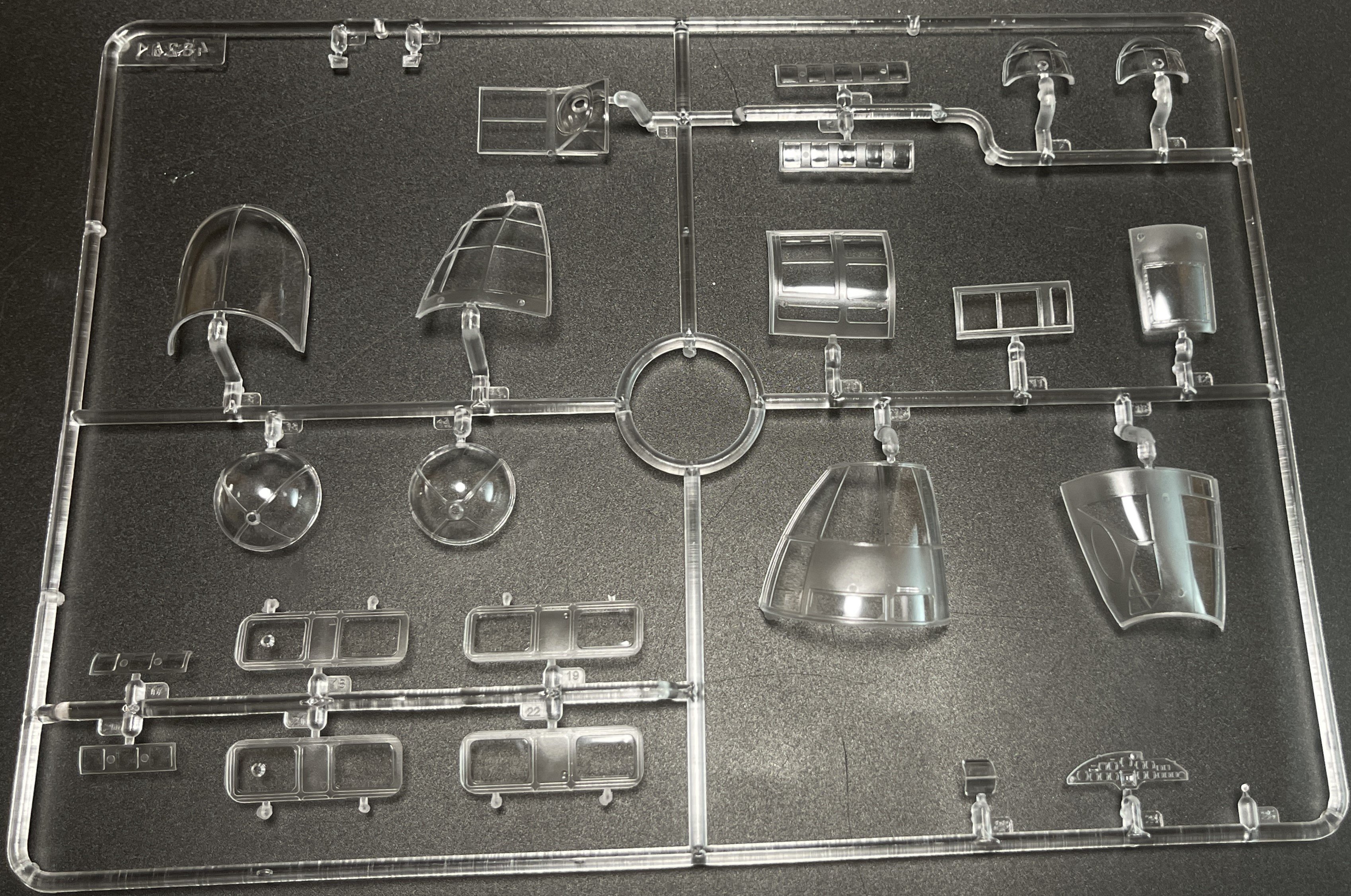

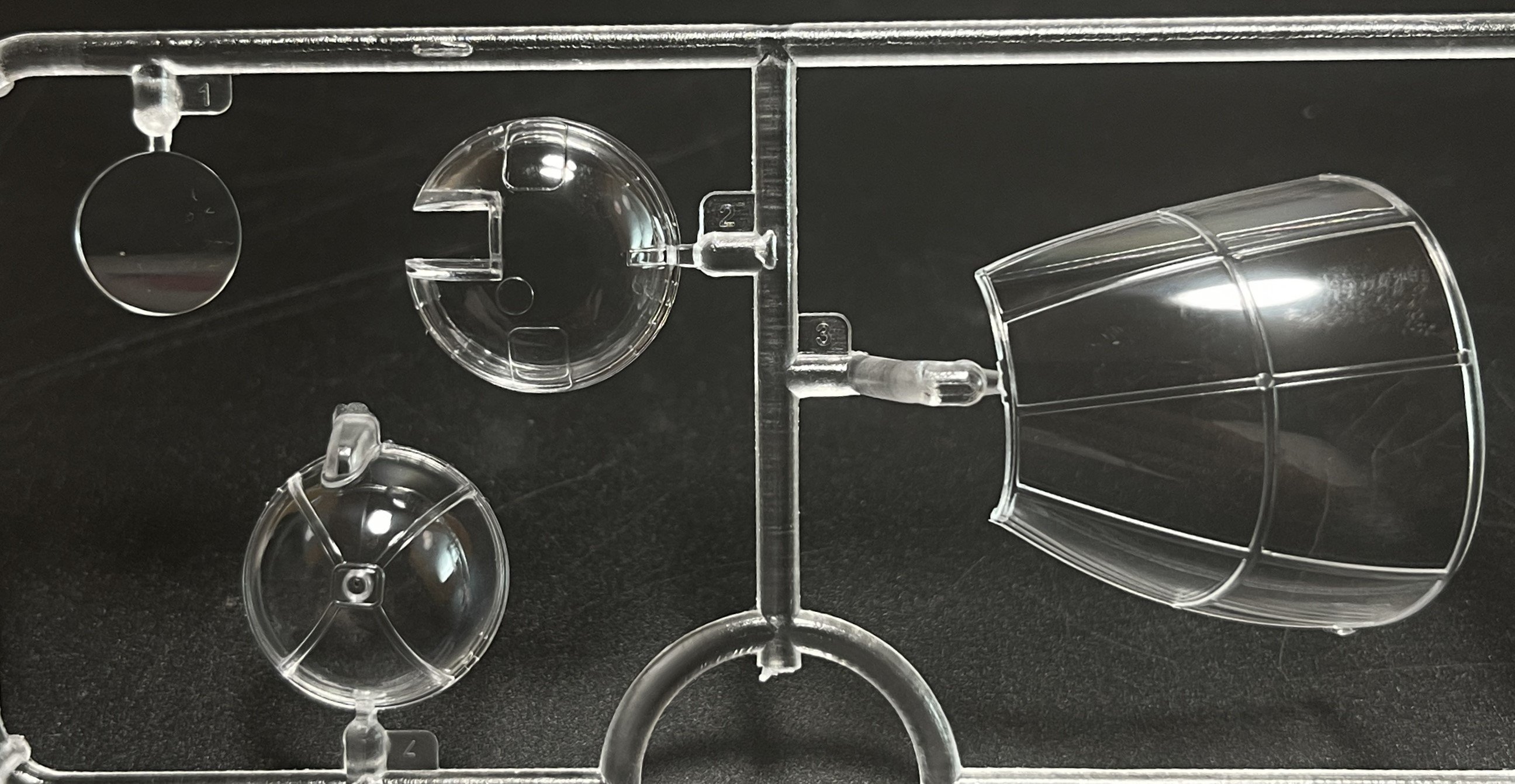

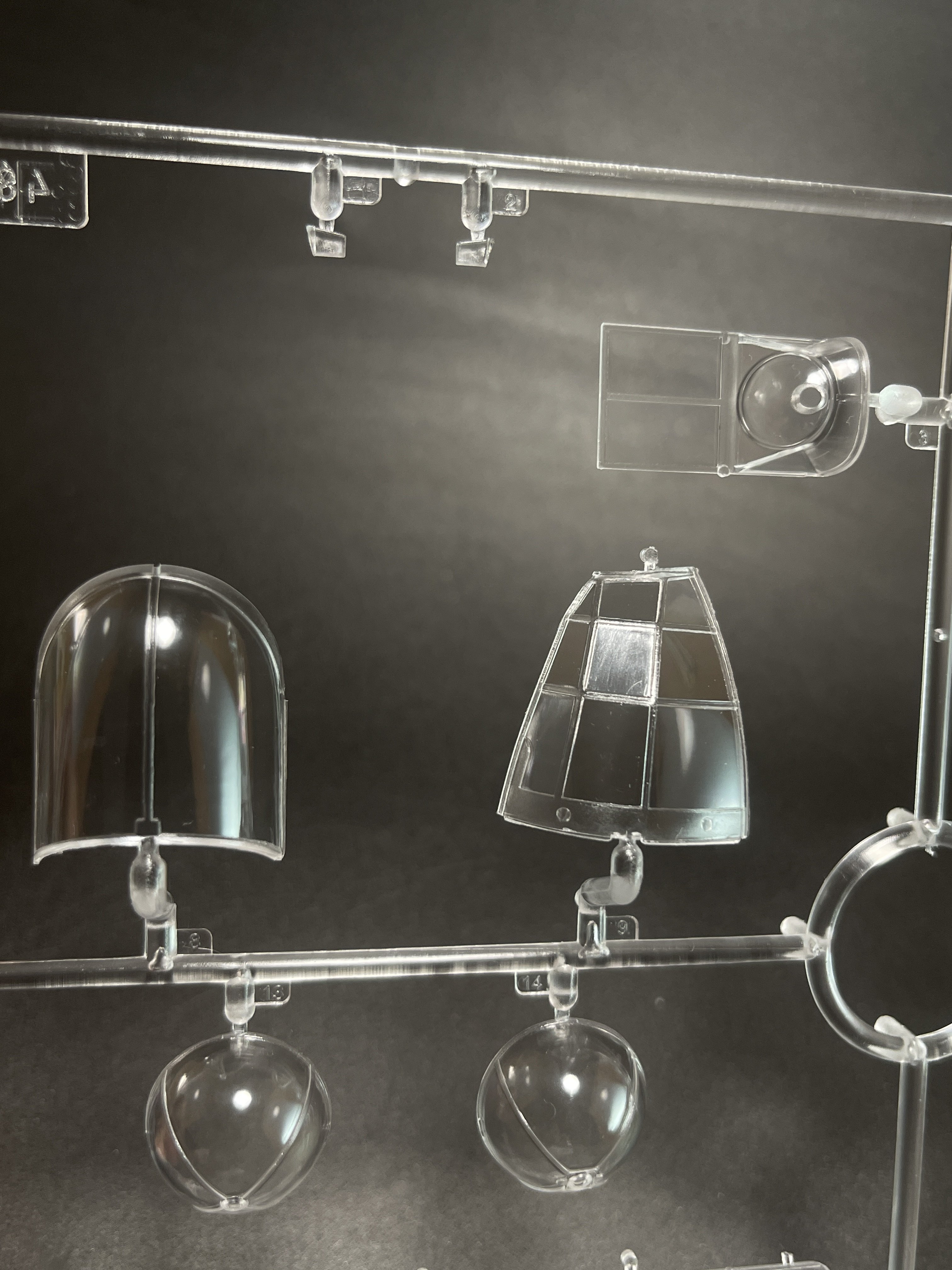

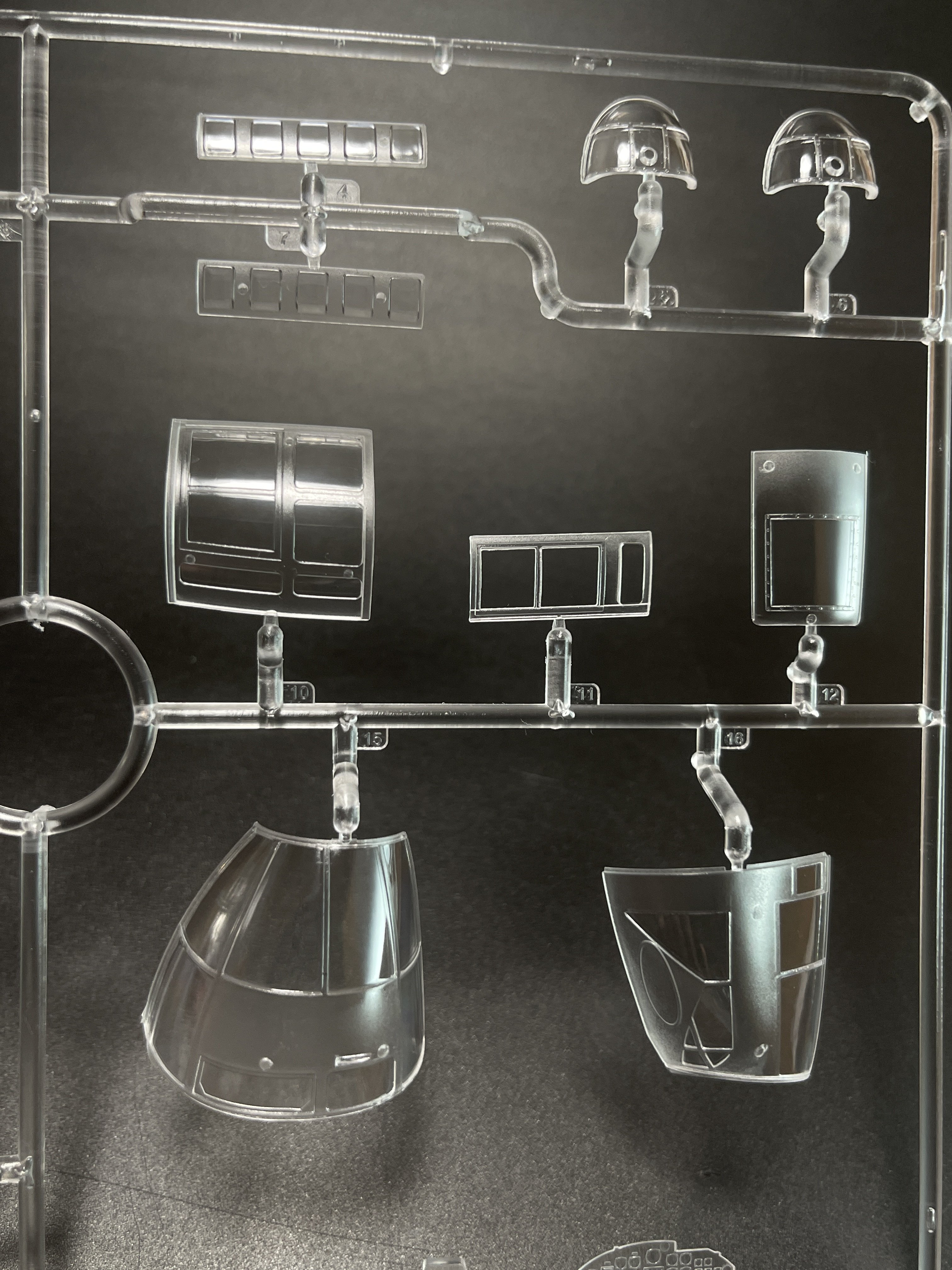

As for the clear parts, once again    are clear and free from distortion, allowing for excellent visibility of interior details. I have had the pleasure of reviewing several ICM models kits and no one had the clear parts damage or broken. And every single one were perfect crystal clear.

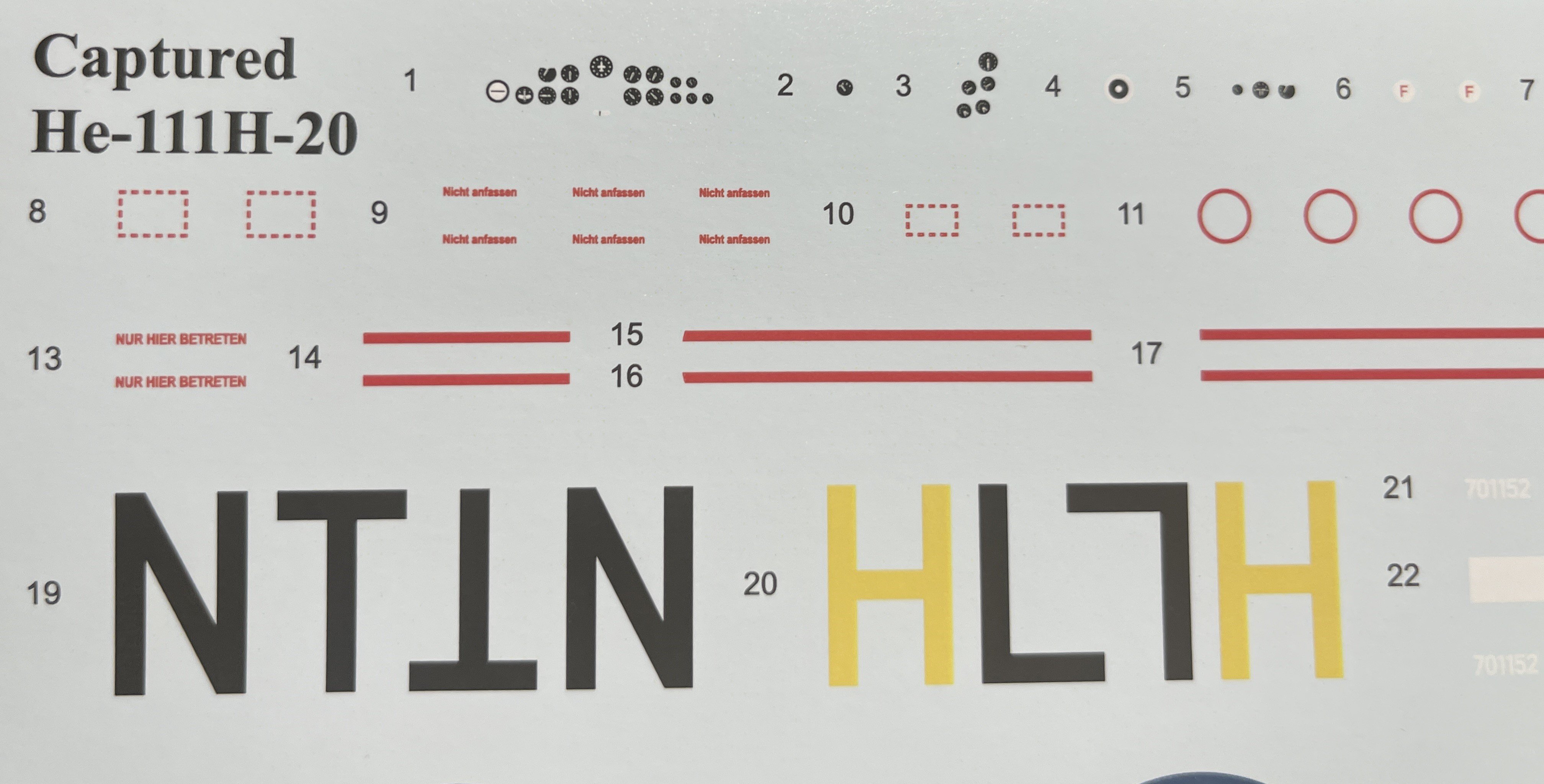

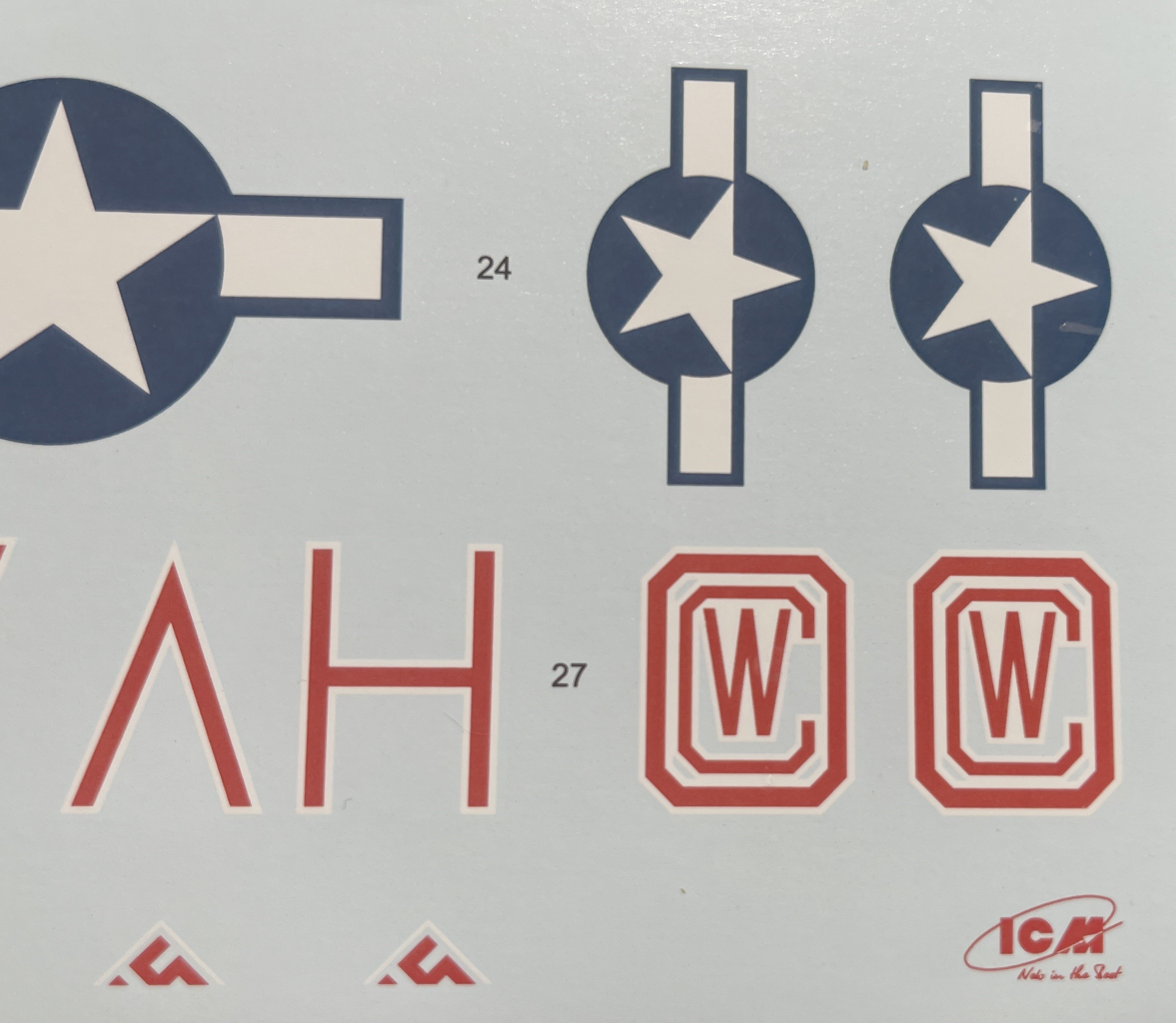

The decal sheet is compact but well-printed, with fine registration and minimal carrier film. Colors appear slightly pale in photos but should perform well with proper application.







Two marking options are provided:

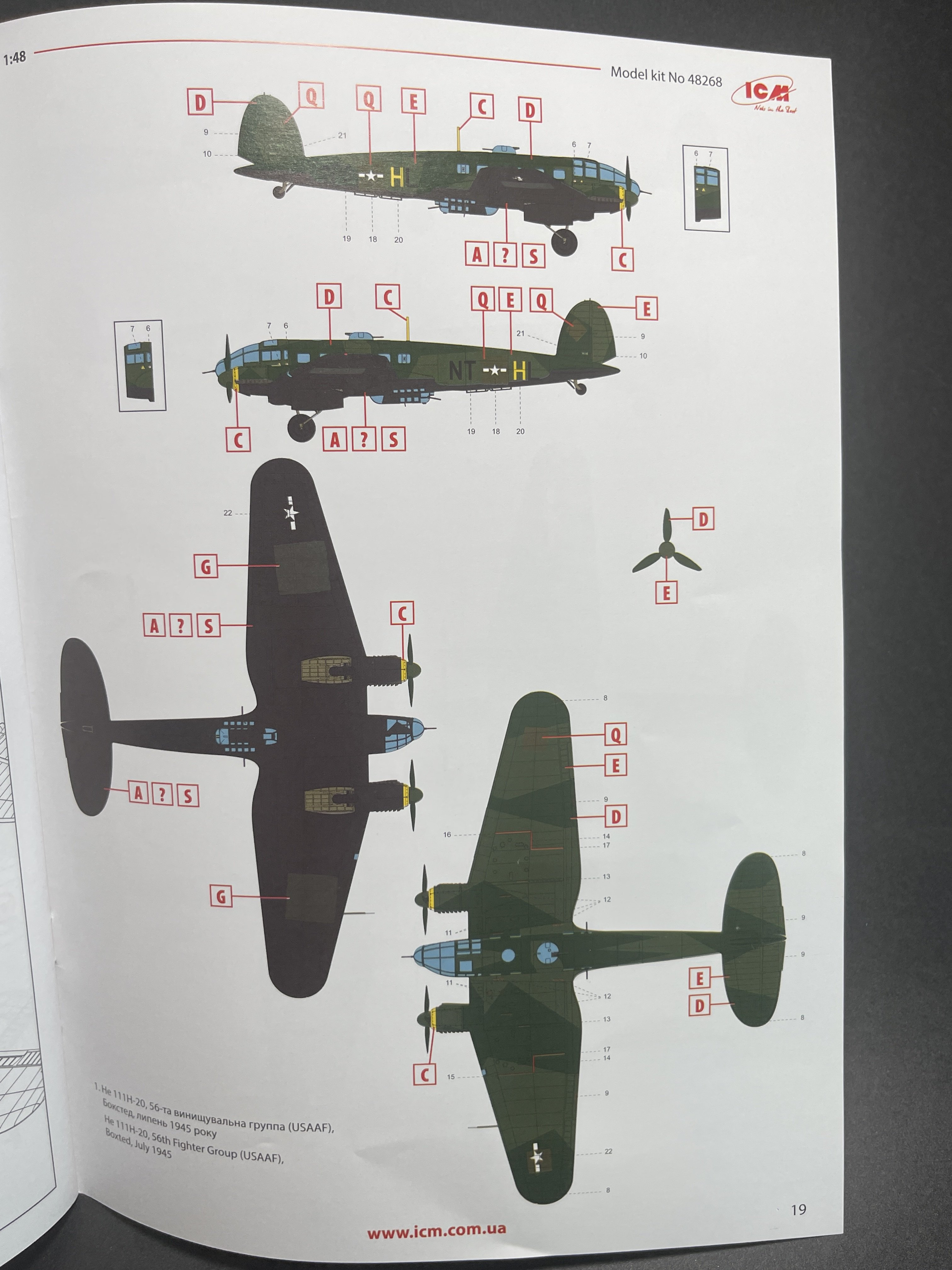

- He-111 H-20, 56^th Fighter Group (USAAF) Boxted, July 1945

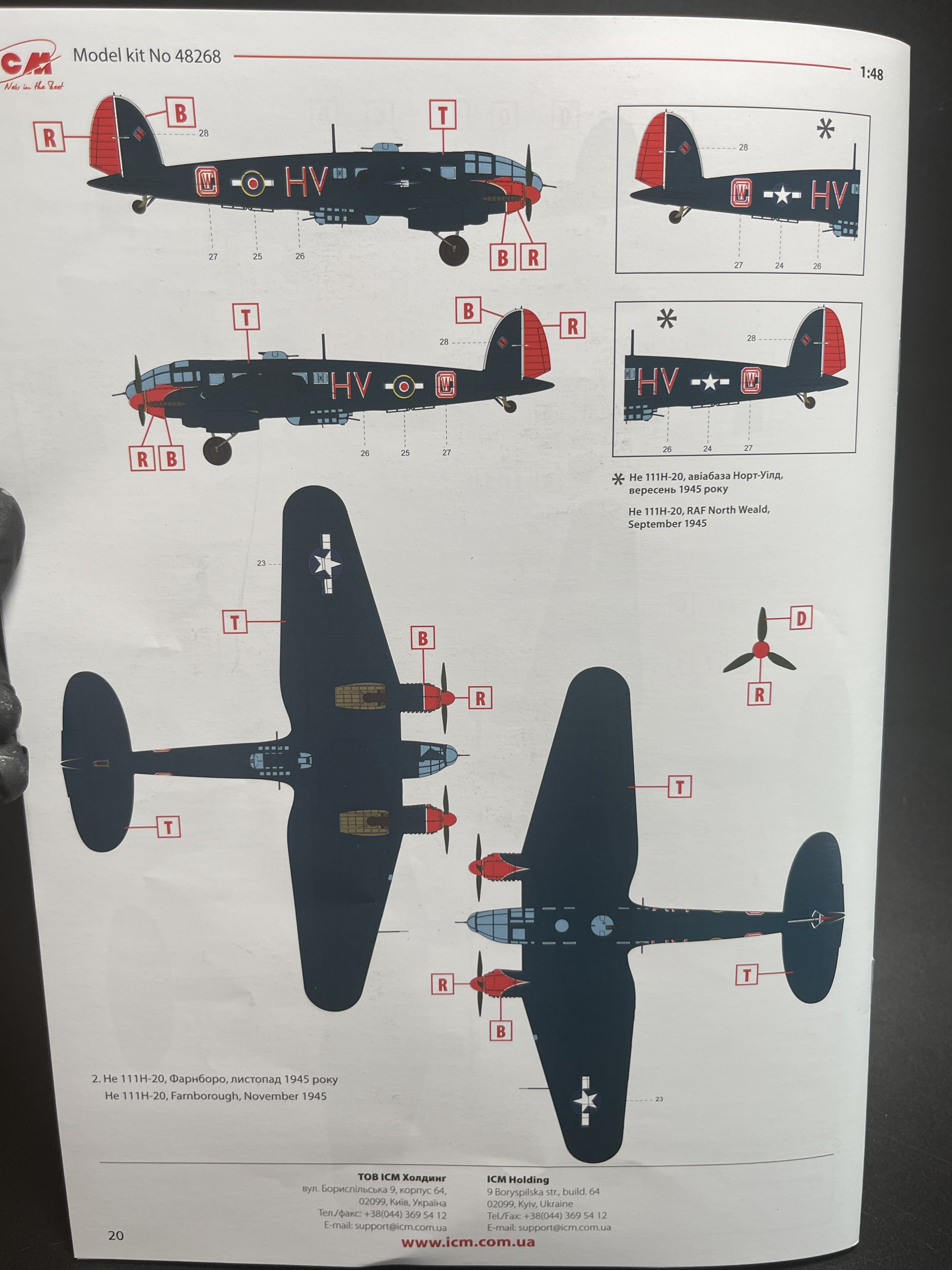

- He-111 H-20, Farnborough, November 1945







These post-capture schemes are very good, for me specially the RAF one. However the painting of the egnines gondolas it very hard and It would be great to have some painting masks for that.

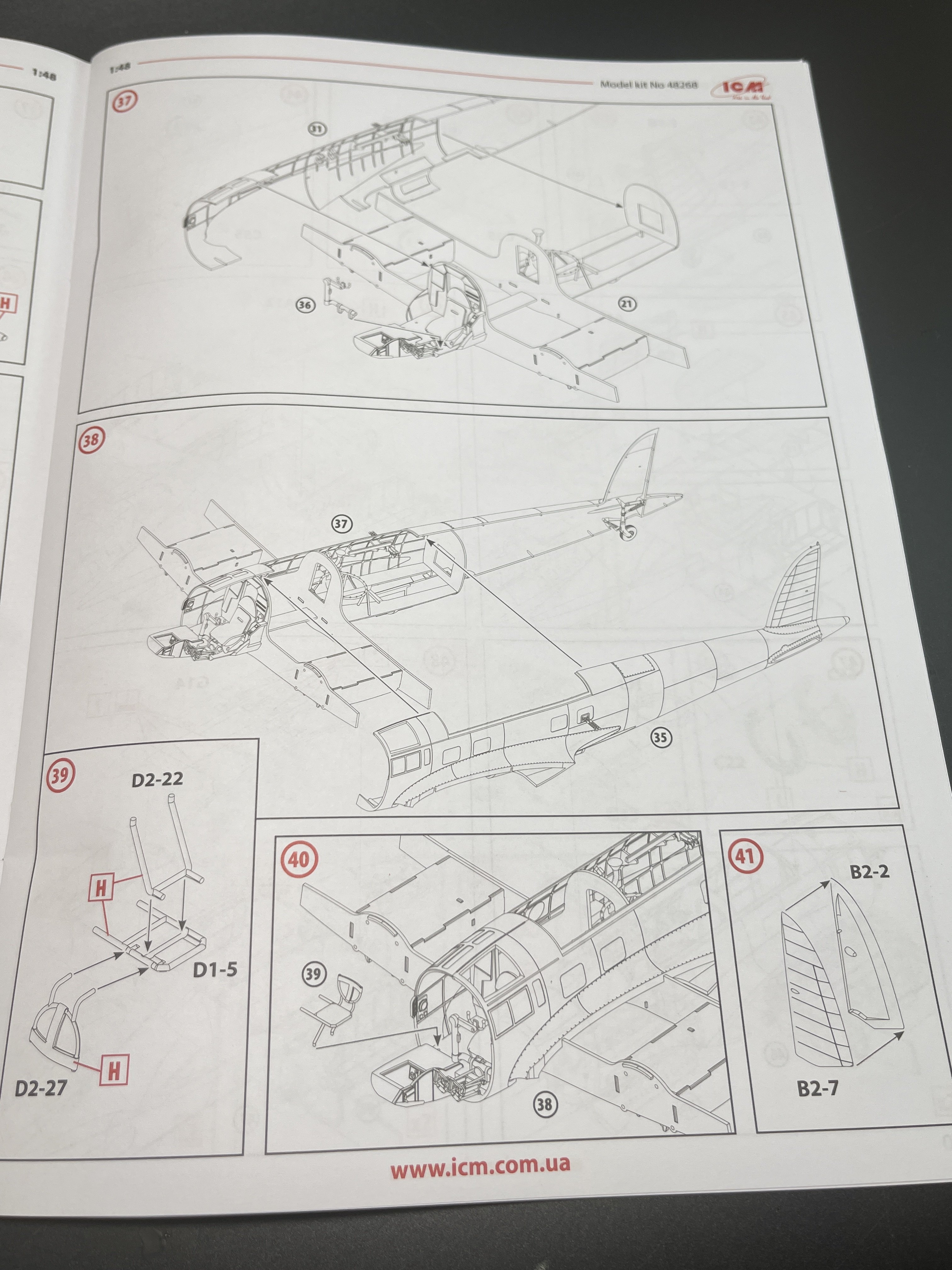

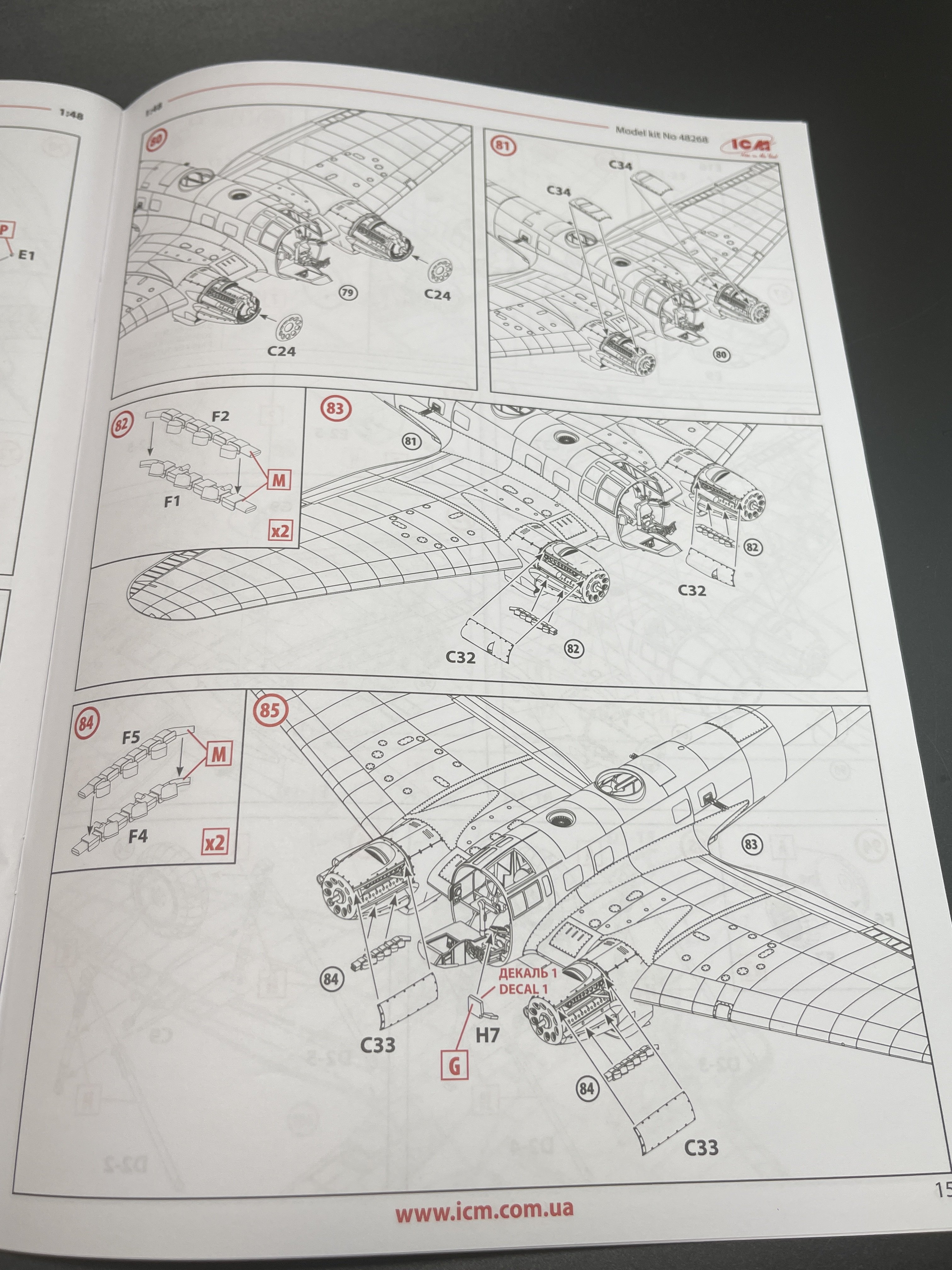

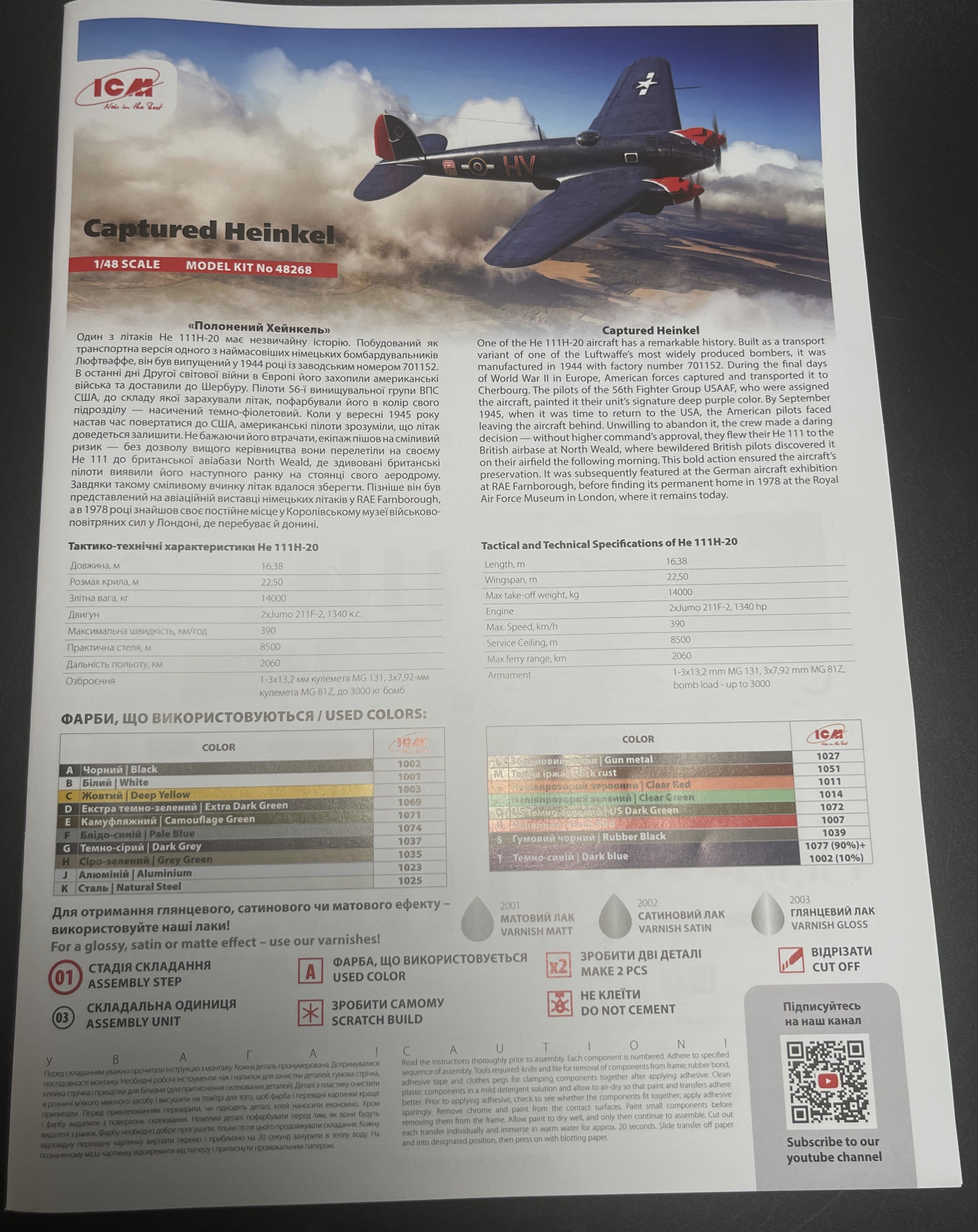

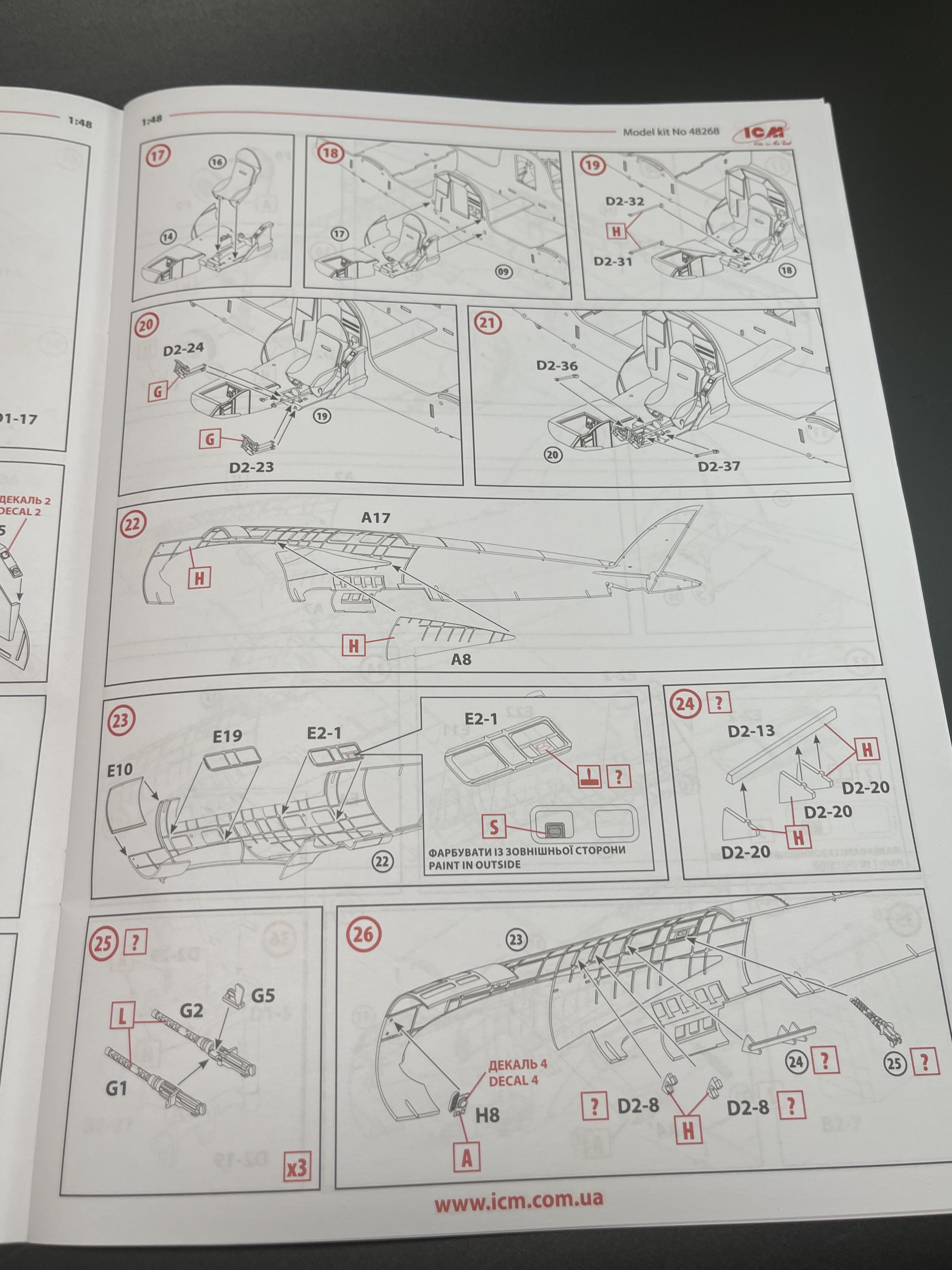

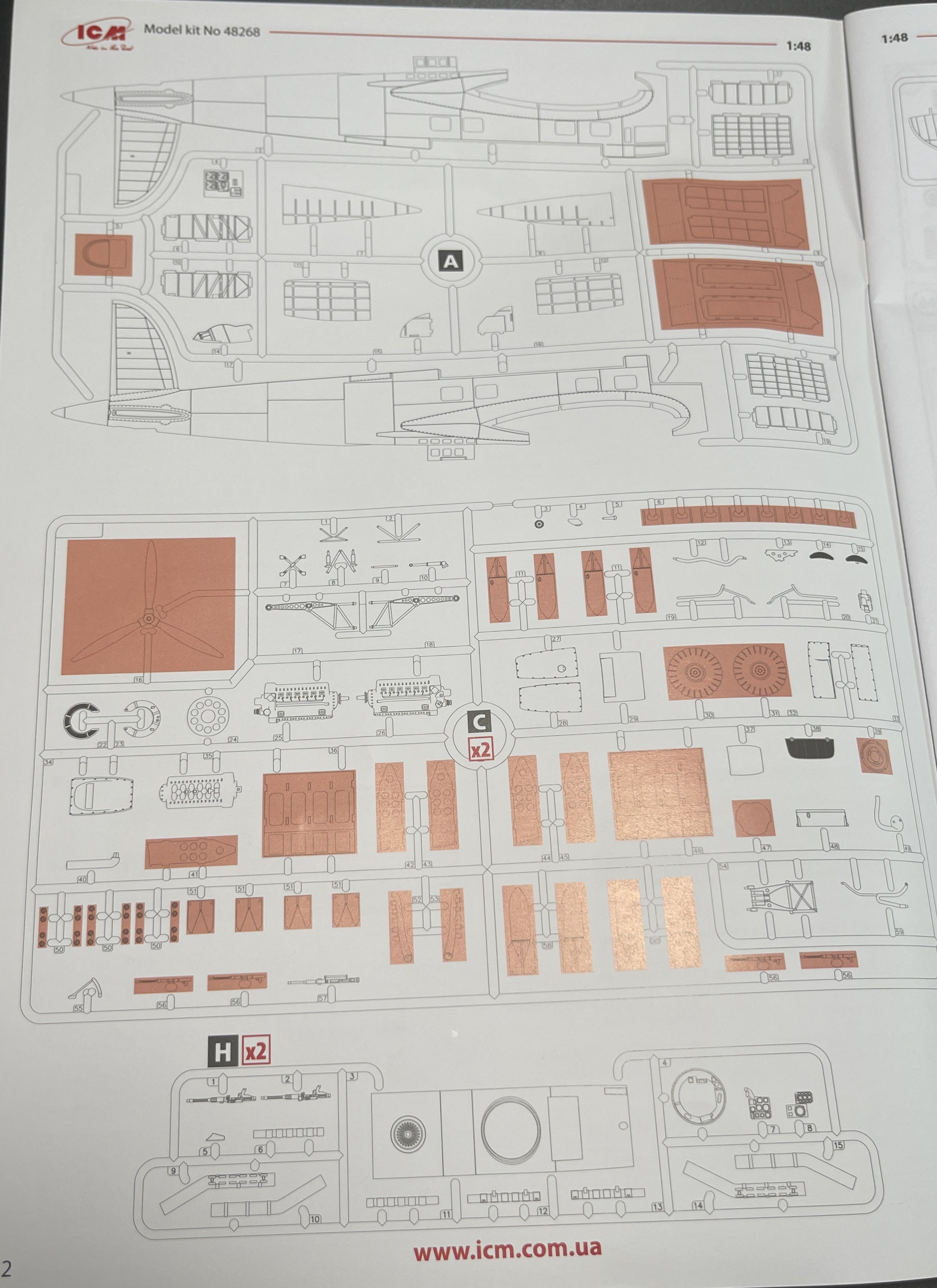

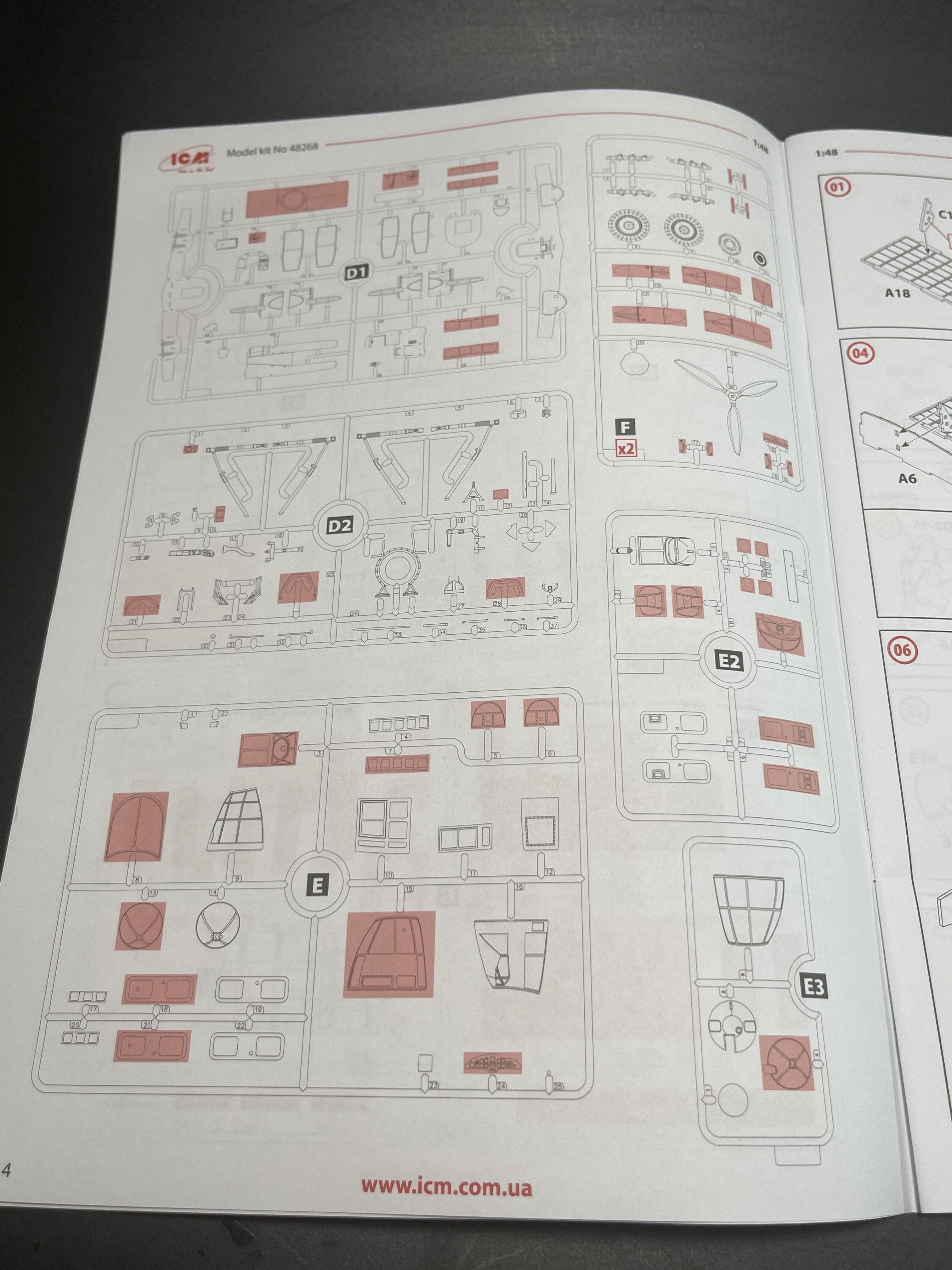

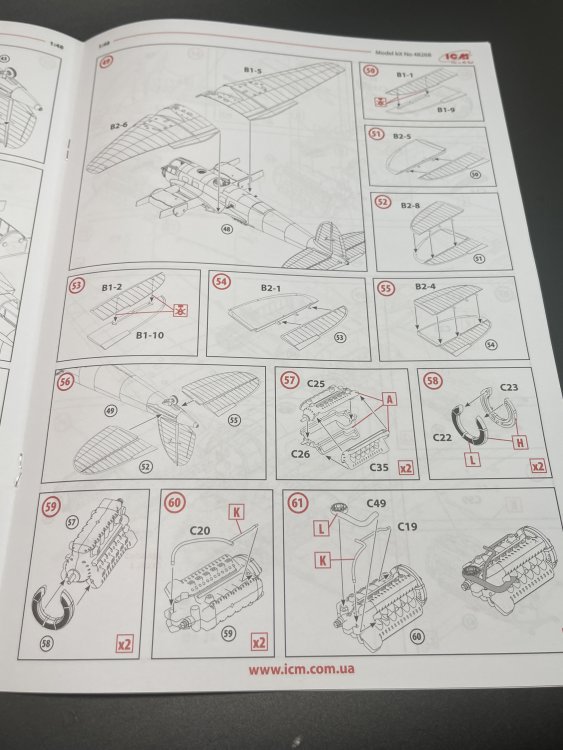

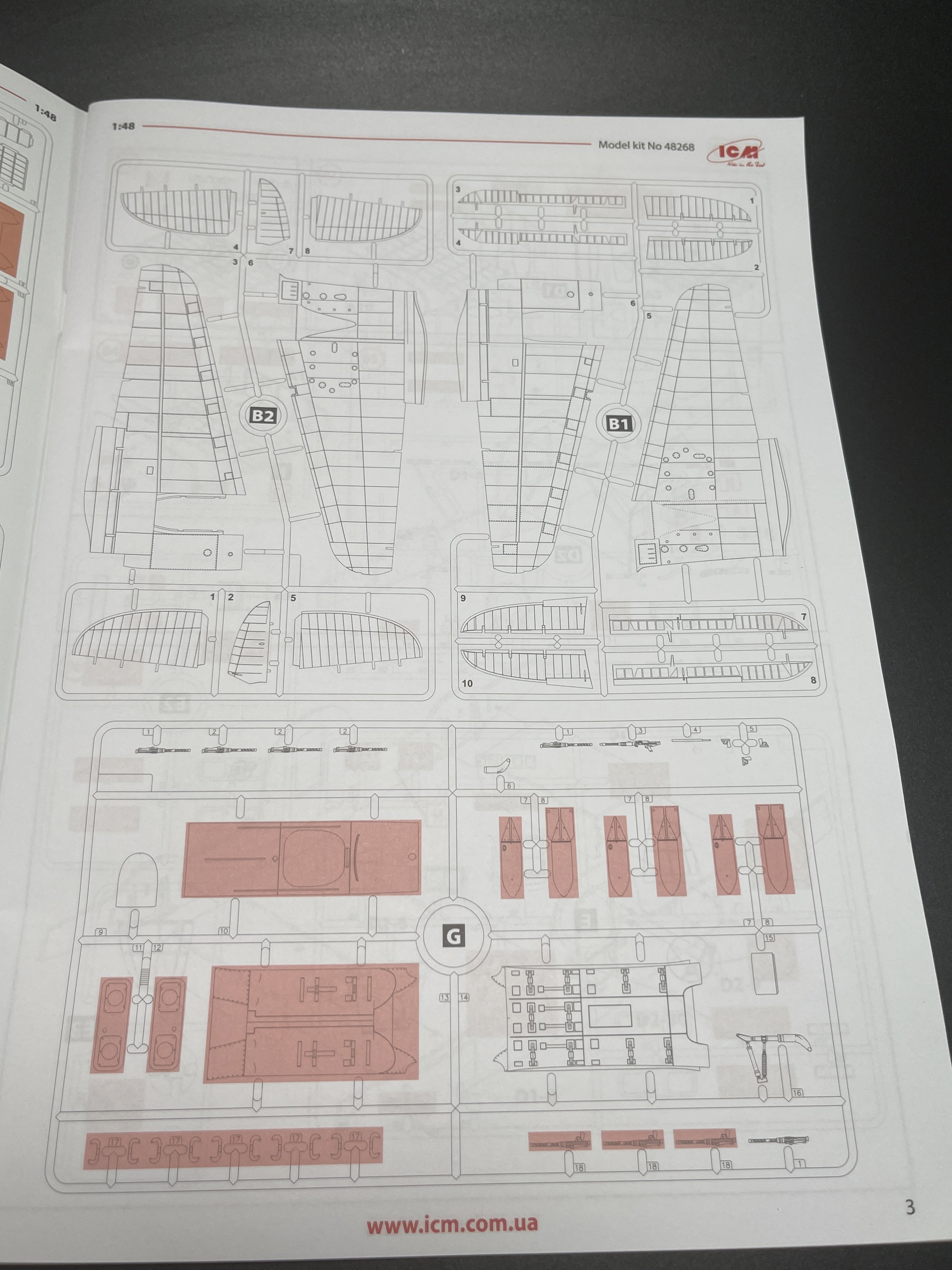

 As for the instructions, the typical booklet with the satin paper in the firts page and last. The parts indicatiosn and color are good.







 Conclusion



The ICM 1:48 Captured Heinkel He 111H-20 (kit number 48268) is a 2025 rebox of ICM's earlier He 111H-20 kit, featuring new decals for aircraft captured and operated by Allied forces during World War II. This version appeals to modelers interested in unusual markings, such as those in USAAF or RAF service, rather than standard Luftwaffe schemes.

And in these colourfull schemes, it will stand out from the rest of the models.

Highly recommend this to intermediate/expert modeler
