1/35 Bronco Humber Scout Car Diorama ....Resins to be cheerful ...

[PanzerWomble]

A couple a years ago I built Bronco's rather nice Humber Scout Car . I like Bronco , the complexity is nice but not overwhelming , the seem to like doing odd British subjects no one else goes near , and the moulding are good . I did their Comet around the same time , before Tamiya brought theirs out last year.

As with a lot of my 1/35 , if it's a keeper ( normally for a couple of years or so ) they don't get a diorama as I deliberately restrict my display space to stop over proliferation . A lot of what I build esp German stuff goes up for sale quite quite, as I like building rather than collecting . I figure if I miss it I can build it again but probably better.



Anyhow ..

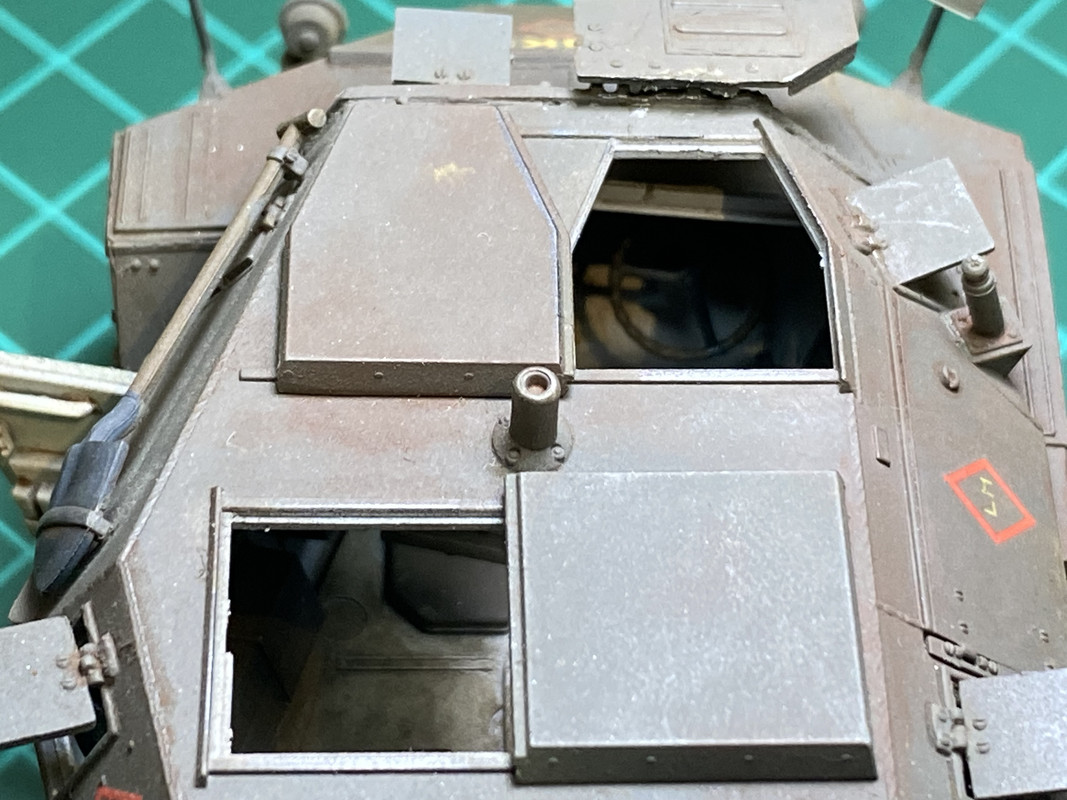

The Scout car as it was .

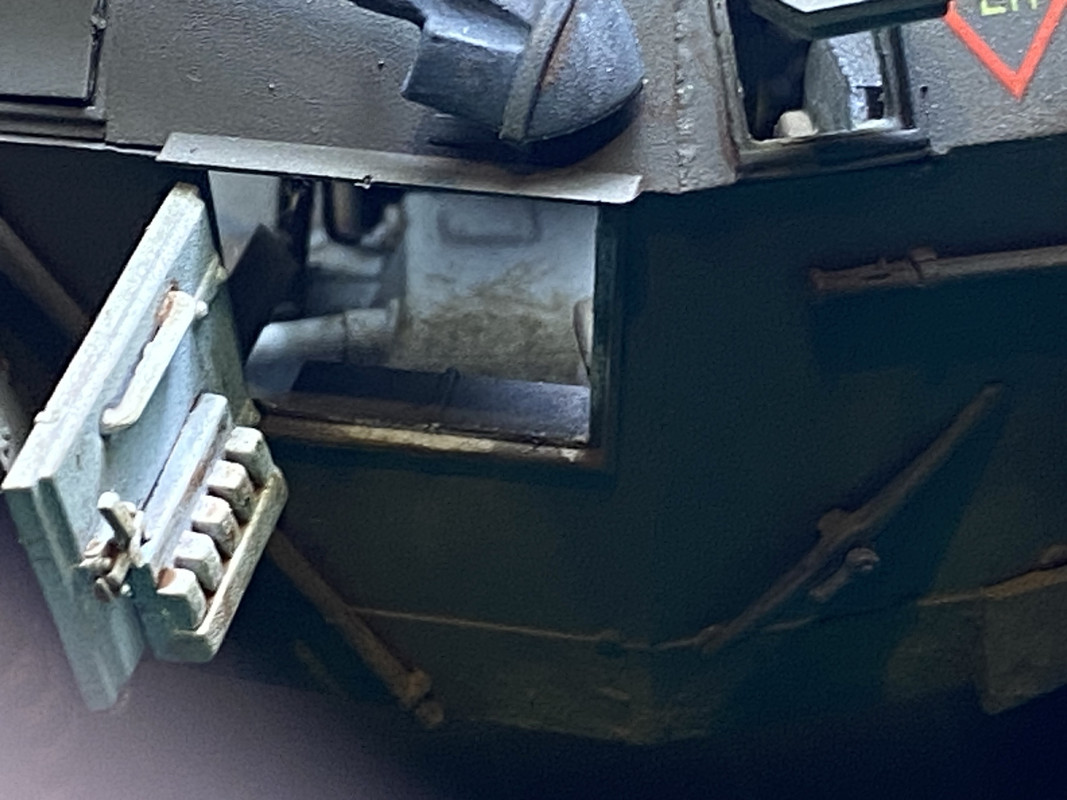

See - nice mouldings , even the rubber tyres .









[PanzerWomble]

Ok so why bring this up now , this is old news right ?

So having had a bit of a mare with the last resin work I wanted to get straight back on the horse and see if I could do better

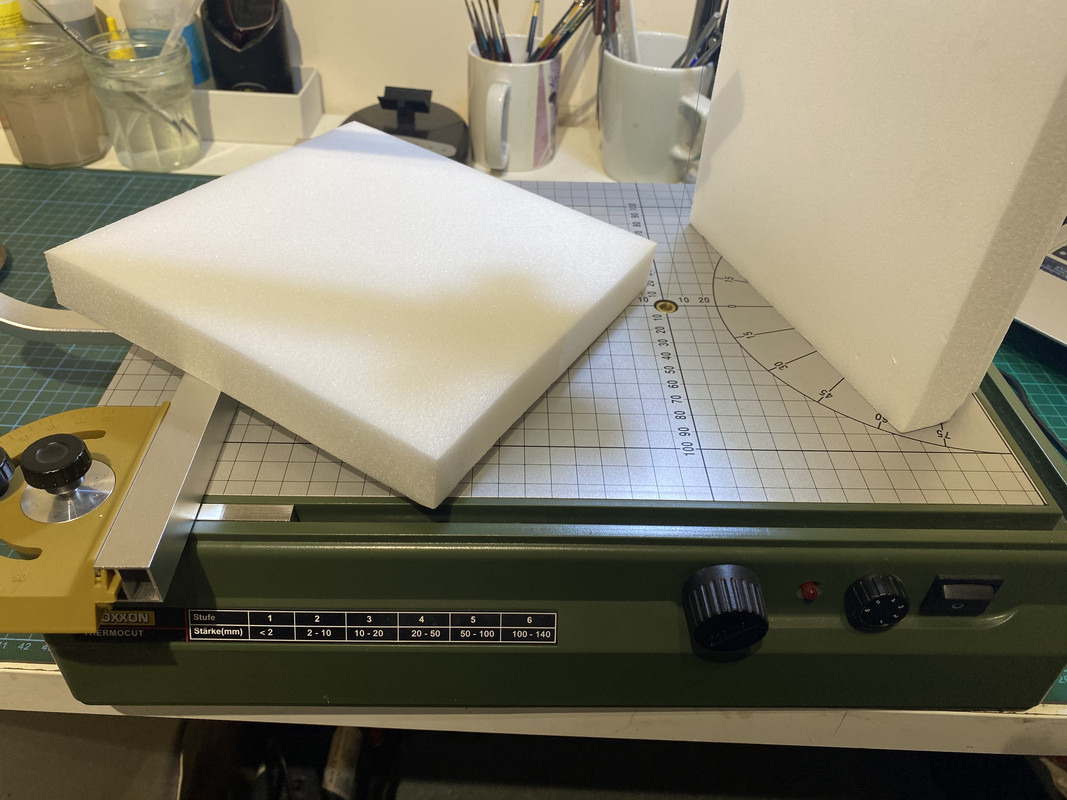

So , some nicer Styrofoam the white not grey . Much easier to work

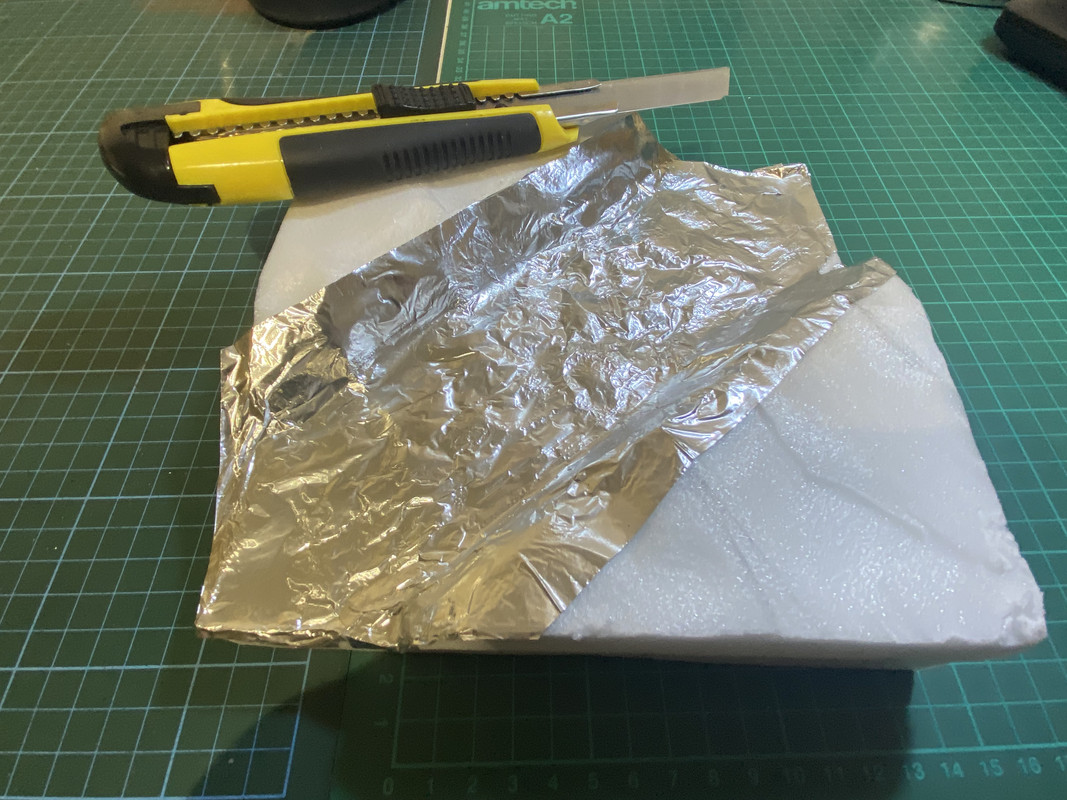

Lining the bed with AL foil . This maybe overkill , but resin leaching into the foam even after sealing with PVA is a major source of bubbles irritations that you can't stop once you've poured.

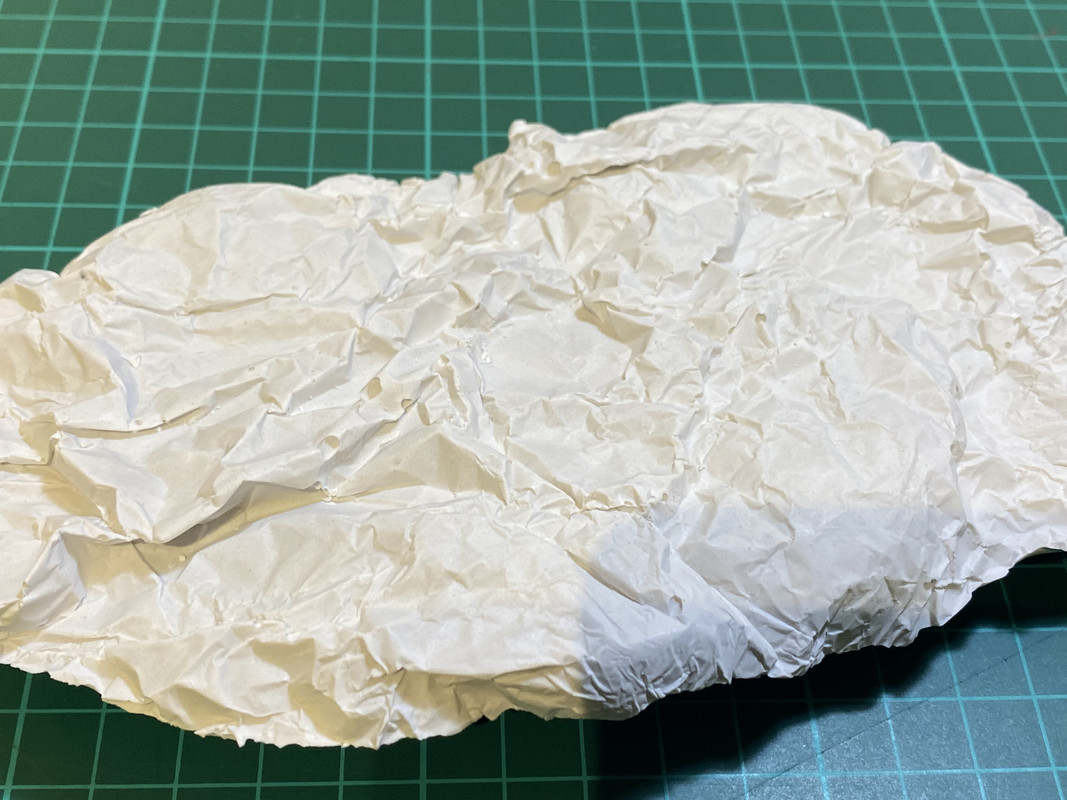

I follow a few "Maker" channels on Youtube, a lot of whom do fantasy stuff ....I'm happy to learn where ever. So tried this trick , cast plaster of Paris into rolled up foil tray  to get a rock surface .....genius if an old trick !





Eh .....whatcha think ? Hot melted in place





Blended using Sculptamold which I've used for a while , basically wood pulp and plaster mix. Railway people use it a lot .





Then all painted in a PVA/Black paint mix to seal it all up and black base it   . Left for 48 hours to harden up .







[GusMac]

Intrigued to follow this. Only diorama I've built was a very recent, vary basic one for the Bronco Comet and some nice ideas there on how to improve for the next attempt.

I did enjoy the Bronco kit. It was the first of theirs I've built and as you say detailed but not too complicated,

[PanzerWomble]

After all that dried it was dry brushed with grays and buff for the rock faces . Looks odd at first but you just have io keep on .The colours were added to until I got to a point where I was happy.









[PanzerWomble]

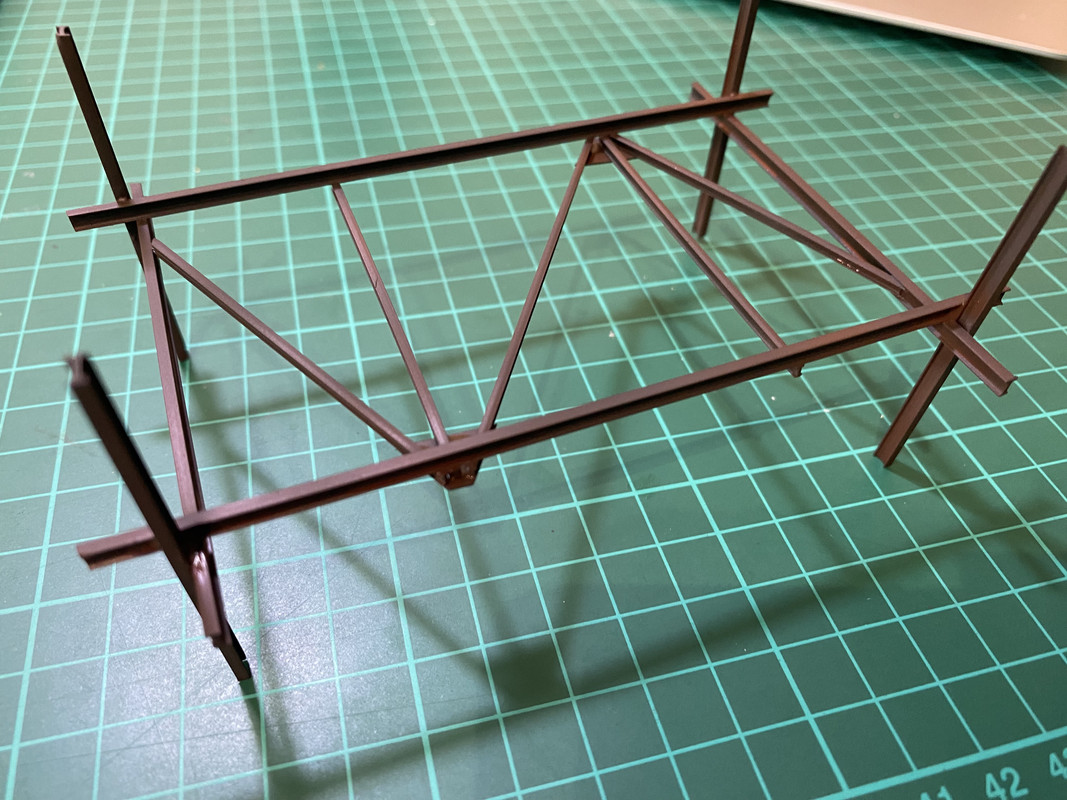

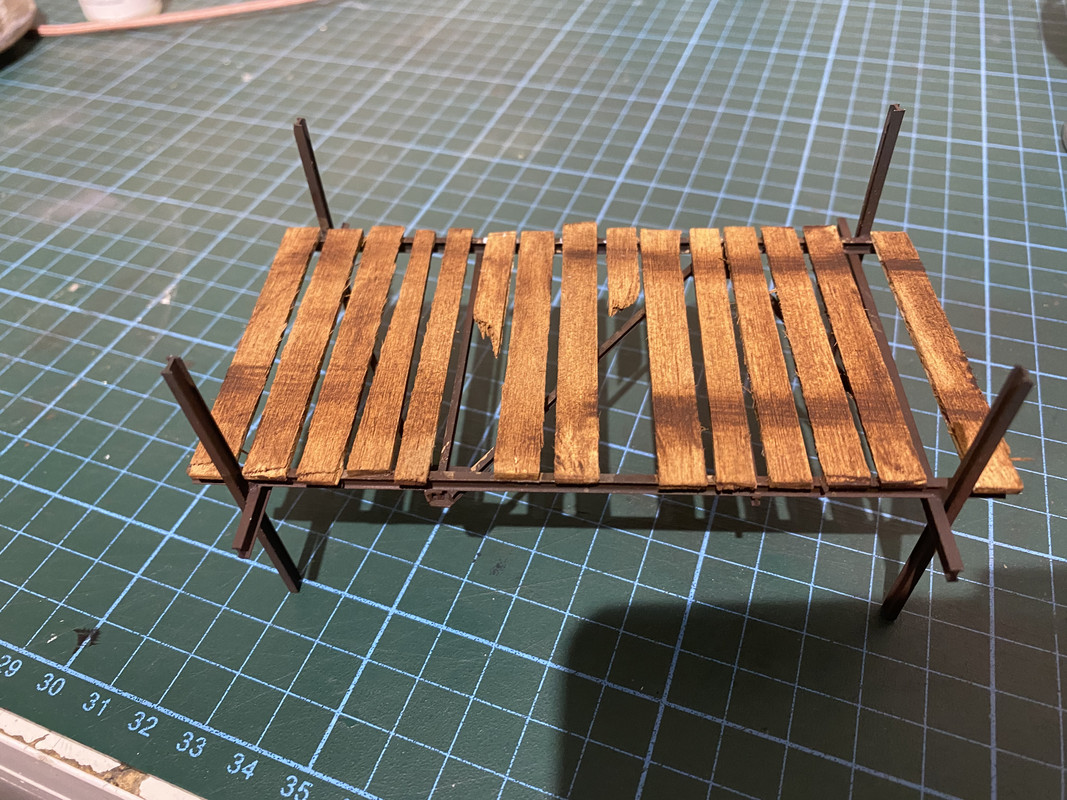

Made a rough bridge using I section styrene









[PanzerWomble]

Base got hit with static grass , flocks and scatter .

Now for the resin , first a cover / seal coat , dried 24 hours , then the main pour.







Right leave all that to cure for 24 hours and then can move on . Happy how this went .

[BlrwestSiR]

The base looks great. I have the Humber car with twin Vickers in the stash that I need to build. I find Bronco kits are a bit like Miniart  ones, lost of small parts and great details.

[PanzerWomble]

21 hours ago, BlrwestSiR said:

The base looks great. I have the Humber car with twin Vickers in the stash that I need to build. I find Bronco kits are a bit like Miniart  ones, lost of small parts and great details.

Agreed , very similar the two companies . I did the Miniart Dingo, a great model but very small for the part count .

[Peterpools]

Some mighty fine work on creating the diorama base as the scenery and details look wonderful.

In my model railroad days, I must have spent more then 700% of my time doing scenery and structures.

[PanzerWomble]

1 hour ago, Peterpools said:

Some mighty fine work on creating the diorama base as the scenery and details look wonderful.

In my model railroad days, I must have spent more then 700% of my time doing scenery and structures.

I agree - it adds considerably to any build time. Average tank to me  is 4-6 days work, average diorama is upwards of 10-30 , esp if I start adding buildings or water.  This has been a bit easier as it's only 8 inches square.

Did two large involved ones last year , both were about a months work or so .

[PanzerWomble]

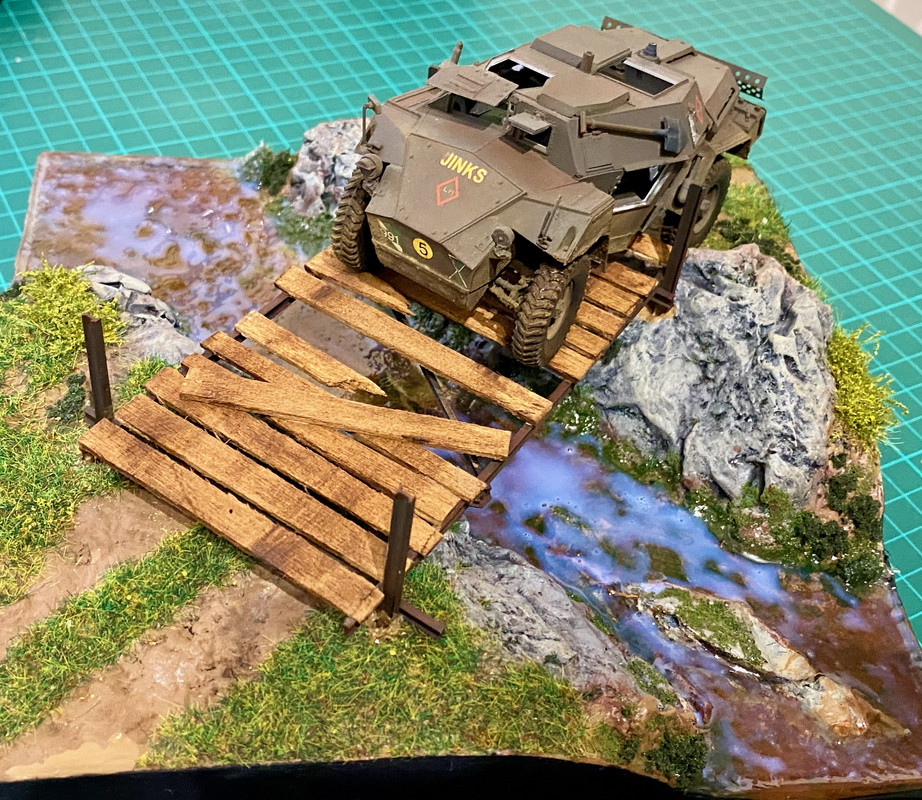

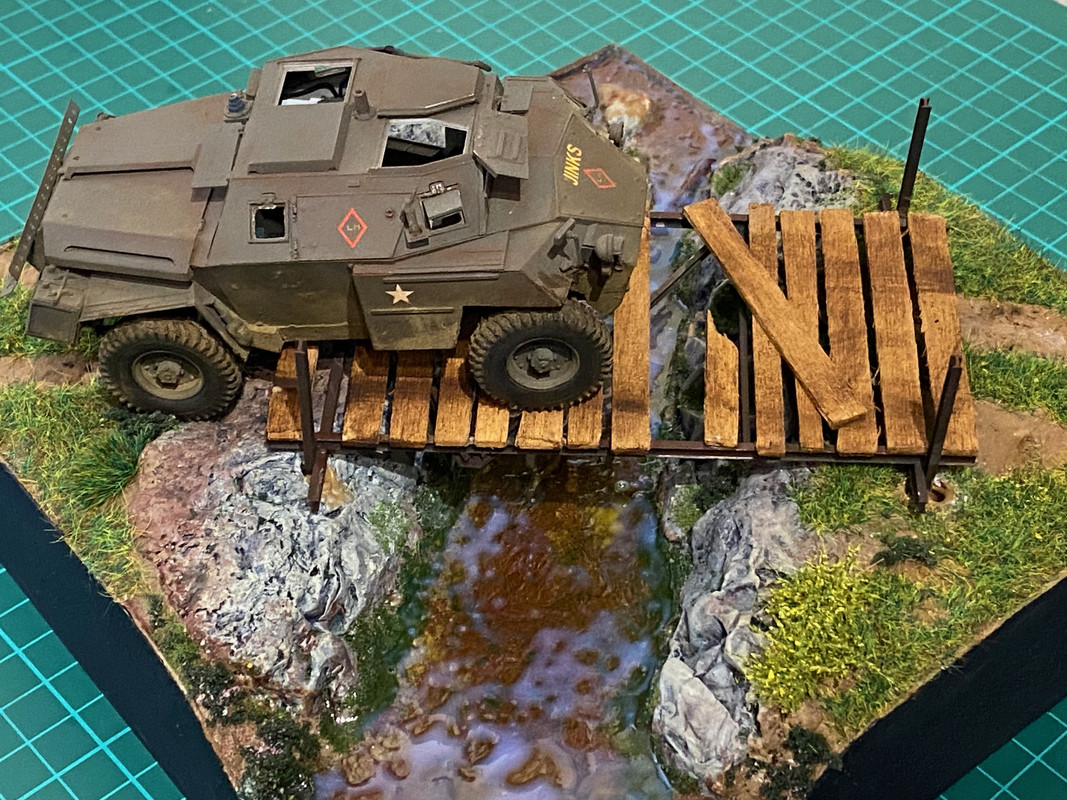

Getting there , don't fret over the water , it's just freshly applied medium , it'll settle down .

Got a couple of fellas to add in , maybe some bushes ?

Next up -hopefully glamour shots -but between work , moving and family stuff I'm struggling to find time this month .





[PanzerWomble]

Fun fact , apparently the layout of Humber Scout Car was the base vehicle used when developing the Alvis Ferret , even though the Dingo was a Daimler (Alvis) product.

[Peterpools]

Looking mighty good ... no better way to display a finished build as it shows time and place and a reason for the specific type of weathering.
