sandbagger Posted April 11 Share Posted April 11 Hi all, I previously built the Copper State Models 1:32nd scale Bristol Scout C, serial No.1260 of No.5 Wing (RNAS), operating from Dover as part of Home Defence in 1916. I'm now building the same model, but Scout serial No.1264, as it is now, flown by owner/builder David Bremner. This model is of aircraft as flown by David's grandfather, Sub. Lt. Francis Holden ‘Bunnie’ Bremner of No.2 Wing (RNAS), operating from the Greek island of Thasos, off the coast of Bulgaria, during 1916. This aircraft can be built from the kit, but only as it was during WW1. However, David's present reproduction aircraft has differences, primarily in the cockpit. These differences require the following modifications to the cockpit: Remove the opening panel in the cockpit rear cross member Remove the control lever from the upper right longeron Fit the Pulsometer to cockpit right side frame and add associated pipe Replace Tachometer drive with lead wire Fit curved quarter panels at the front and rear of the cockpits upper longerons Create engine controls (with control rods) at the cockpit left side frame, lower left of pilots seat Replace pilots seat with better quality 3D printed seat (Gaspatch) Remove the pre-molded clock from top, left side of the instrument panel Add representation of the clock above magneto switch at lower left of the instrument panel Remove compass and its housing from between the pilots foot boards Add blip switch cable to rear of control column and under pilots foot boards Add all visible cockpit bracing wires and control cables (rudder, ailerons and elevators) Add modern four point safety harness in addition Fit kit supplied lap straps behind the pilots seat Add ‘Bunnie’s’ flying certificate to the map holder. Also the engine is the Le Rhone 9J (supplied in the kit (pre-orders only). The engine was built as supplied, apart from replacing the valve push rods with Nickel-Silver tube and adding spark plug lead using Modelkasten 0.6 (0.13mm) line, Mike 8 Link to comment Share on other sites More sharing options...
sandbagger Posted April 28 Author Share Posted April 28 Hi all When daylight from above passes through the clear doped linen covering of this aircraft, the internal structures and bracing wires can be seen as shadows To represent this effect, a combination of roundel decals, masking and painting and the addition of appropriate decals from the 'Xtradecal' Black Stripes (XPS1) set was used These will be airbrushed over to blend them with the base colour to create the shadow effect Mike 6 Link to comment Share on other sites More sharing options...
KevinM Posted May 8 Share Posted May 8 Artist! Link to comment Share on other sites More sharing options...

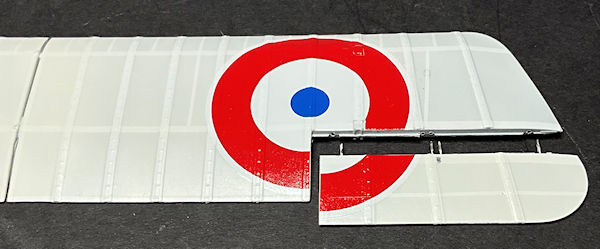

sandbagger Posted May 13 Author Share Posted May 13 Hi all The basic decals for the structure and rib tapes has been applied The top surface tapes are 'Xtradecal' parallel white stripes (XPS2) decals. The underside tapes are cut from 'Aviattic' Off White on Linen (ATT32241) decal These were all 'faded' back with a light airbrushed coat of ‘MRP’ Clear Doped Linen (MRP-256) The kit supplied roundels were then applied The surfaces still need to be weathered slightly Mike 8 Link to comment Share on other sites More sharing options...
sandbagger Posted May 28 Author Share Posted May 28 Hi all, I've now completed detail painting and decals etc. Also all structural pre-rigging has been added as well as the elevator and rudder control cables. Ready now to fit the upper wing, Mike 6 Link to comment Share on other sites More sharing options...
sandbagger Posted July 1 Author Share Posted July 1 Hi all, An update on this Scout build. I've not done any modelling for around 5 weeks. I was away in Cyprus for two weeks, then fighting off and chest infection for another two weeks. Finally I found the upper wing had somehow been 'attacked' by my daughters dog and is way beyond repair!!! So I'll remake the upper wing once a replacement kit arrives. Mike 5 Link to comment Share on other sites More sharing options...
sandbagger Posted July 21 Author Share Posted July 21 Hi all After the dog destroyed the original upper wing, I've now finished the replacement wing I've added the intermediate wing spar on both upper and lower wings, which I missed before Now sorting out the cabane and interplane struts before pre-rigging starts Mike 6 Link to comment Share on other sites More sharing options...
sandbagger Posted July 23 Author Share Posted July 23 Hi all, The model has been pre-rigged and the upper wing fitted Now it's onto final rigging Mike 3 Link to comment Share on other sites More sharing options...
HubertB Posted July 23 Share Posted July 23 I absolutely LOVE the transparency effect you have achieved on the wings. That’s a real inspiration for when I dare to tackle some of my WWI kits. Hubert 2 Link to comment Share on other sites More sharing options...
sandbagger Posted July 30 Author Share Posted July 30 Hi all, The model is finished and up on the Ready for Inspection page. Thanks for your support and comments throughout this build Mike 1 Link to comment Share on other sites More sharing options...
