1/1 Revi16 restoration

[JeroenPeters]

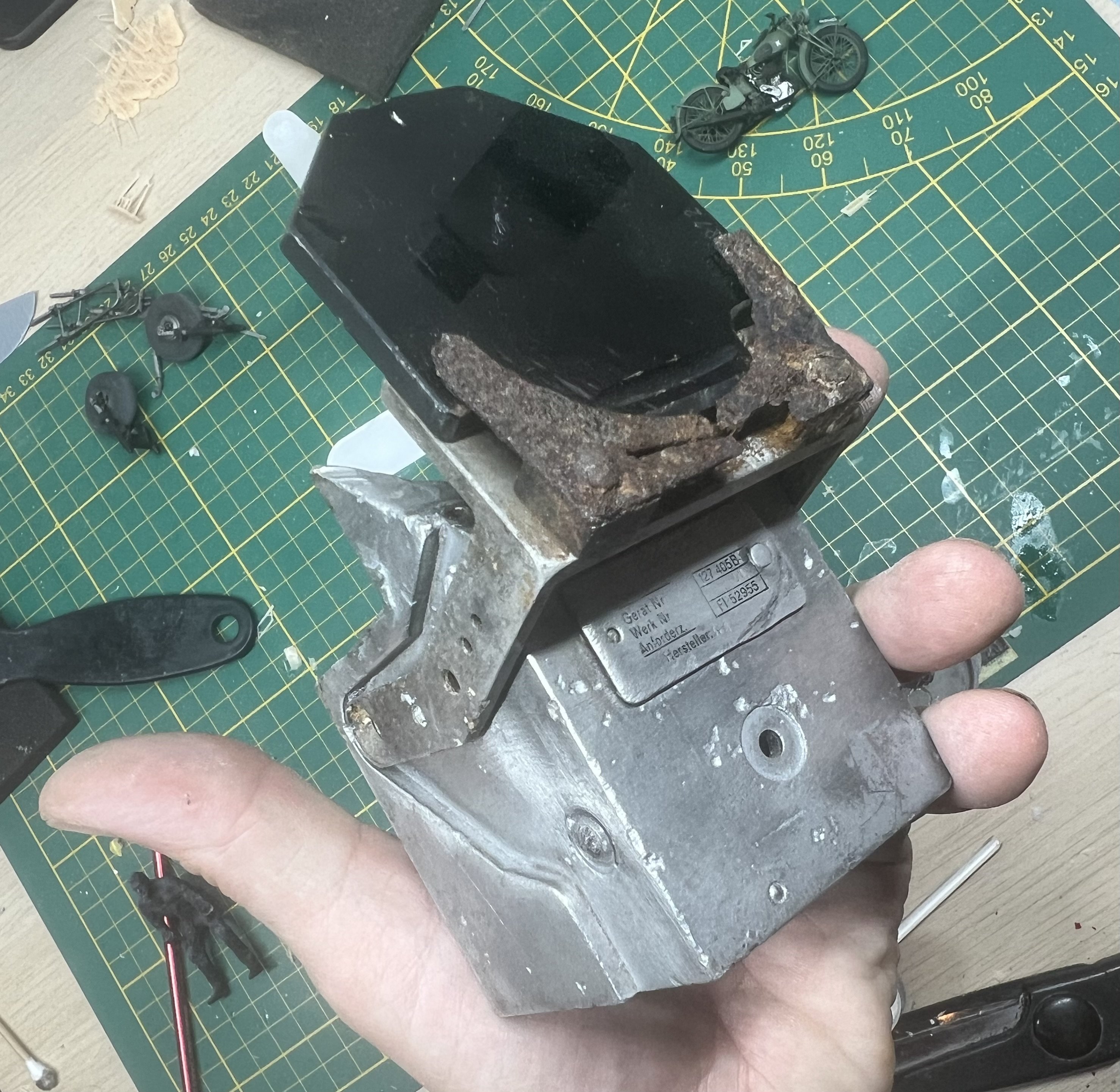

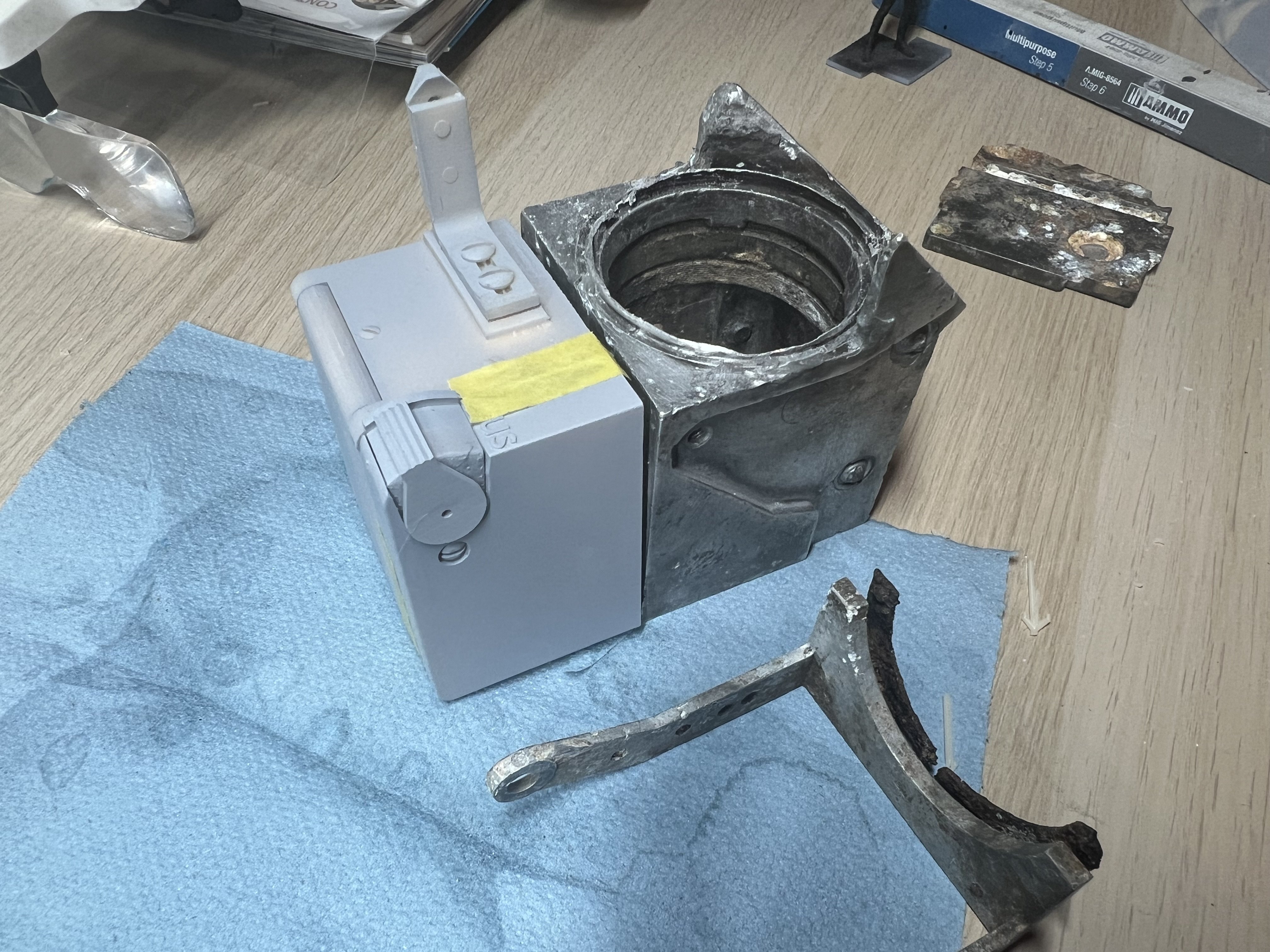

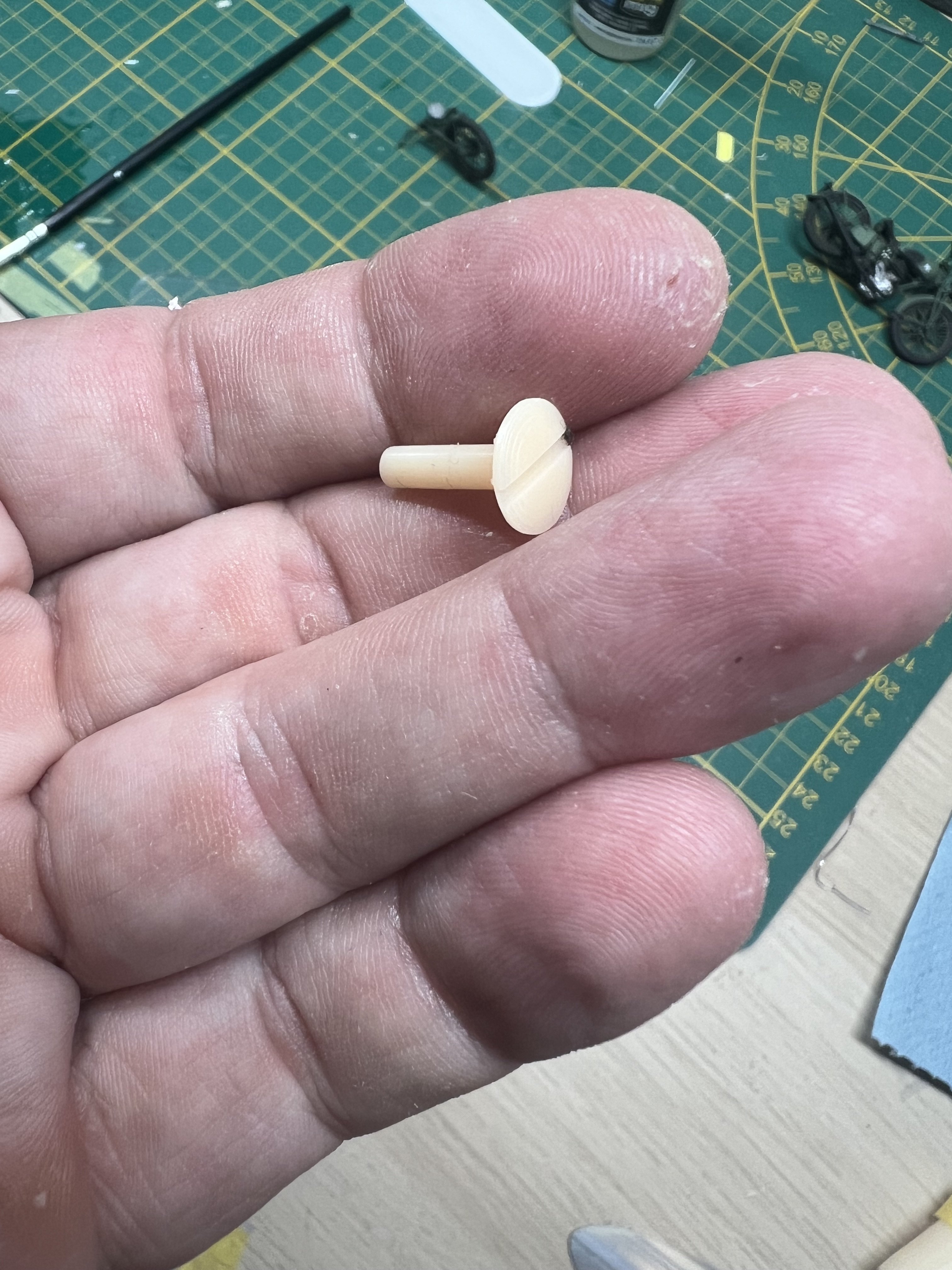

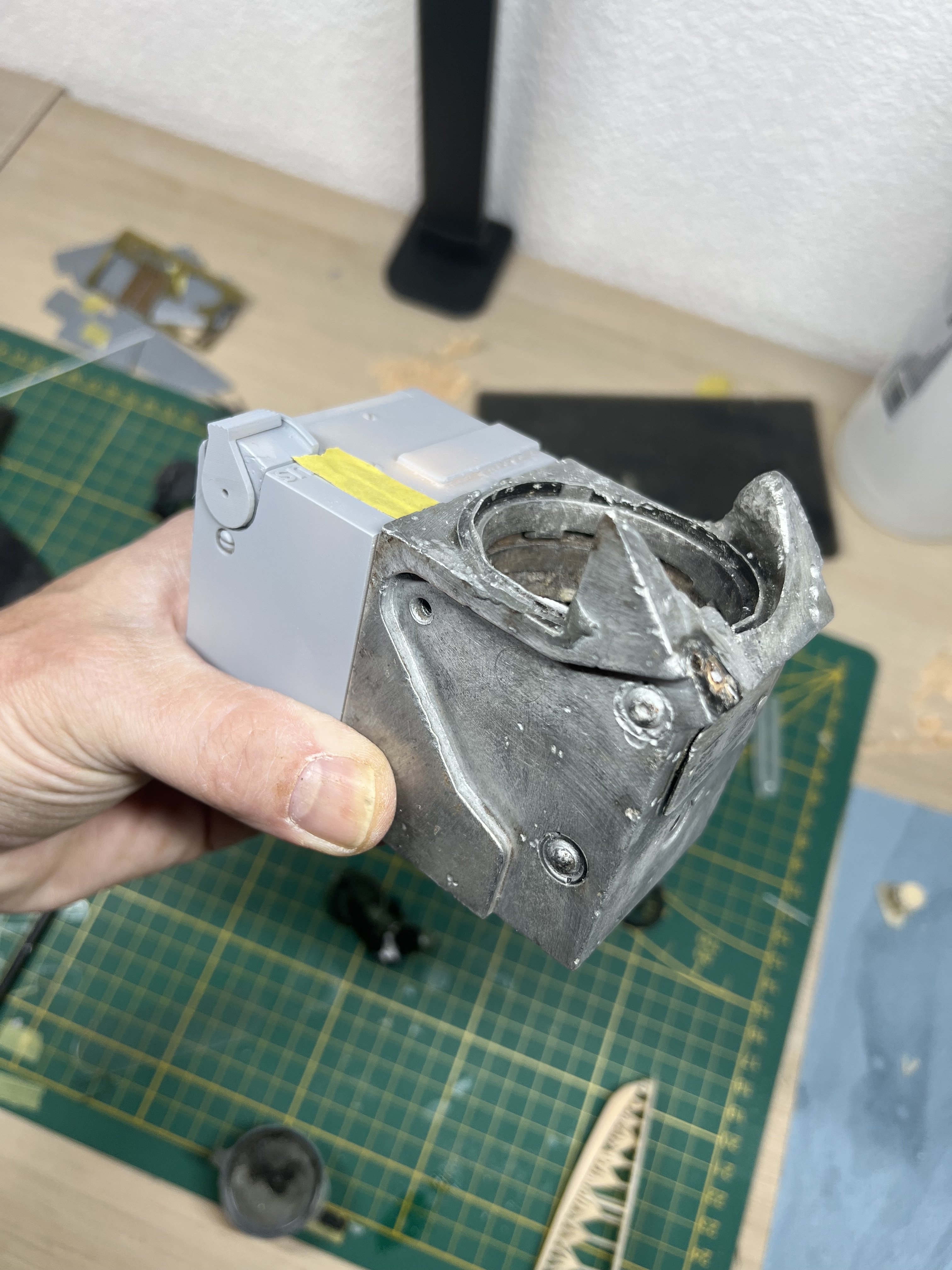

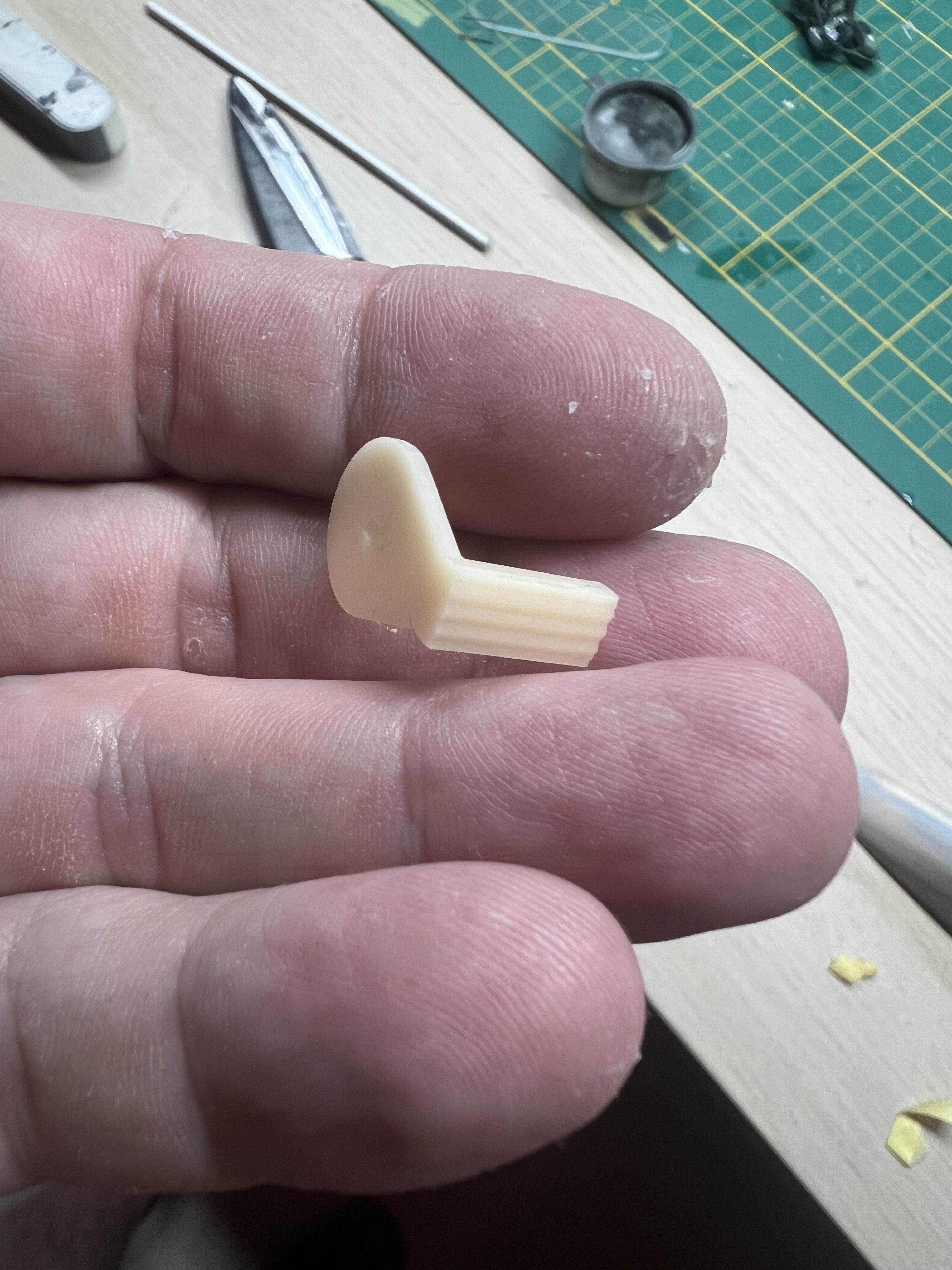

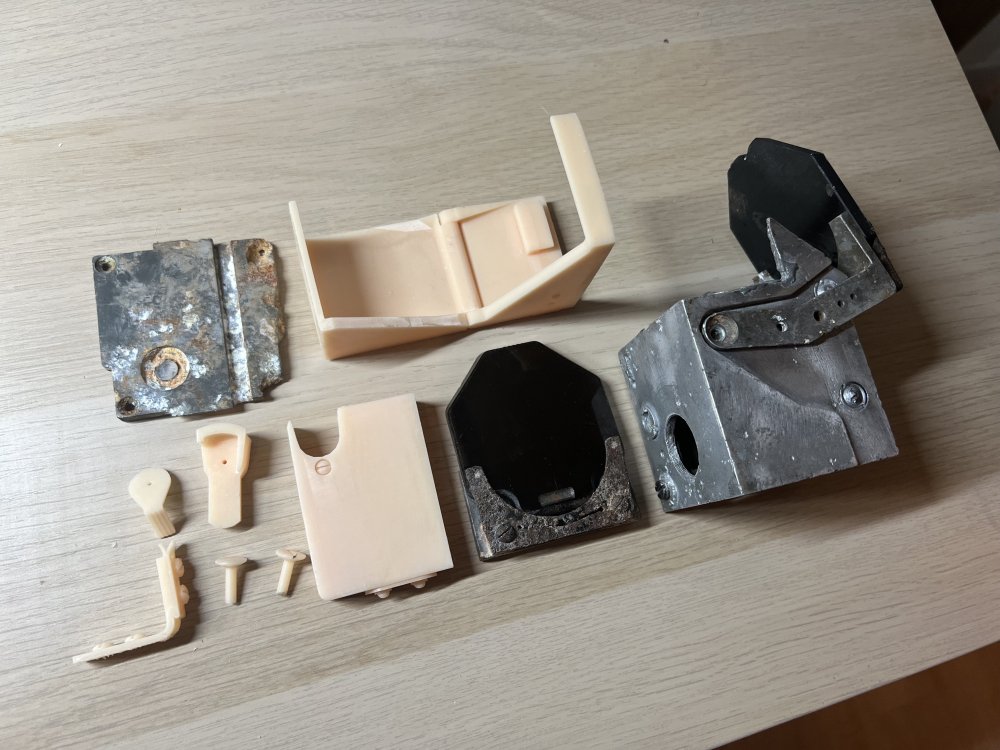

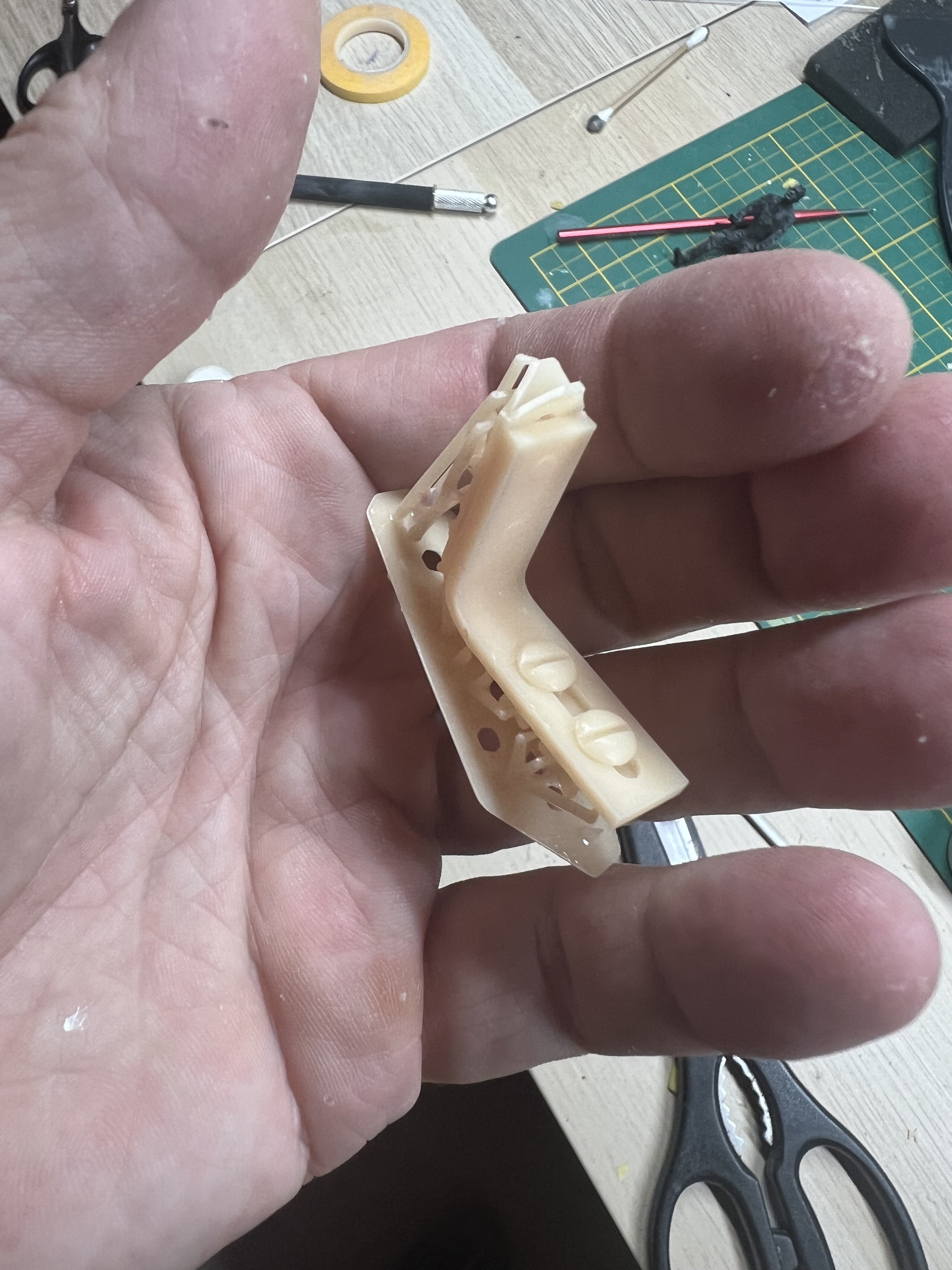

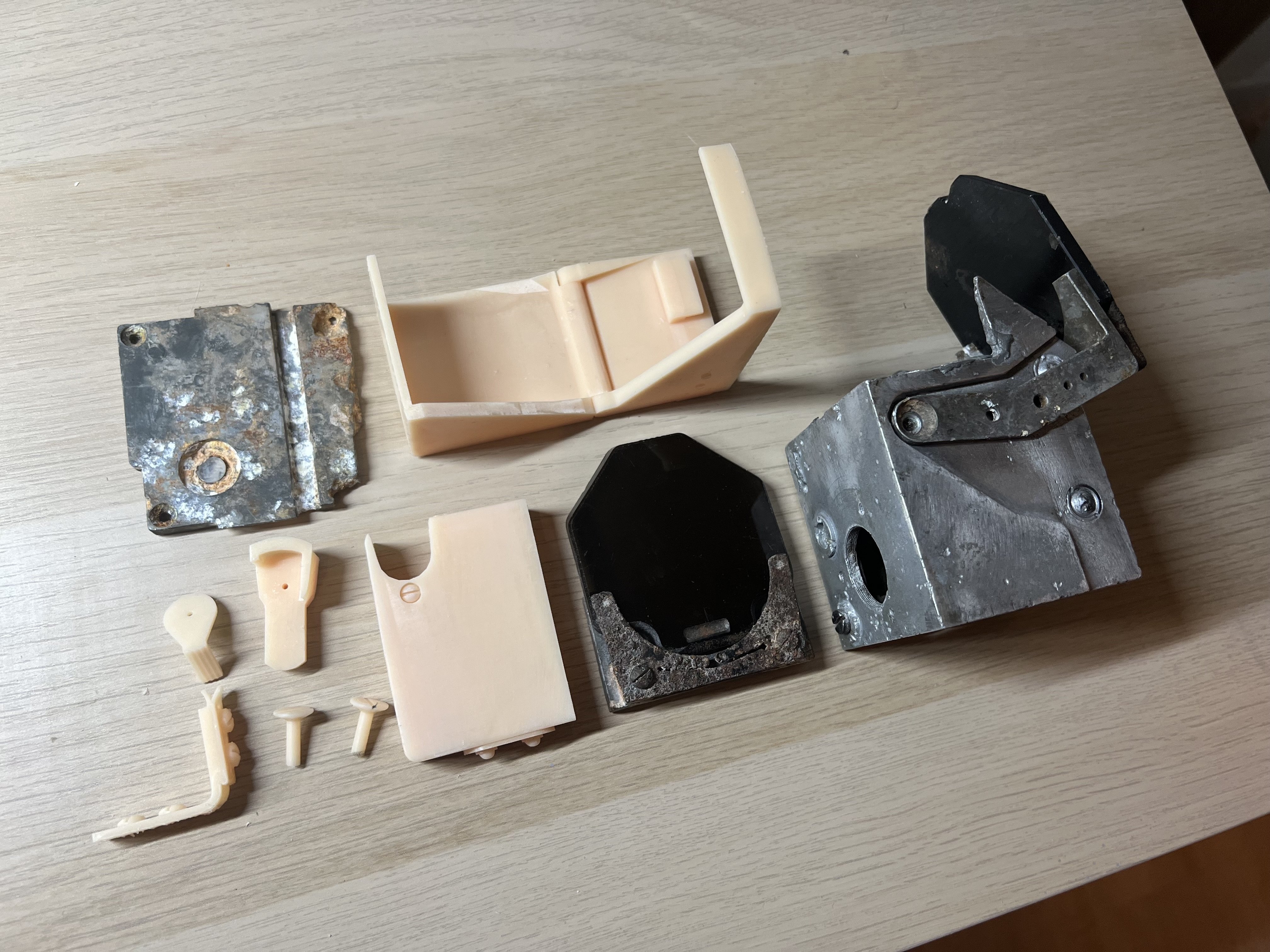

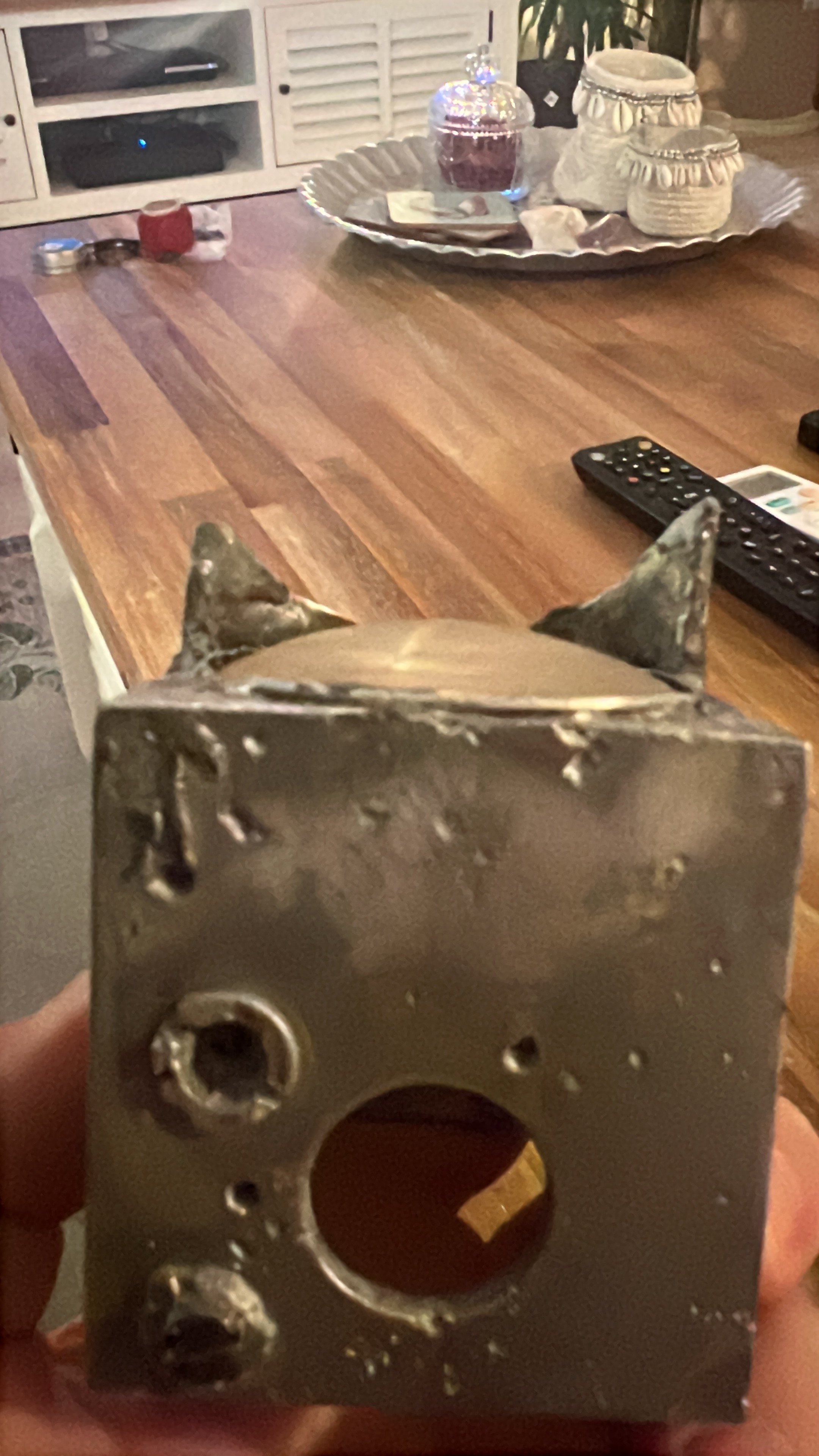

Another side project. Got this revi16 crash relic with missing half of it’s body. Drew these parts in 3D and printed them.




[KevinM]

Now that's pretty cool Jeroen

[JeroenPeters]

Here we go



[JeroenPeters]

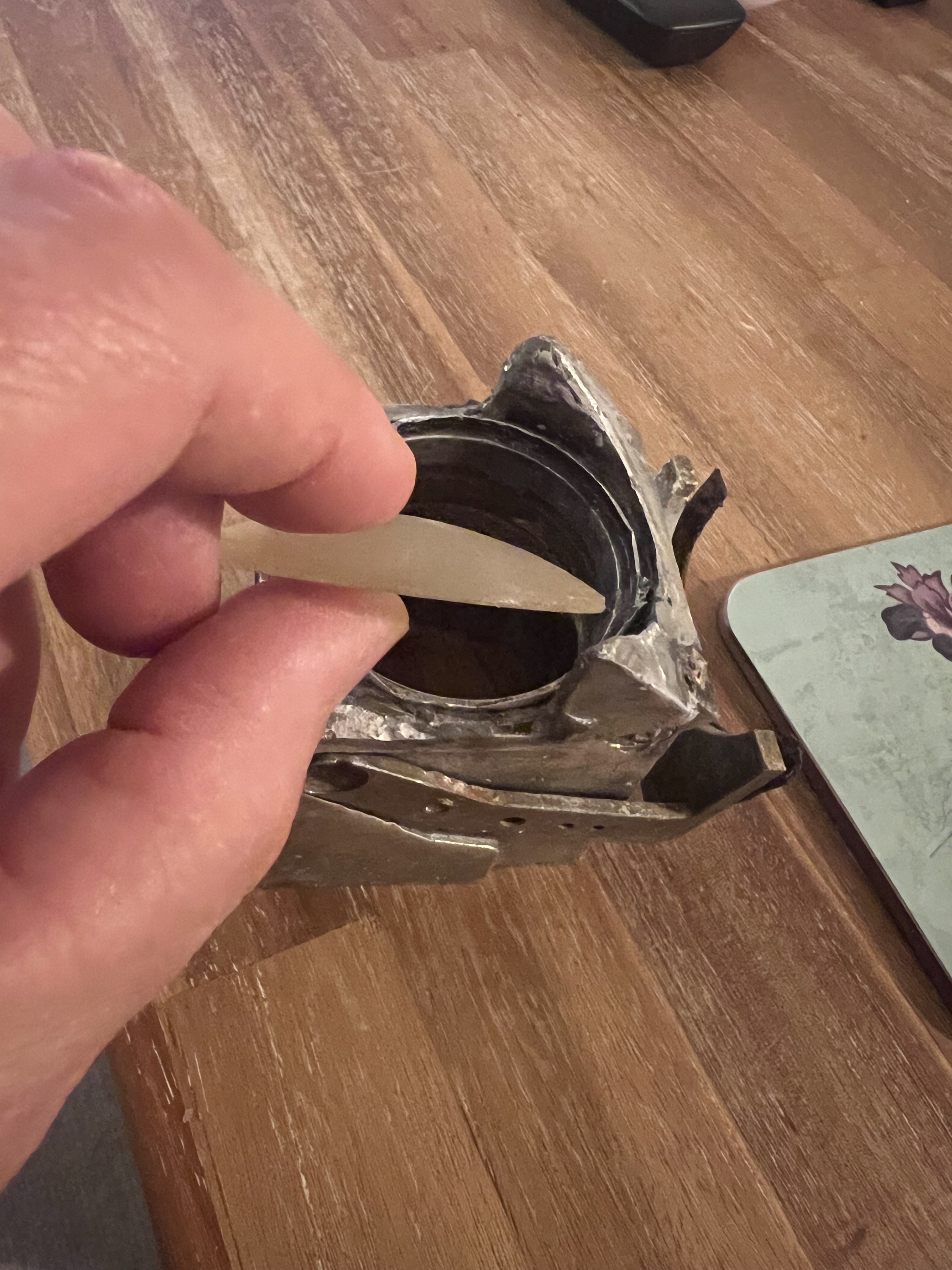

I have some technical drawings and drew a 3d model of the top lense. Printed it in transparent resin and it fits like a glove. Now to polish it and treat it with a heat gun to make it crystal clear.



[JeroenPeters]

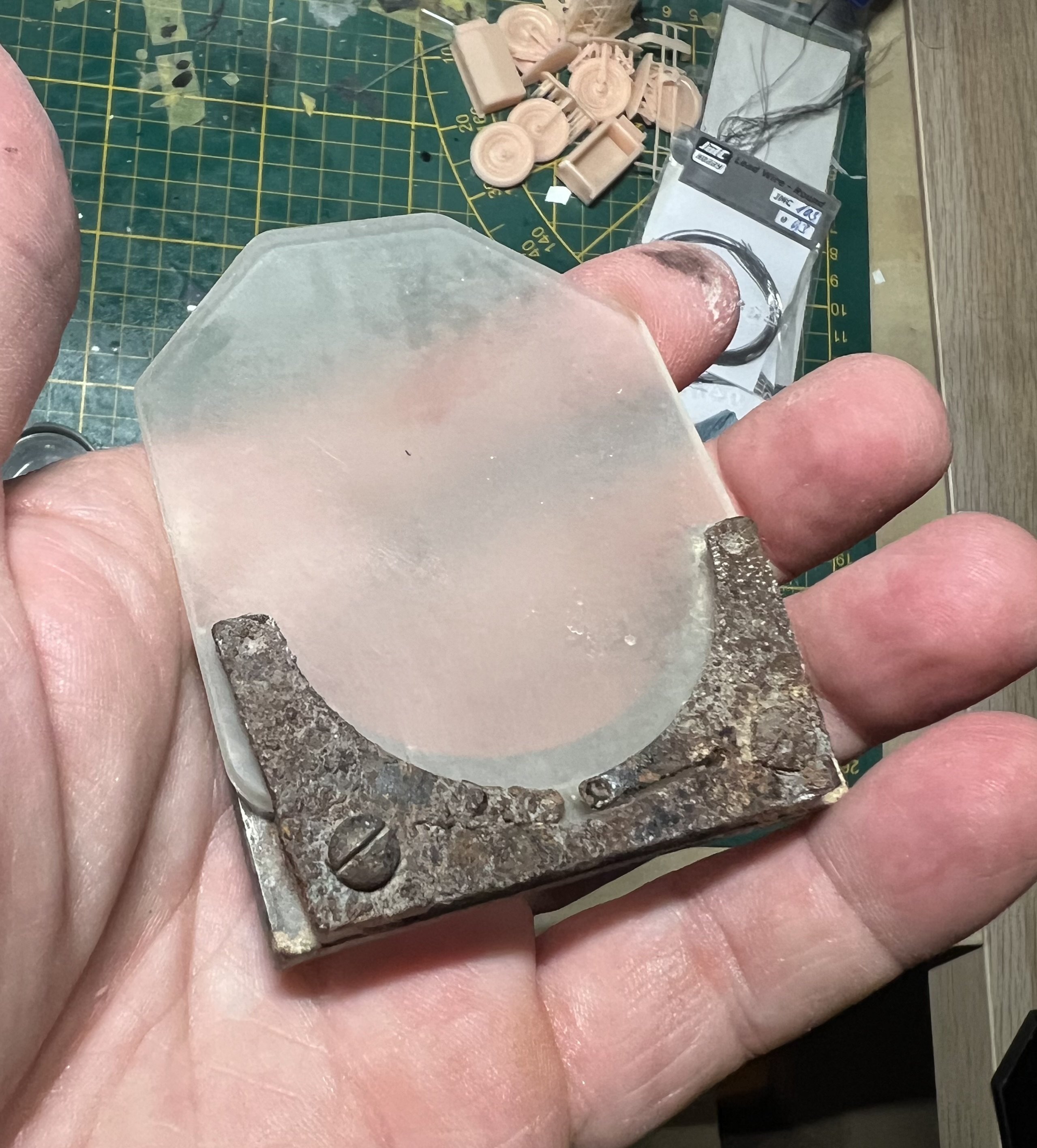

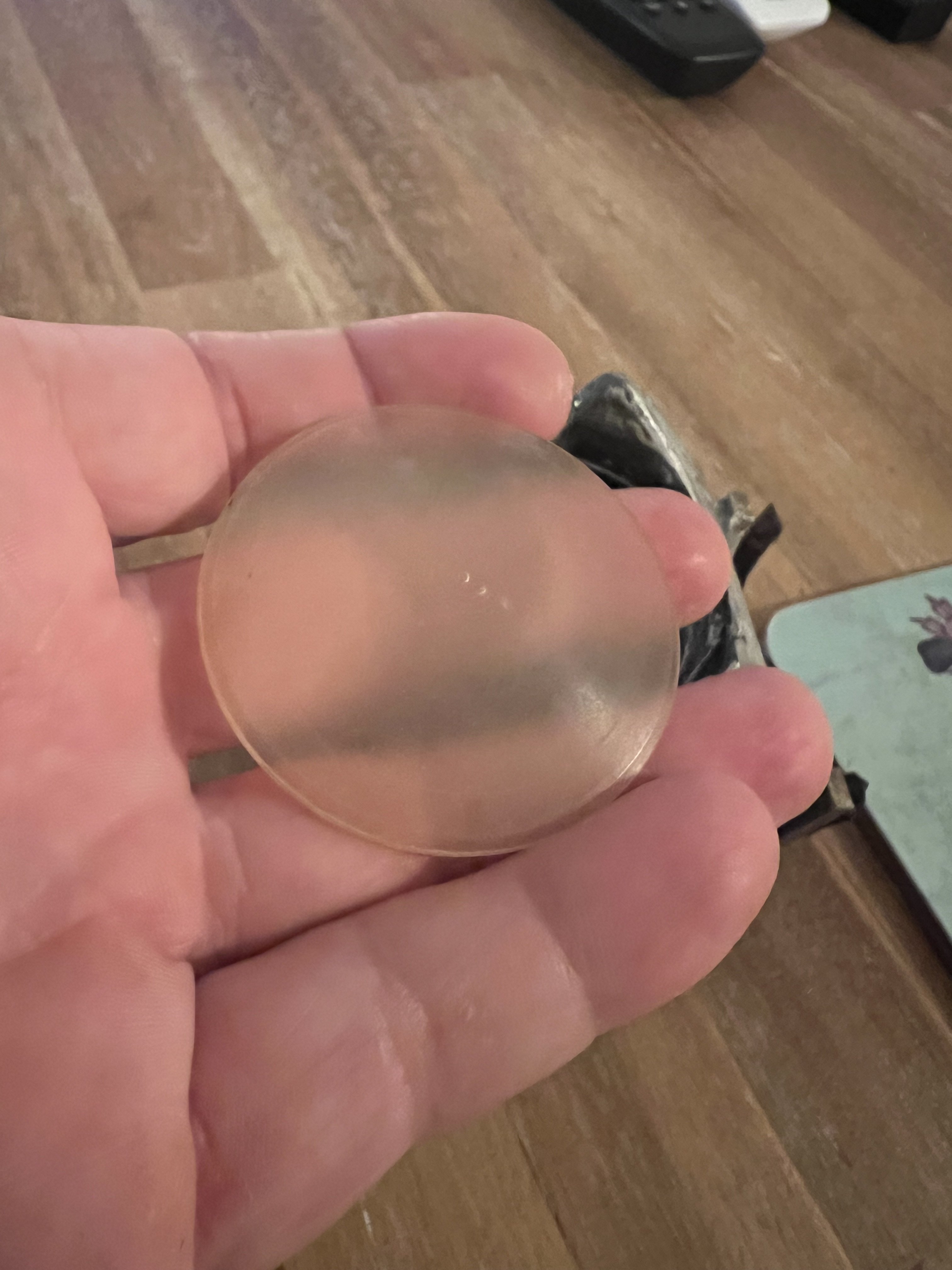

Printed the transparent glass too. Now for a lot of polishing and after care to get it properly transparent



[JeroenPeters]

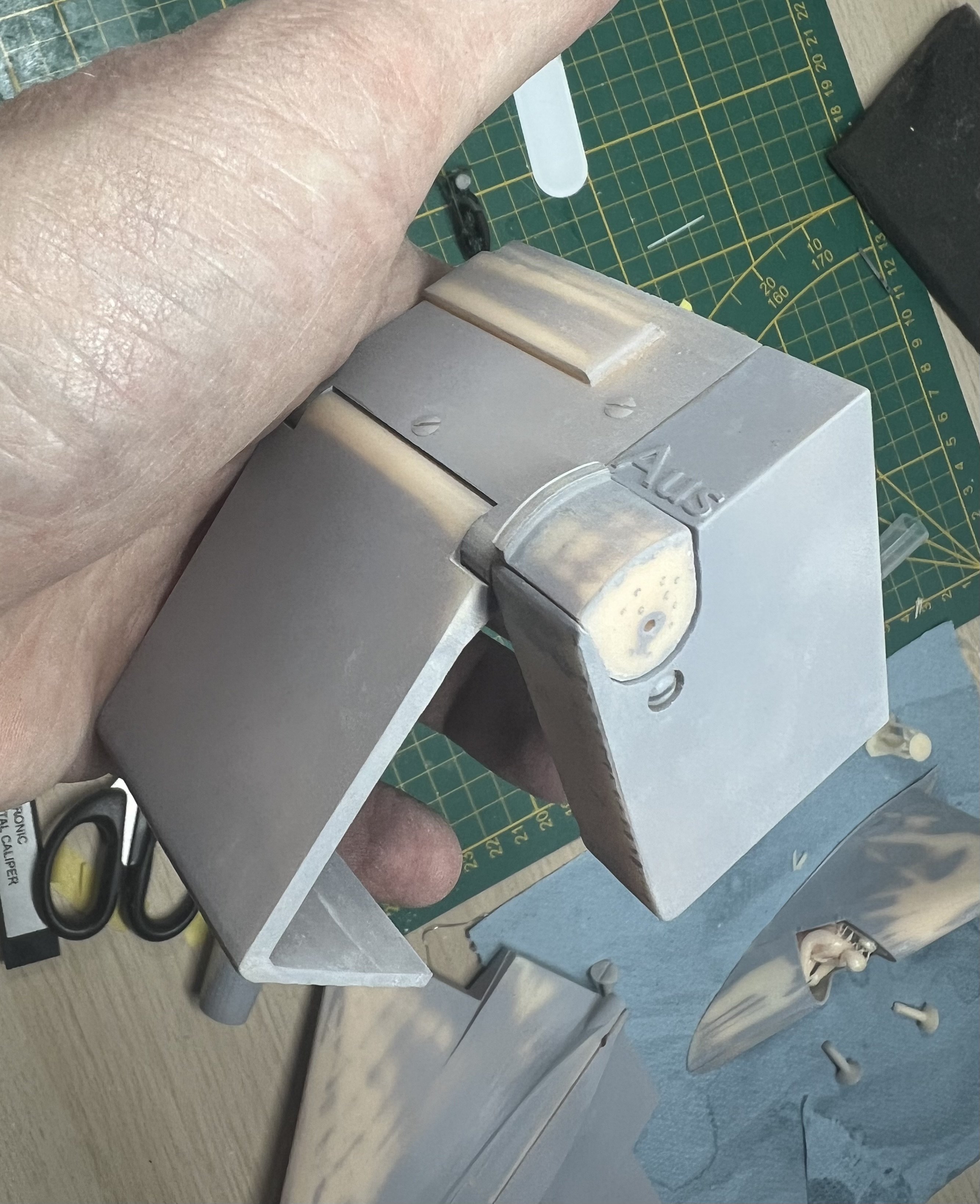

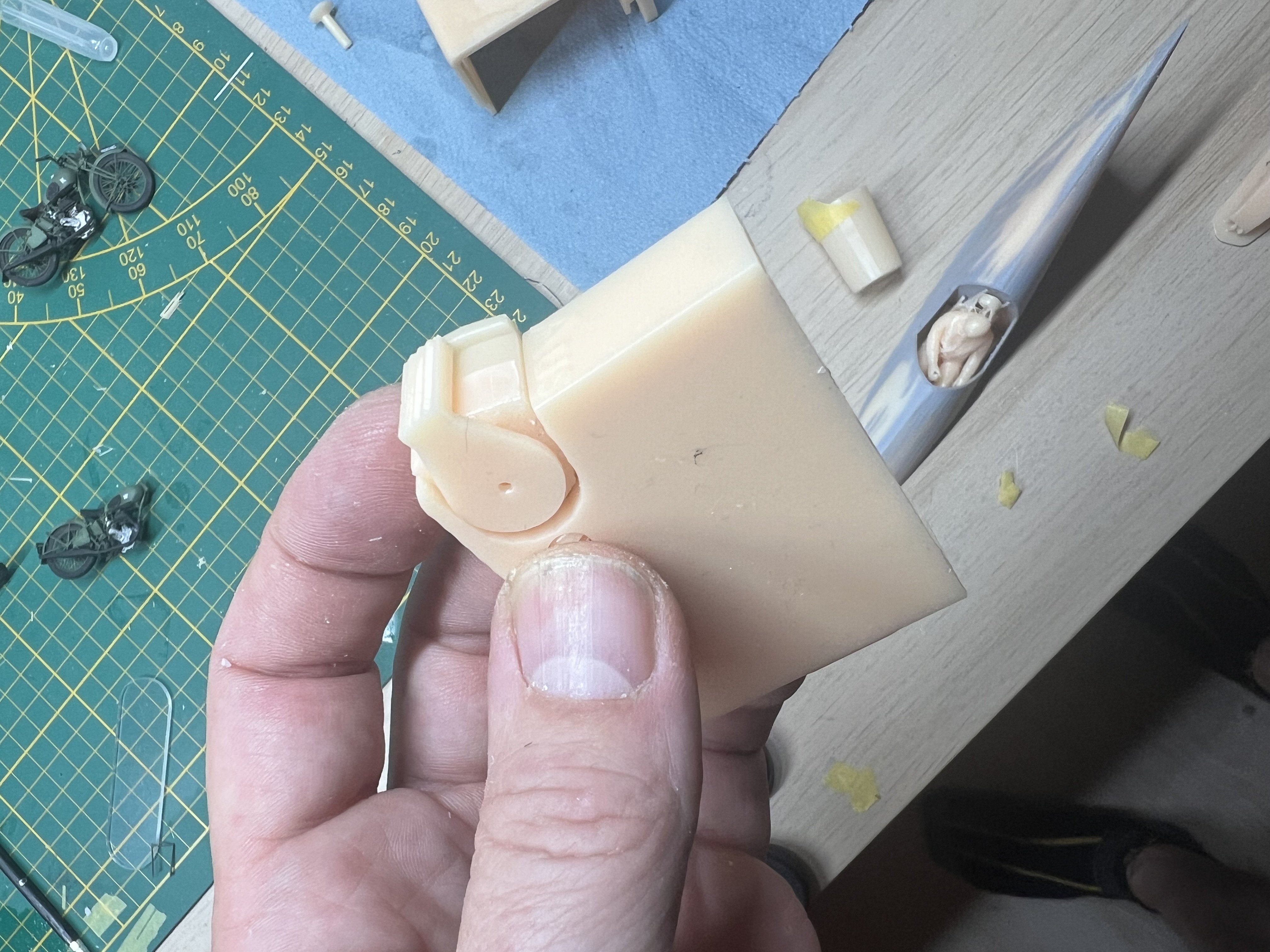

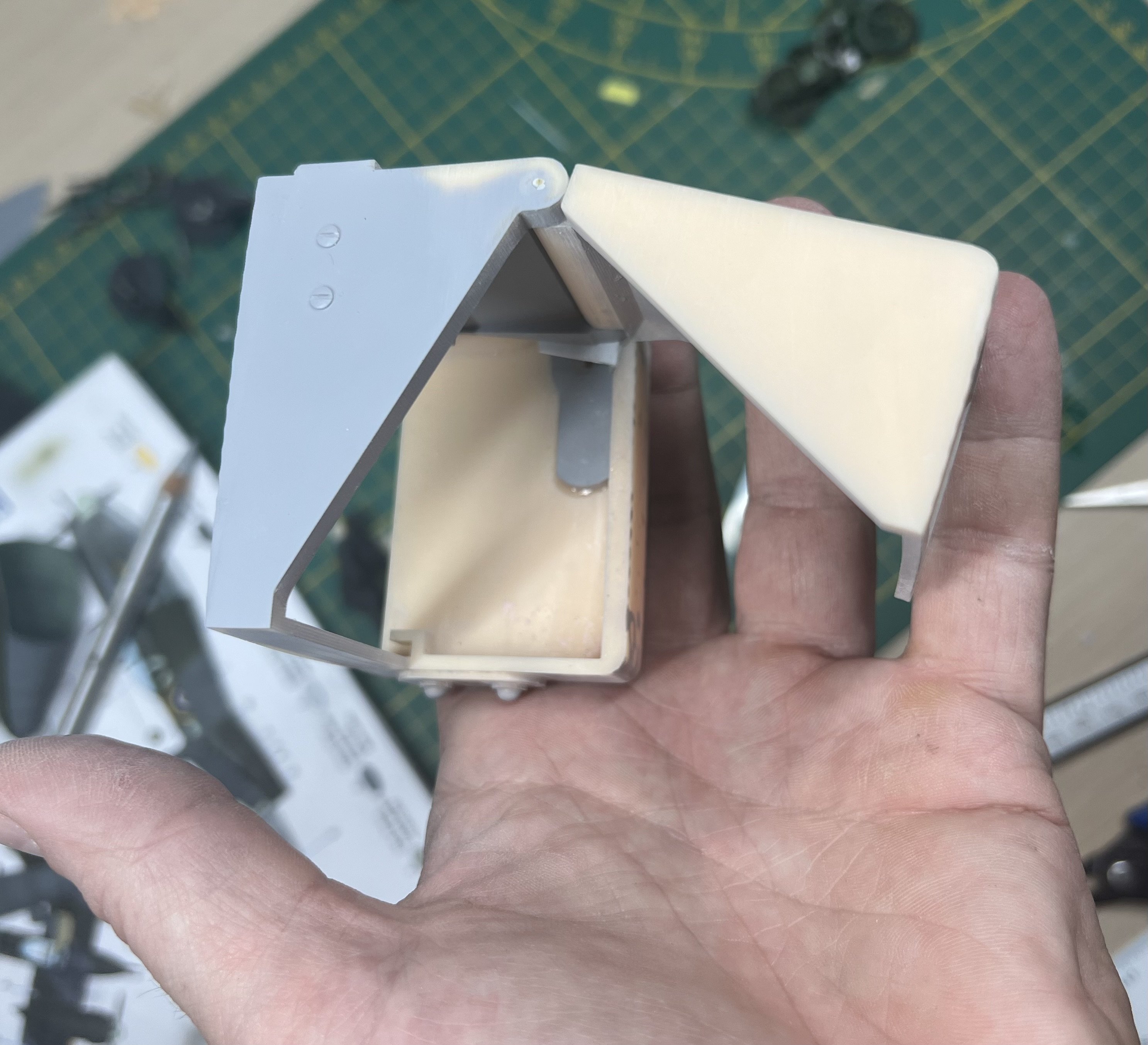

Assembling and sanding the box. Made a hinge from copper rod.



[Count0]

wow



[JeroenPeters]

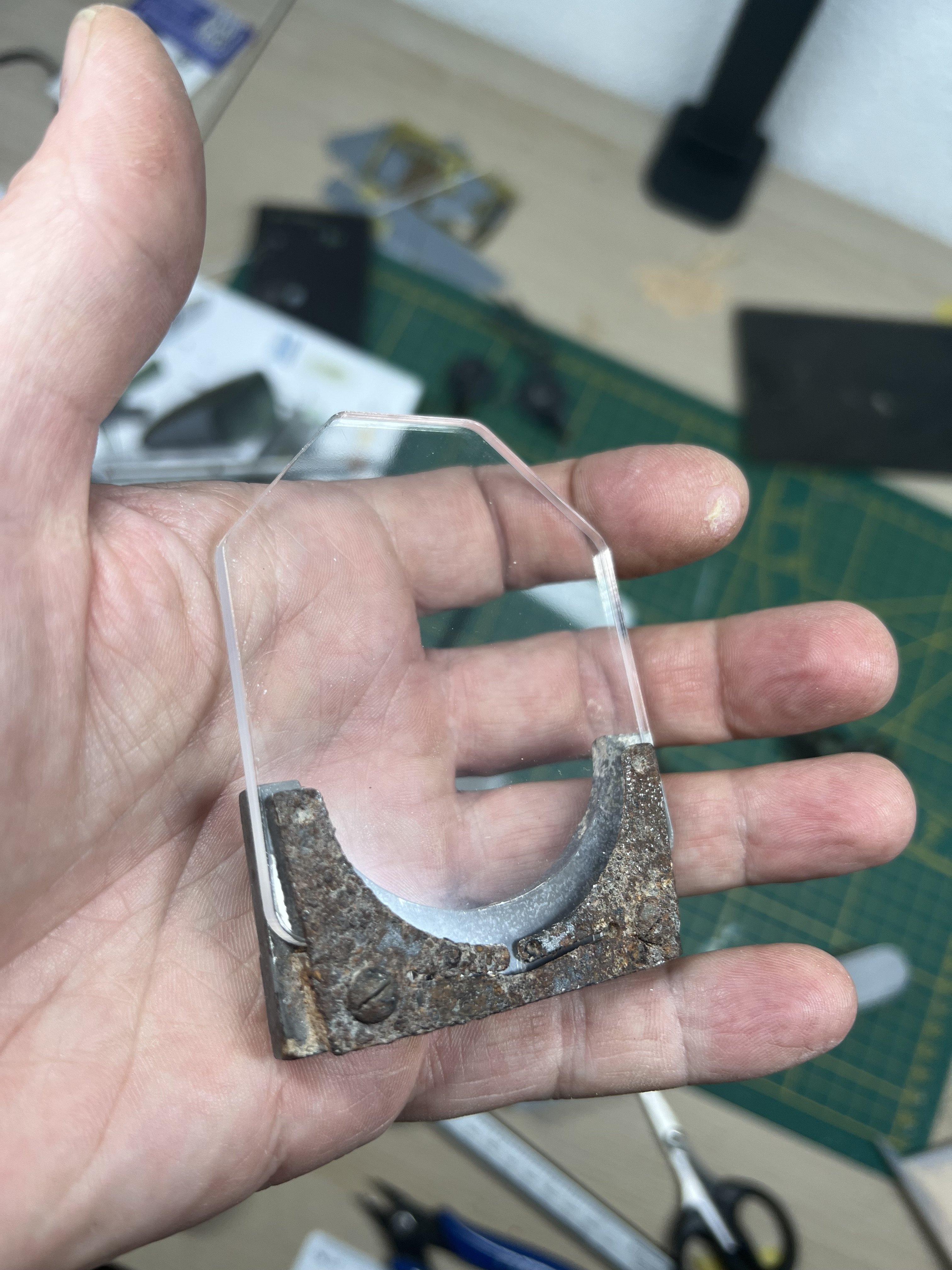

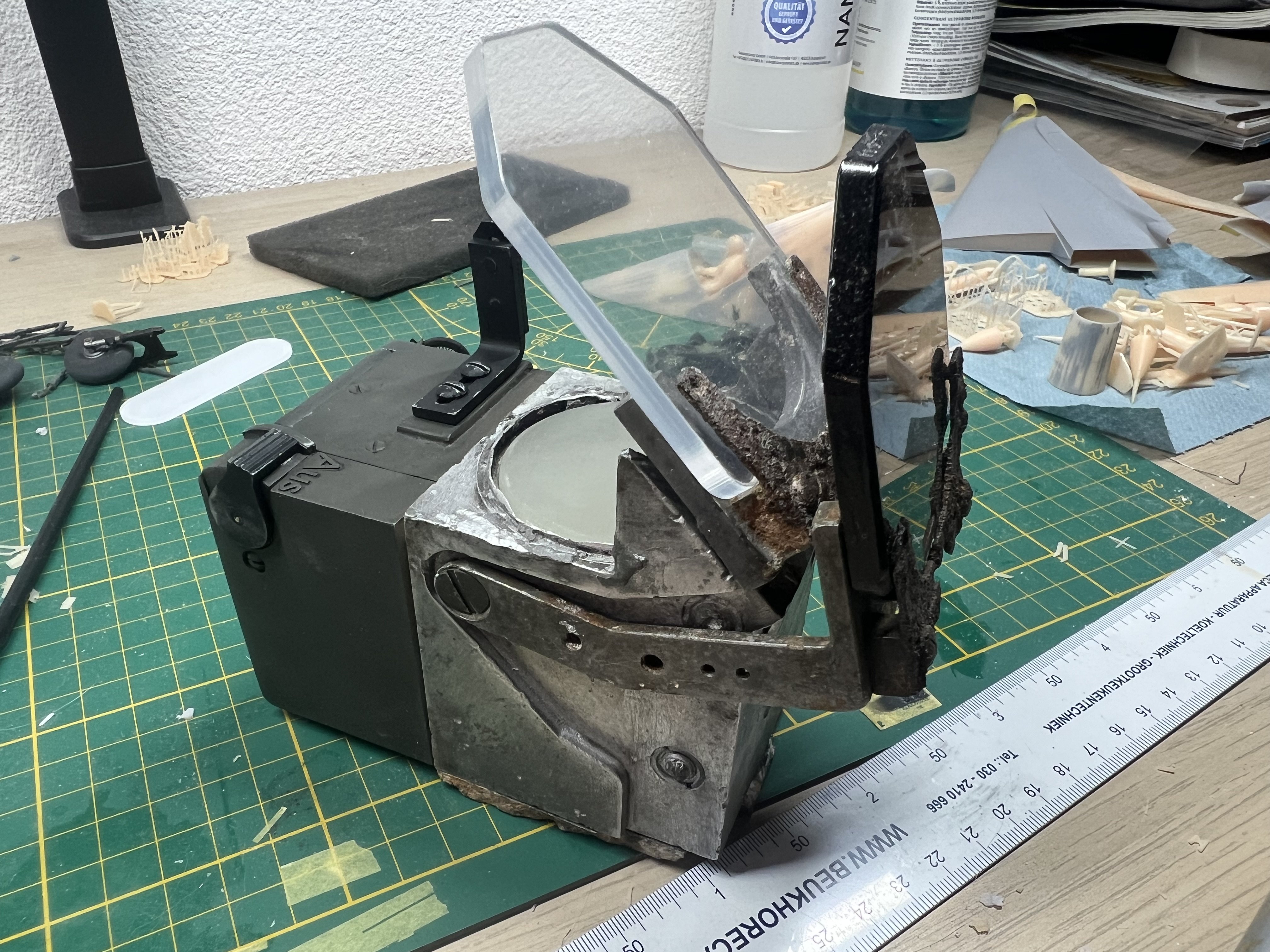

Figured life is too short for polishing and had the clear glass lasered from acrylic transparent plastic. Only need to sand the edge in an angle.



[JeroenPeters]

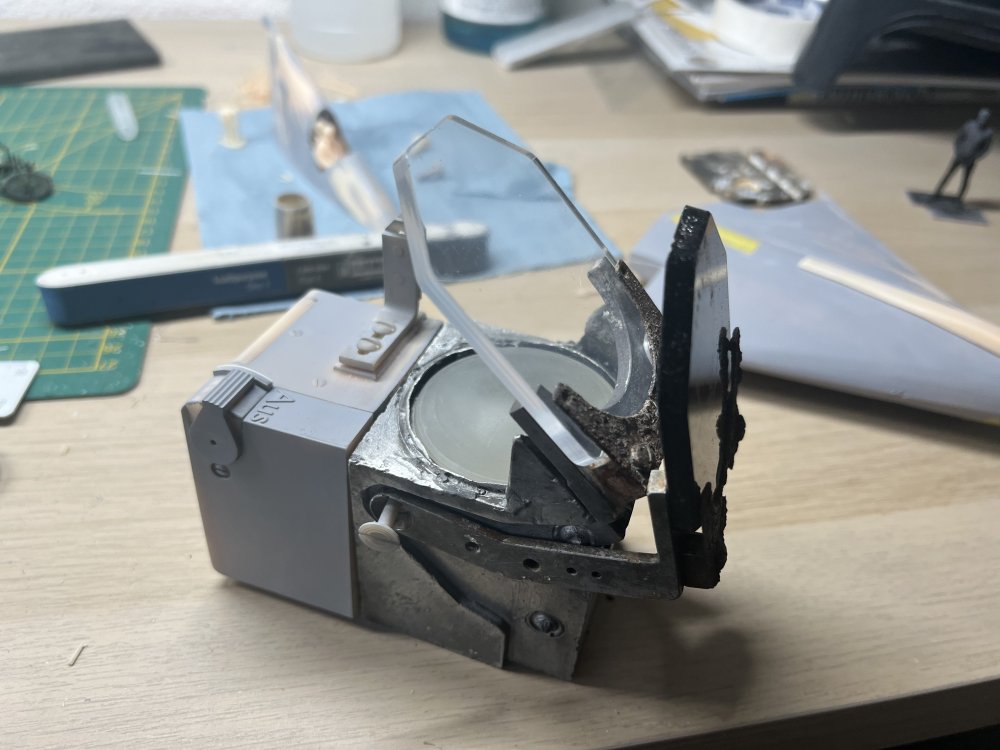

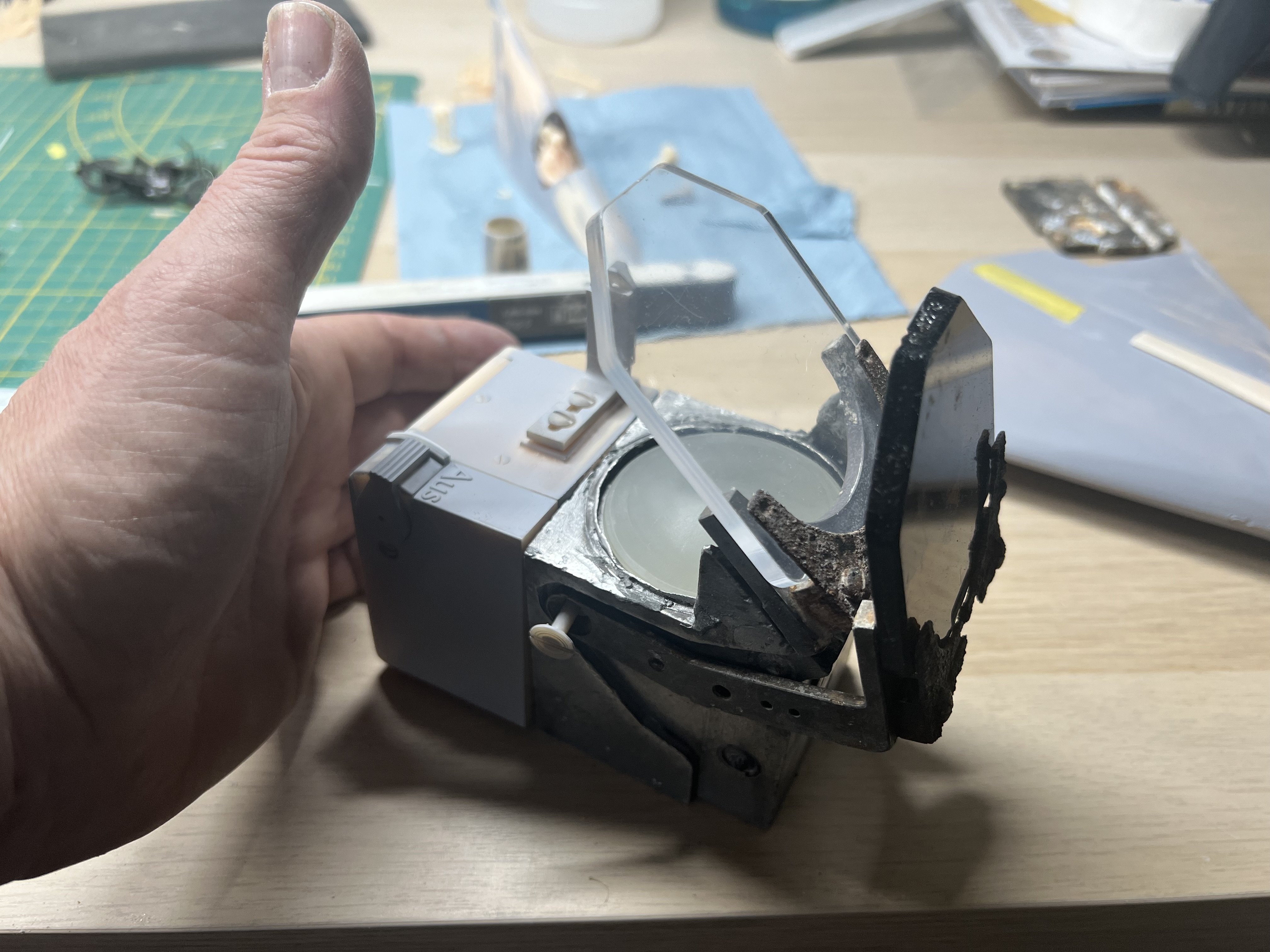

First paint



[GusMac]

Wow, that looks brilliant Jeroen. If I didn't know, I don't think I'd be able to tell that wasn't 100% original.

[BlrwestSiR]

Unreal. Can't tell the resin from the real.parts.

So, I guess this mean you're going to start 3D printing a 1/1 cockpit now?



[JeroenPeters]

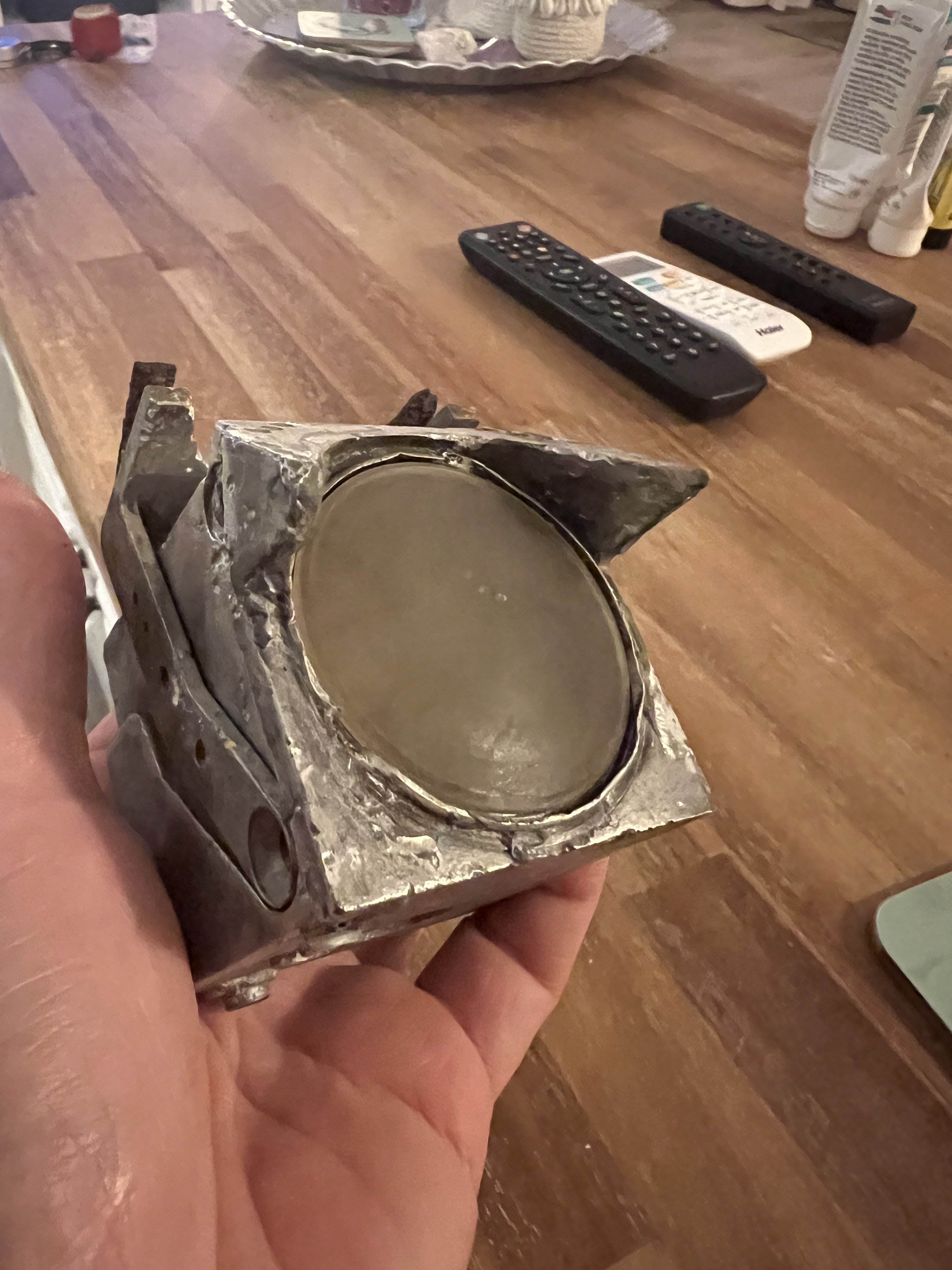

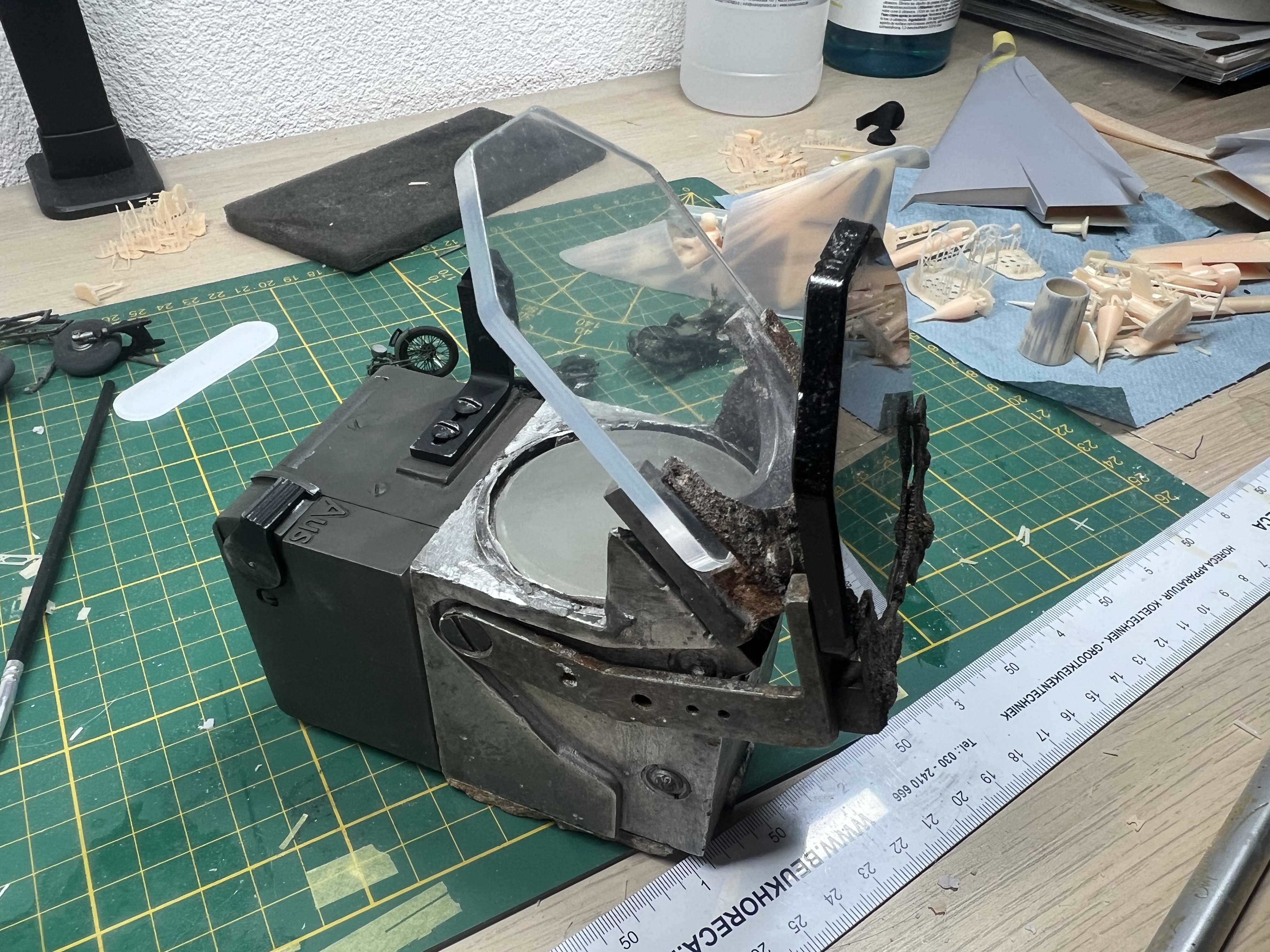

Done. Bought a 5cm diameter lense to fit snuggly in the gunsight. Ready for the cabinet.



[GusMac]

Looks great. Something different for the display case.

[crazypoet]

Simply gorgeous work!
