Wingnut Wings 1/32 Jeannin Stahltaube


Recommended Posts

Hi folks.

Ever since gawping open mouthed at Mike Grant's lovely DH-2, in a prior issue of Airfix Model World, I've nursed an ambition to have a go at the trompe l'oeil effect Mike expertly rendered, giving the illusion of a semi translucent wing, revealing some sight of the structures within.

The superb taube from Wingnut seemed a perfect foil to try a little French 'slight of airbrush'.

First thing that whacks you in the kisser, when you lift the lid is the amazing moulding achievements in the wings. Backlighting here reveals the wafer thin flexing 'aileron' portion and the 'fingers' within.




The tank in the forward cockpit was a fair target for abuse; here 'worn effects' liquid, some brush scrubbing and heat from a hairdryer distressed, cracked and flaked the top colour. A little clear varnish was misted over to gently 'fix' the damaged paint.

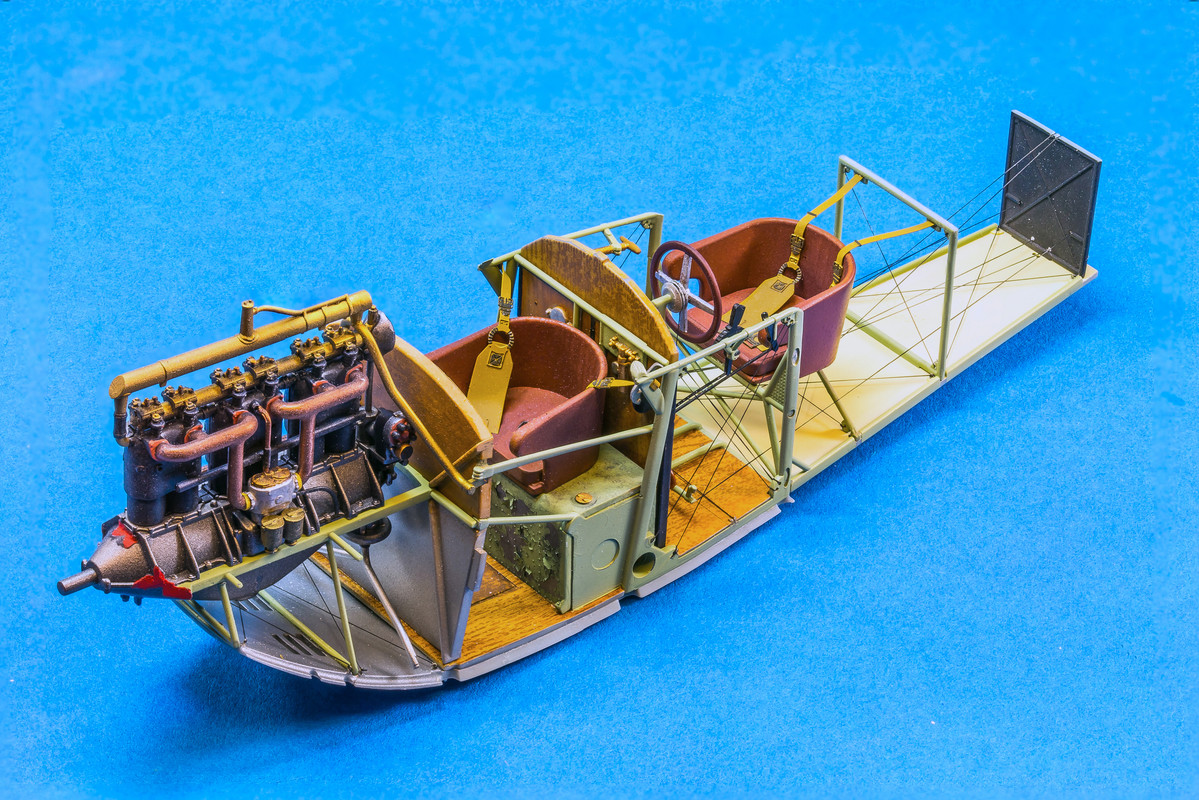

The fully assembled and rigged interior includes a portion of the lower fuselage. As per other WW kits it's a snug fit but correctly aligned, it all slots in.

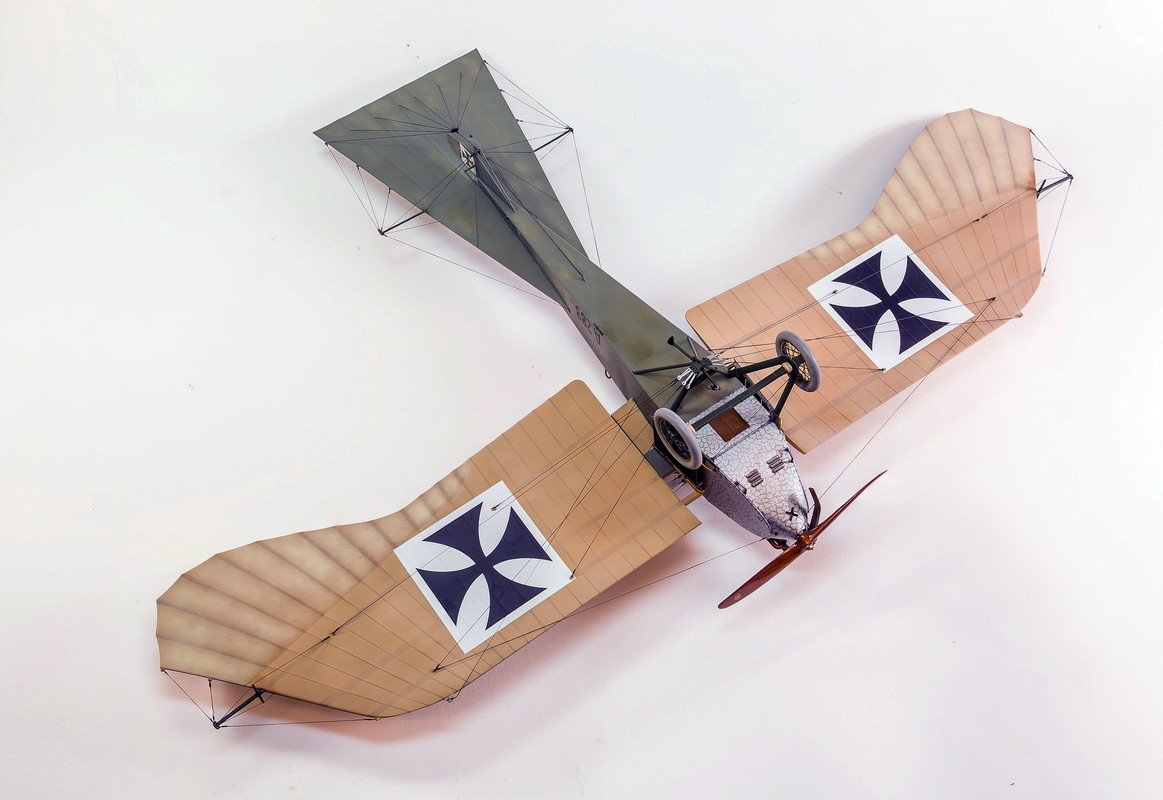

The trompe l'oeil paint, viewed from above the inverted model...

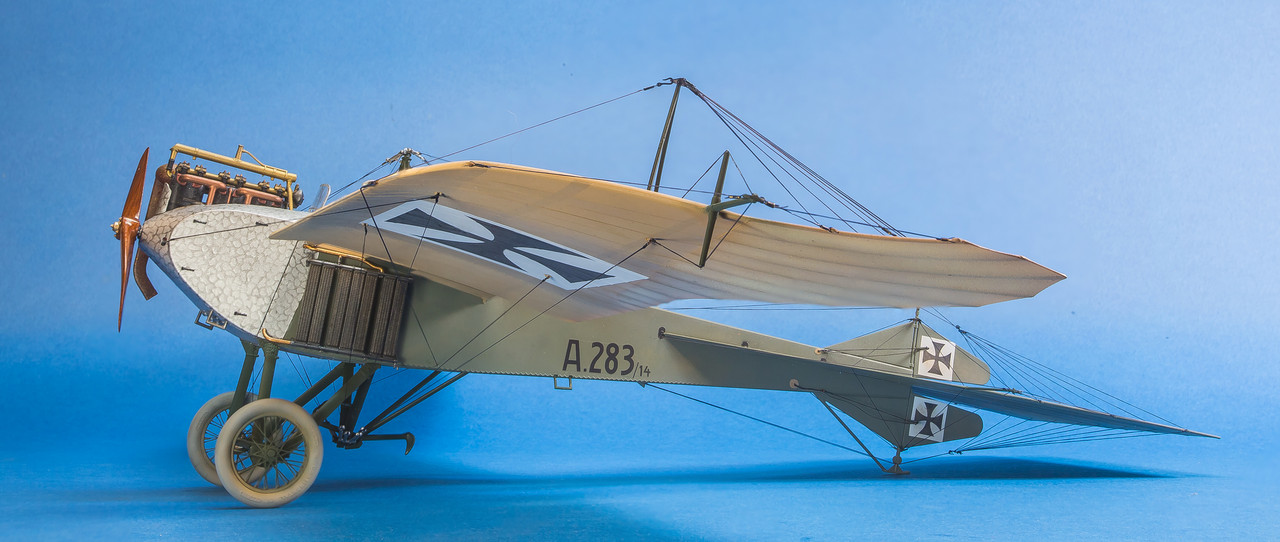

...and then as nature intended.




The build guide had a couple of period images that revealed the 'turned' cowling in the way depicted here, so the WW methodology was bypassed for a homespun approach that mimicked the photographs without dependency on the direction of the light.




While the taube is a rigging junkie's dream, I recognise it may, at the same time, dissuade others from taking the plunge because of the perceived complexity. No need to fear it though, if you apply a few basic rules - rig the fuselage first, leaving the wings off until that's done / add the wings and rig the lowers first / rig the top sections / do all the rigging from the centre first, working outwards / use wire eyelets, tiny sections of brass tube and elastic rigging thread for safe, dependable lines and anchors.




Always a huge buzz to see your latest in print and you'll find the nine page coverage of the taube in the latest (November) issue of Airfix Model World.

Wish you all well with your own projects! Till next time.



Steve



  • Like 5
Link to comment
Share on other sites

If you look at a finished model and nothing is sticking out and everything is blending in perfectly you know you are speaking about a winner. This is a truly magnificent build and the techniques involved where used with great skill.

Cheers Rob
