sandbagger Posted June 1, 2022 Author Share Posted June 1, 2022 Hi all, The weapons are now finished, although the observers Lewis will be finally positioned on its swivel mounting once the rigging etc is completed. The Lewis machine gun for the observer was mounted on a tubular swivel arm located centrally between the observer and pilots cockpits. The Lewis machine gun for the pilot was mounted to the side of the cockpit and angled to fire obliquely outboard. Both weapons and the spare ammunition drums are the ‘GasPatch’ Lewis Mk.1 stripped half heat sinks (32-32052). The observers weapon has a 0.3 mm diameter rod fitted to allow it to swivel on the gun mounting. Similarly the pilots weapon has a rod fitted to locate it into a hole drilled into the side of the fuselage. I chose not to use the kit supplied photo-etch mounting for the pilots weapon as is was way to flimsy. Both weapons were primed with 'Tamiya' Gloss Black (X1) then airbrushed with 'Alclad' Gun Metal (ALC120). Then ‘Mr. Colour’ Super Metallic - Super Iron (203) was dry brushed over the weapons. Finally 'Tamiya' Hull Red (XF9) was applied to the handles and 'AK Interactive' Brown Leather (AK3031) to the drum straps. A light wash os 'AK Interactive' Kerosene (AK2039) was applied over the ammunition drums. Mike 3 2 Link to comment Share on other sites More sharing options...
sandbagger Posted June 6, 2022 Author Share Posted June 6, 2022 Hi all, On most BE2c aircraft, linen was wrapped around the four fuselage cabane struts and the landing gear struts. This was done to protect the struts and to help prevent the wood from splitting. To represent the linen wrapping I used cut thin strips of plumbers Polytetrafluoroethylene (PTFE) tape. This tape is by nature very thin and will self-grip to tools and your fingers, so patience and repeated cutting will be necessary. The tape was secured in position using thin CA adhesive. Then airbrushed with 'Alclad' Light Sheen (ALC311), treated with 'Flory Models' Grime wash and finally clear coated again. Mike 6 1 Link to comment Share on other sites More sharing options...
npb748r Posted June 8, 2022 Share Posted June 8, 2022 hope this helps, close up of the real thing taken this afternoon. neil 6 1 Link to comment Share on other sites More sharing options...
sandbagger Posted June 9, 2022 Author Share Posted June 9, 2022 12 hours ago, npb748r said: hope this helps, close up of the real thing taken this afternoon. neil Thanks Neil, Is this at the RAF Museum at Hendon, Mike 1 Link to comment Share on other sites More sharing options...
npb748r Posted June 9, 2022 Share Posted June 9, 2022 Hi Mike, it's Stow Maries WW1 airfield museum in Essex. They also have an Albatros and an Avro 504 on site. For anyone with interest in WW1 aircraft it is worth a visit as the site is virtually unchanged since the RAF left it after the end of the war. It's not massive but it is unique I think as unlike other ex-WW1 airfields this has not been developed and stands as it did the day they left - albeit with a 100 years of wear ! https://www.stowmaries.org.uk/ cheers neil 3 Link to comment Share on other sites More sharing options...
sandbagger Posted June 9, 2022 Author Share Posted June 9, 2022 Hi all, Well, the most difficult part of this model build, the top engine cowl, is done. Without going into detail (as it's covered in my build log), I had to effectively scratch the cowl. The kit supplied photo-etch or resin cowls were discarded. I used the centre section of the photo-etch panel, annealed and bent into shape. The retaining straps from the cowl onto the cylinder head bolts, the cylinder baffles and the fire wall were made from 0.2 mm thick plastic card. The centre support strut under the cowl and into the engine block is painted 0.4 mm diameter tube. Now it's onto pre-rigging, Mike 7 1 Link to comment Share on other sites More sharing options...
harv Posted June 9, 2022 Share Posted June 9, 2022 Really nice work !....harv 1 Link to comment Share on other sites More sharing options...
sandbagger Posted June 13, 2022 Author Share Posted June 13, 2022 Hi all, Just a few updates. The bomb racks, wheels, interplane struts and propeller. I'm now finishing off the eight 'Hale' heavy case Mk.II/C bombs, Mike 5 1 Link to comment Share on other sites More sharing options...
Administrators Clunkmeister Posted June 14, 2022 Administrators Share Posted June 14, 2022 On 5/30/2022 at 6:05 AM, sandbagger said: Hi all, PLAN B. Damaged CDL decal, fuselage decals removed. Black squadron stripes airbrushed, fuselage and 'Lift Here' decals replaced. 'Flory Models' Dark Dirt and Grime clay washes applied. Sealed with 'Alclad' Light Sheen (ALC-311) clear lacquer. Hopefully a more dirty, 'war weary' finish. Mike Never let a crisis go to waste! What a great recovery! 2 Link to comment Share on other sites More sharing options...
sandbagger Posted June 14, 2022 Author Share Posted June 14, 2022 Hi all, A couple more updates. The photo-etch camera mounting, which represents the CFS Mk.II/C mounting. Also the three fuselage windows are done. The photo-etch frames for the two square side windows were secured in position over the created openings, using thin CA adhesive. I then infilled the frames with 'Microscale' Krystal Kleer, which once cured leaves a transparent film. The opening in the larger rectangular window is too large to apply Krystal Kleer straight off. Therefore I cut a very thin strip from the supplied windscreen acetate sheet. The strip was just long enough to span across the centre, underside of the photo-etch frame. This effectively creates two smaller openings for applying the Krystal Kleer. The frame was then added to the fuselage in the same manner used for the side windows, Mike 6 Link to comment Share on other sites More sharing options...
sandbagger Posted June 14, 2022 Author Share Posted June 14, 2022 Hi all, The eight 'Hale' 20lb heavy case MkII/C bombs. The red and green stripes were decals taken from another model kit. Mike 5 1 Link to comment Share on other sites More sharing options...

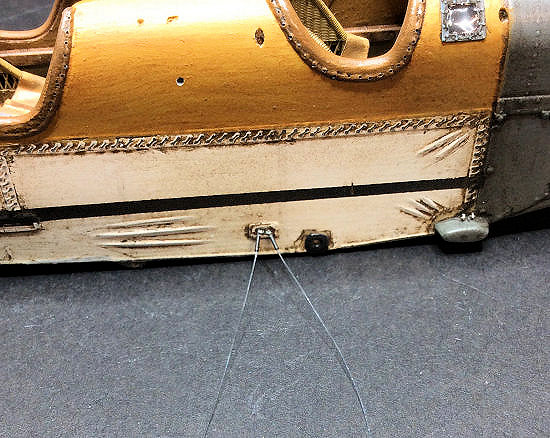

sandbagger Posted June 18, 2022 Author Share Posted June 18, 2022 Hi all, The pre-rigging is done. The aileron, rudder and elevator control rigging will be fitted after the wings have been fitted and final rigged. That way the exposed control lines have less chance of being damaged during handling. Also the landing gear and rigging will be fitted later, Mike 6 Link to comment Share on other sites More sharing options...
KevinM Posted June 19, 2022 Share Posted June 19, 2022 Mike that is looking very Nice indeed Sir you are the master of WWI builds in my book. Link to comment Share on other sites More sharing options...
sandbagger Posted June 20, 2022 Author Share Posted June 20, 2022 Hi all, Tricky to fit but now the pre-rigged upper wing has been fitted. I've kept the temporary elastic bands over the wings. This is to keep them the wings restrained until the rigging is done. The solid lower wings can flex slightly on their locating rods, which can cause the strut joints to separate. Now onto the final rigging, Mike 4 1 Link to comment Share on other sites More sharing options...

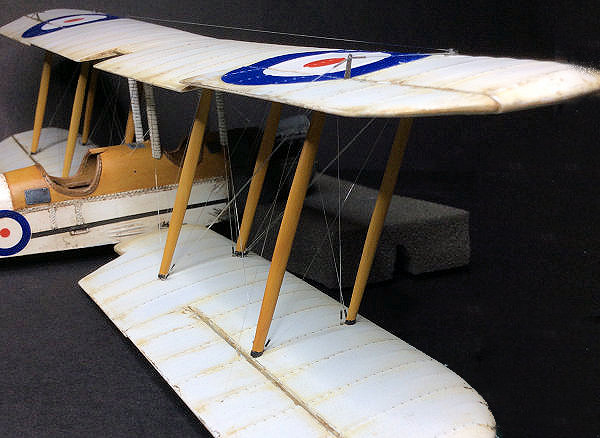

sandbagger Posted June 23, 2022 Author Share Posted June 23, 2022 Hi all, The wings are now fully rigged. This includes twin flying wires, single landing wires, incidence wires, wing brace wires, drag wires and cabane strut cross and fuselage bracing wing wires. I've yet to airbrush the rigging to knock back the shine.. Next up is fitting and rigging the landing gear so as to lift the wings and prevent contact damage to the aileron controls (when fitted). Then it'll be ailerons, rudder, elevator and their control line rigging. Mike 4 1 Link to comment Share on other sites More sharing options...
HubertB Posted June 24, 2022 Share Posted June 24, 2022 I think I have found an image of your « helper » at work, Mike Hubert 4 Link to comment Share on other sites More sharing options...
sandbagger Posted June 24, 2022 Author Share Posted June 24, 2022 3 hours ago, HubertB said: I think I have found an image of your « helper » at work, Mike Hubert Hmmmm - not him - his rigging is not aligned in some areas 😆 Mike 1 2 Link to comment Share on other sites More sharing options...
sandbagger Posted June 24, 2022 Author Share Posted June 24, 2022 Hi all, The aileron control line have now been rigged. It's difficult to make out on the photographs as it's a larger models to focus on. Next up is the landing gear before I move onto the rudder and elevator controls, Mike 2 1 Link to comment Share on other sites More sharing options...
sandbagger Posted June 24, 2022 Author Share Posted June 24, 2022 Hi all, The kit supplied landing gear comprises two ‘V’ struts and the axle/fairing. The axle is intended to be glued to the bottom of the two ‘V’ struts. However, there is nothing to retain the axle at the bottom of the struts, except the CA adhesive under the axle and onto the bottom of the struts. The weight of the model bearing down on the axle and wheels with only the CA adhesive taking the weight is a joint failure waiting to happen. Therefore this needs to be addressed. Also the ’bungee’ suspension cords are retained between two discs on the ends of the axle, which are not represented in the kit. Finally the internal strengthening rod within the axle protrudes from either end for mounting the wheels. However, the protrusions do not go far enough into the wheels, which is another weak point. Onward, upward, Mike 3 Link to comment Share on other sites More sharing options...
belugawhaleman Posted June 24, 2022 Share Posted June 24, 2022 43 minutes ago, sandbagger said: Hi all, The kit supplied landing gear comprises two ‘V’ struts and the axle/fairing. The axle is intended to be glued to the bottom of the two ‘V’ struts. However, there is nothing to retain the axle at the bottom of the struts, except the CA adhesive under the axle and onto the bottom of the struts. The weight of the model bearing down on the axle and wheels with only the CA adhesive taking the weight is a joint failure waiting to happen. Therefore this needs to be addressed. Also the ’bungee’ suspension cords are retained between two discs on the ends of the axle, which are not represented in the kit. Finally the internal strengthening rod within the axle protrudes from either end for mounting the wheels. However, the protrusions do not go far enough into the wheels, which is another weak point. Onward, upward, Mike Perhaps you could recreate the bungee system with lead wire while at the same time it would reinforce the assembly. Just a thought. Anyway nice work so far. 1 Link to comment Share on other sites More sharing options...
sandbagger Posted June 24, 2022 Author Share Posted June 24, 2022 Yes, that's about the only way. I'm thinking using copper wire for support then follow with representing the bungee cord over that. I think lead wire may be too weak, Mike 2 Link to comment Share on other sites More sharing options...
sandbagger Posted June 25, 2022 Author Share Posted June 25, 2022 Hi all, Landing gear and tail skid now done. I managed to twist and pull the axle metal rod from the axle fairing. This was replaced with a brass rod, which was longer to fit deeper into the wheels. The axle retainer discs for the bungee suspension cords were cut from 0.2 mm thick plastic card with a central hole to fit onto the axle rod. The axle assembly was held into the 'V' struts with CA adhesive, backed up with 0.2 mm diameter annealed copper wire. The bungee cord, represented by 'EZ' line White (heavy), was then wrapped across and around the axle ends, between the retainer discs. The model now needs to be held by the fuselage. Therefore, before adding the elevator and rudder controls and wires, I'll need to fit the remaining parts to the forward fuselage. Mike 2 1 Link to comment Share on other sites More sharing options...
sandbagger Posted June 26, 2022 Author Share Posted June 26, 2022 Hi all, A few more updates. Bombs and bomb control quadrant and cables added. Hand operated fuel pressure pump added. Engine exhausts with retaining frames added. Windscreens added. Upper wing straps added. Ammunition drum rack added. Pilot and observers machine guns added. The tail planes and elevators added. The fin and rudder added. Kit supplied 3D printed wing skids replaced with 0.6 mm diameter blackened Brass tube. The kit supplied CFS Mk.4 bomb sight has been binned. It was so frail it literally fell off in bits!! I'll need to make a representation of one instead. Also the propeller will be fitted (last). Finally the rudder and elevator controls and cables are still to be added. Mike 3 Link to comment Share on other sites More sharing options...
HubertB Posted June 26, 2022 Share Posted June 26, 2022 Wow ! Hubert 1 Link to comment Share on other sites More sharing options...
belugawhaleman Posted June 26, 2022 Share Posted June 26, 2022 Nice work! Link to comment Share on other sites More sharing options...
