sandbagger Posted November 1, 2020 Share Posted November 1, 2020 Hi all, As I'm waiting for the display case for the Bristol M.1C model, I thought I'd star the next model. This model will represent the Nieuport N.28C1, Serial No.6177, of the 95th Aero Squadron, 1st Pursuit Group, operating from Saints aerodrome, France, during 1918. This particular aircraft was flown by 1st Lt. Quentin Roosevelt, the son of the ex-President. As very little of the cockpit will be seen, I'll just add control lines and bracing rigging, so essentially 'out-of-box - I think Mike 7 Link to comment Share on other sites More sharing options...
Bomber_County Posted November 2, 2020 Share Posted November 2, 2020 Mike you’re a machine........ 2 Link to comment Share on other sites More sharing options...
sandbagger Posted November 6, 2020 Author Share Posted November 6, 2020 Hi all, The fuselage for the Nieuport 28C1 is ready to be closed up. I did say this was to be an out-of-the box build, which it is. Well, apart from: Peach basket resin seat from 'Aviatic'. Floor frame and side frames cross bracing wires - 0.4 mm diameter Nickel-Silver tube (blackened) and 0.08 mm diameter mono-filament. Rudder and elevator control wires - 0.4 mm diameter Nickel-Silver tube (blackened) and 0.08 mm diameter mono-filament. 0.3 mm and 0.4 mm diameter lead wire ('PlusModel' - oil pulse meter pipe and starter switch wire. 0.4 mm diameter Nickel-Silver tube - control rod from mixture control quadrant. Two forward cockpit frames (under main fuel tank) and shoulder height slotted panels - from photo-etch 'PART' N28 set. Tachometer decal - 'Airscale' WW1 instrument set. Shoulder harness and lap straps - from 'Wingnut Wings' Sopwith Snipe photo-etch set. The supplied instrument panel was modified to represent the actual panel. Most kit versions are modelled on the panel in the NASM reconstructed aircraft, which had additional instruments fitted for test flights. The aircraft had Tulip wood diagonal crossed strips, as opposed to the traditional Nieuport metal cladding. This was replicated by scribing the internal surface of the fuselage halves. Paints used were 'Tamiya' acrylics, 'Mr. Colour' enamels and 'Alclad' lacquers. Finishes used were 'AK Interactive' engine oil wash, 'Flory Models' Grime clay wash and 'Alclad' Light Sheen lacquer. Now to close it up inside the fuselage, never to be seen again, Mike 6 1 Link to comment Share on other sites More sharing options...
sandbagger Posted November 6, 2020 Author Share Posted November 6, 2020 Hi all, That's it - all hidden, Mike 3 Link to comment Share on other sites More sharing options...
DocRob Posted November 7, 2020 Share Posted November 7, 2020 16 hours ago, sandbagger said: That's it - all hidden, A shame, you should have used only half of the fuselage . Cheers Rob 2 Link to comment Share on other sites More sharing options...
sandbagger Posted November 7, 2020 Author Share Posted November 7, 2020 Hi all, A few updates done. I've added some photo-etch detail to the fuselage - elevator exit openings, side access panel, top panel edges and the rivet ring on the engine cowl. I've also drilled out the openings in the carburettor air intake and both ends of the fuel 'Baden' type venturi exhauster. Also the basic engine, which I've replaced with a 'Wingnut Wings' Oberursel U.I engine, is finished apart from the ignition leads. The German Oberursel engine was a copy of the Le Rhone 9N engine. One difference was that the Le Rhone engine had twin spark plugs co-located on the side of each each cylinder. The Oberursel had twin sparks plugs, but at 90 degrees to each other. As neither the plugs or in fact the cylinder heads will be seen once the engine cowl is fitted, I've left the plugs as they are. Mike 3 1 Link to comment Share on other sites More sharing options...
Administrators JeroenPeters Posted November 8, 2020 Administrators Share Posted November 8, 2020 Very nice. I was always hoping Wnw would release the whole Nieuport range, but this looks amazing just the same! 2 Link to comment Share on other sites More sharing options...
sandbagger Posted November 12, 2020 Author Share Posted November 12, 2020 Hi all, Just a quick update. The kit supplied wing struts are only located into the wings with a short styrene ‘stubs’. Also the fuselage struts are ‘butt’ joints to the fuselage and have no locating stubs. Therefore I chose to add reinforcing rods to the wings and struts to better locate, align and support the wings. The wing struts will locate into the wings with 0.5mm diameter rods. The fuselage struts will be located with 0.4 mm diameter rod. I've also added anchor points at all of the fuselage and wing rigging points, Mike 5 1 Link to comment Share on other sites More sharing options...
sandbagger Posted November 13, 2020 Author Share Posted November 13, 2020 On 11/8/2020 at 9:54 AM, JeroenPeters said: Very nice. I was always hoping Wnw would release the whole Nieuport range, but this looks amazing just the same! Copper State Models have a good range of Nieuport 17 and 23 models in 1:32nd scale, Mike 4 Link to comment Share on other sites More sharing options...

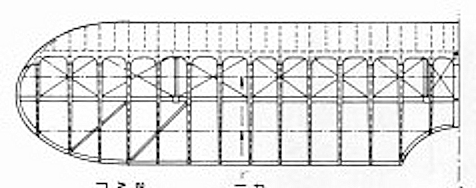

sandbagger Posted November 16, 2020 Author Share Posted November 16, 2020 Hi all, I've made a start on the painting phase. The undersides of the wings would have the faint shadows from the leading edge fairings, wing ribs, rear spar and cross bracing wires. The upper surfaces hardly at all as they were brush painted with coloured dopes. I thought this time, I'd try representing these shadows with a slightly different technique. I airbrushed the undersides with 'AK Interactive' white primer, which was required for when I apply the 'Aviattic' clear CDL decals. Then I over sprayed a light coat of 'Tamiya' Smoke (X19). I scanned the internal structure of both with and rescaled the scans to the correct side. Then coloured the structure with contrasting colours and saved them as JPG files. These were uploaded into my 'Cricut' Explore Air 2 crafters cutter and the parts not required were deleted. I then cut the masks using 'Artool' Ultra Mask sheets. These were placed onto the wings with the parts not required removed. A light coat of the white primer was airbrushed and then the masks removed. The bracing wires were drawn on the wings using a pencil. Finally a light, blend coat of the white was airbrushed to blend everything. The surfaces still need to be gloss coated before the CDL decals are applied, Mike 5 Link to comment Share on other sites More sharing options...
sandbagger Posted November 18, 2020 Author Share Posted November 18, 2020 Hi all, Just a quick update. I've painted the camouflage scheme, using 'Tamiya' acrylics thinned with 'Mr. Colour' levelling thinners 400. Most of the colours were mixed to create as near as possible the shades of colours. Airbrushed between 'UHU' white tack 'worms' with additional masking to protect from over spray. Mike 8 Link to comment Share on other sites More sharing options...
Jeff Posted November 18, 2020 Share Posted November 18, 2020 Man, Mike , you are an ARTIST ............. incredible work on the wings..... somewhat breath taking actually..... 1 Link to comment Share on other sites More sharing options...
sandbagger Posted November 19, 2020 Author Share Posted November 19, 2020 Hi all, I've applied the decals to the wing struts and the rudder from the ‘SuperScale’ WW1 Nieuport 28C-1 (MS320243) set. The pre-moulded lined wrappings around the struts were way to thick. I sanded them away and replaced them with white 1.5 mm wide white stripes from the ‘Xtradecal’ parallel stripes white (XPS2) set. Also applied are the wing decals, which are ‘Aviattic’ aged varnish CDL (ATT32094) linen effect decal undersides and Linen Weave Effect (ATT32236) on top surfaces. Mike 5 Link to comment Share on other sites More sharing options...
KevinM Posted November 20, 2020 Share Posted November 20, 2020 We need a bodafide trophy down in the corner!Mike you do some Nice work!So I take it this is a Copper model? 2 Link to comment Share on other sites More sharing options...
harv Posted November 20, 2020 Share Posted November 20, 2020 Cant believe I've been missing out on this ! Outstanding !......harv 1 Link to comment Share on other sites More sharing options...
sandbagger Posted November 20, 2020 Author Share Posted November 20, 2020 8 hours ago, KevinM said: We need a bodafide trophy down in the corner!Mike you do some Nice work!So I take it this is a Copper model? Hi Kevin, Thanks. If by 'Copper' model you mean 'Copper State Models', then no. It's the 'Roden' kit, Mike 3 Link to comment Share on other sites More sharing options...
sandbagger Posted November 22, 2020 Author Share Posted November 22, 2020 Hi all, Apart from the propeller, all of the decals have now been applied. Undersides using ‘Aviattic’ aged varnish CDL (ATT32094) over base colours. Top surfaces 'Aviattic' Linen Weave Effect (ATT32236) over base colours. Individual marking from the ‘SuperScale’ WW1 Nieuport 28C-1 (MS320243) set. Final sealing coat of 'Alclad' Light Sheen (ALC-311) lacquer. Now I'll need apply weathering before adding details, such as the retaining strap for the engine cowl and ring supports for the front of the machine gun cooling jackets. Then it'll be pre-rigging and start the construction, Mike 4 1 Link to comment Share on other sites More sharing options...
sandbagger Posted November 23, 2020 Author Share Posted November 23, 2020 Hi all, I've applied the 'Flory Models' Dark Dirt fine clay wash. Most will be removed to leave the desired weathered look, Mike 3 Link to comment Share on other sites More sharing options...
DocRob Posted November 23, 2020 Share Posted November 23, 2020 Now that's a kicking mule , bravo. Cheers Rob 2 Link to comment Share on other sites More sharing options...
sandbagger Posted November 23, 2020 Author Share Posted November 23, 2020 Hi all, Most of the clay wash has been removed to leave subtle dirt weathering. 'AK Interactive' Kerosene wash (AK2039) and Engine Oil (AK2019) applied around filler cap and on underside of fuselage, rear of engine cowl.. 'Tamiya' Weather Master Set A (Mud) and Set D (Engine Oil) sponged to the engine cowl, underside of lower wings and fuselage. Now to create the engine cowl retainer band and forward support rings for both machine guns, Mike 2 1 Link to comment Share on other sites More sharing options...
Jeff Posted November 23, 2020 Share Posted November 23, 2020 Wow, this is good............ I wish I had a 1/4 of that talent and skills you have................. wonderful to see these birds come together in such spectacular fashion.......... 1 Link to comment Share on other sites More sharing options...
sandbagger Posted November 24, 2020 Author Share Posted November 24, 2020 Hi all, Just a few tweaks to the fuselage and weapons. The engine cowl was secured to the fuselage with a metal strap around the rear edge of the cowl. To represent this strap, I used a strip of ‘Bare-Metal’ Matte Aluminium self-adhesive foil. This was then covered with 'Flory Models' Dark Dirt clay wash, to dirty it up, then sealed with 'Alclad' Light Sheen lacquer (AL-311). In-flight the main fuel tank was pressurised by a 'Baden' type venturi, which was connected to the tank by an air pipe. This was represented by drilling into the venturi and fuselage and adding 0.3 mm 'PlusModels' lead wire. The wire inside the venturi was painted Brass and the rest with 'Tamiya' Rubber Black (XF85). Both machine guns had elliptical blast deflectors, fitted below the muzzles and these are not represented on the replacement ’GasPatch’ weapons. The two machine guns were fixed to a mounting under the breach block and also supported at the fuselage by clamping rings around the front of their cooling jackets. The blast deflectors were cut and shaped from 0.2 mm thick plastic card and CA glued to the weapons. The rear gun mounts were made from 0.4 mm and 0.2 mm diameter Nickel-Silver tubes. The front mounts were also pinned to the fuselage with 0.3 mm tube. The front clamping rings were cut from 0.2 mm thick plastic card and CA glued to the cooling jackets. Mike 5 1 Link to comment Share on other sites More sharing options...
sandbagger Posted November 27, 2020 Author Share Posted November 27, 2020 Hi all, I've started on the pre-rigging, which for this model is all on the lower wings and fuselage. This is mainly because of the tight proximately of the anchor points at the wing roots for the twin flying wires. All done using, for a change, ‘Maxima’ Chameleon mono-filament 0.12 mm diameter. Turnbuckles are the usual 'GasPatch' 1:48th scale metal, Type C. The tubing is 0.5 mm diameter that was pre-blackened using 'Blacken-It' solution. I still have the rudder, undercarriage and under fuselage rigging to do before the upper wing can be fitted, Mike 3 Link to comment Share on other sites More sharing options...
sandbagger Posted November 28, 2020 Author Share Posted November 28, 2020 Hi all, Rudder pre-rigged with double wires on each side, Mike 1 1 Link to comment Share on other sites More sharing options...
sandbagger Posted November 28, 2020 Author Share Posted November 28, 2020 Hi all, Upper wing fitted. Although the outer struts located fully, the fuselage cabane struts were slightly clear of the underside of the upper wing. However, a bit of pressure and CA adhesive did the trick. Also the rigging, which is the next stage, will hold the wings together, Mike 5 Link to comment Share on other sites More sharing options...
