Another ZM Bf109G!


Bill_S
 Share

Recommended Posts

Hernia surgery last week - a couple of days after my local club's show/contest. Lots of time on my hands, so I decided to start this kit.


I don't build many Luftwaffe planes; this will be my first 109 since I built Revell's kit as a kid. I'm sticking with Hartmann's mount, and putting all the engine detail on in case I want to display it with engine cowls off.

I think I counted 57 parts for the engine assembly.

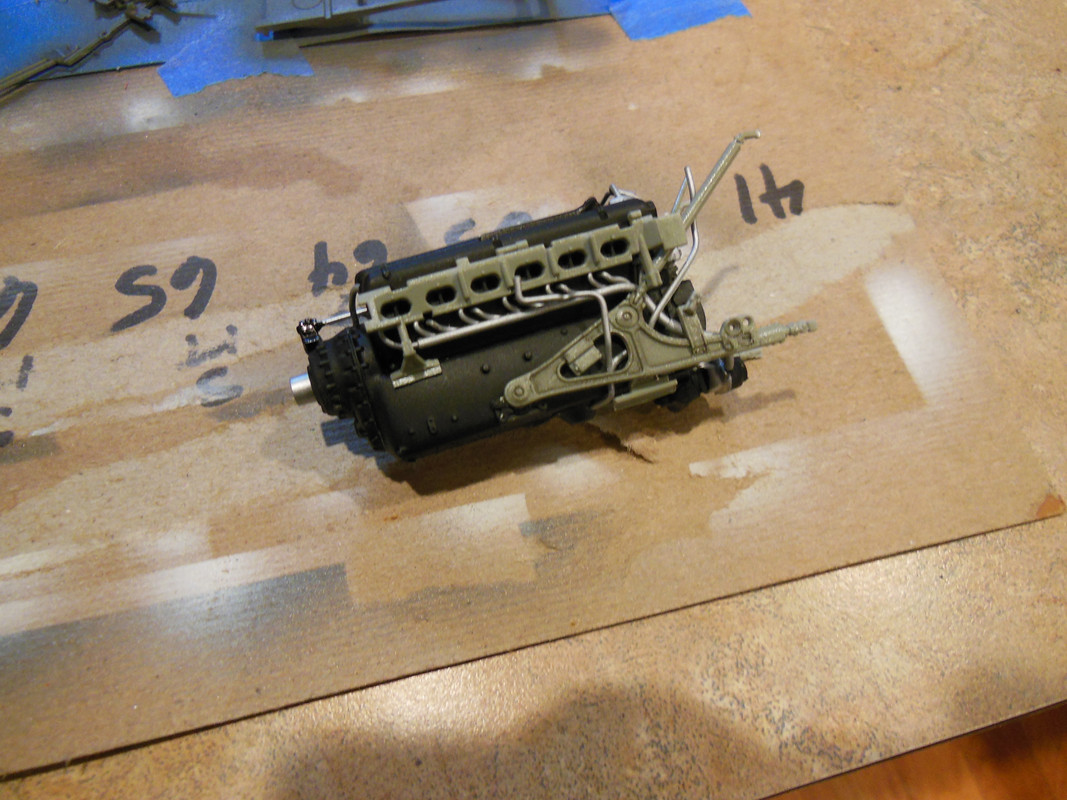

Still some plumbing to do on the engine, but everything fits great!



  • Like 14
  • Thanks 1
Link to comment
Share on other sites

Bill

Hoping your recovery is as fast as possible and the pain is easing up after the surgery.

Nice start on your ZM 109 .. engine assembly and bearer look spot on. I've been chomping at the bit to start mine but I need to first finish the Whirlwind. Just could be this might be a mini GB at this rate.

Will be following with great interest:popcorn:





  • Like 5
Link to comment
Share on other sites

8 minutes ago, Martinnfb said:

Nice start Bill, any particular aeroplane you're aiming for ? , or just OOB camouflage.

Cheers

Martin

With the exception of HGW belts, I plan on keeping this one OOB, Martin.

  • Like 5
Link to comment
Share on other sites

Thanks for the kind comments. I got a little sidetracked with the issues experienced by Gazzas... I'm a little farther along than Carl at this point, but I'm certain he'll soon eclipse me.

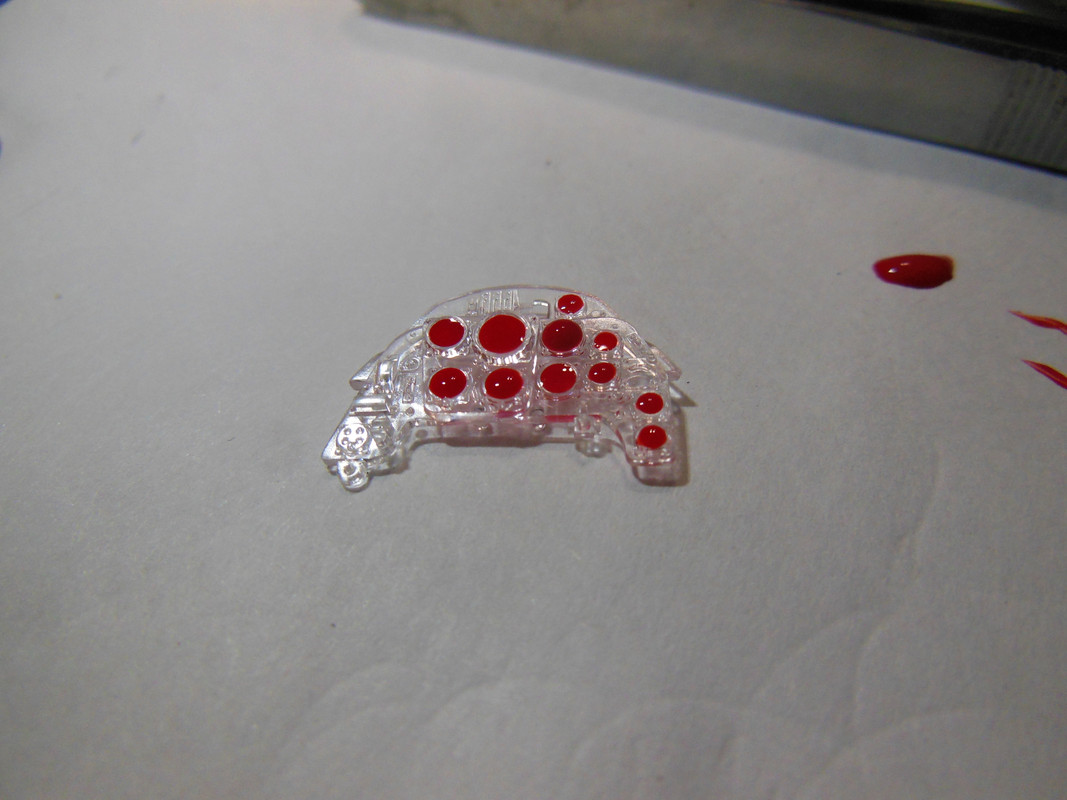

White glue thinned with a couple of drops of red food coloring.


It makes a great masking fluid; the red is useful for applying it to the clear IP.

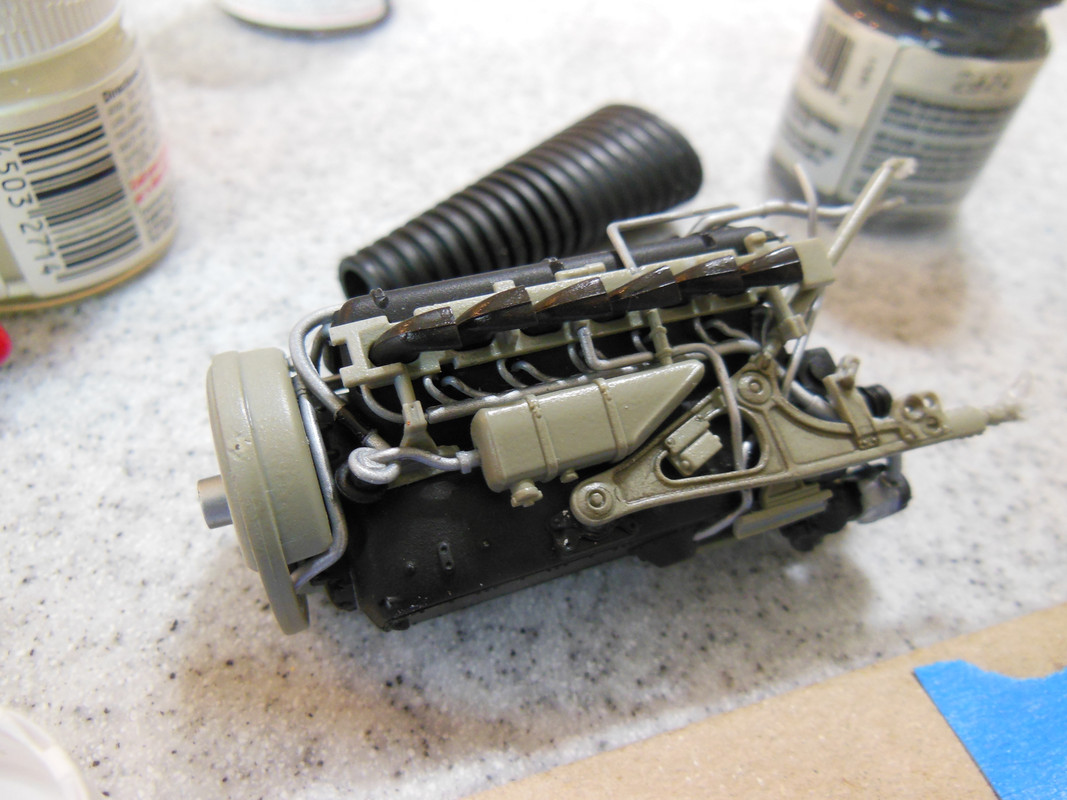

The engine (minus exhaust shrouds is complete.

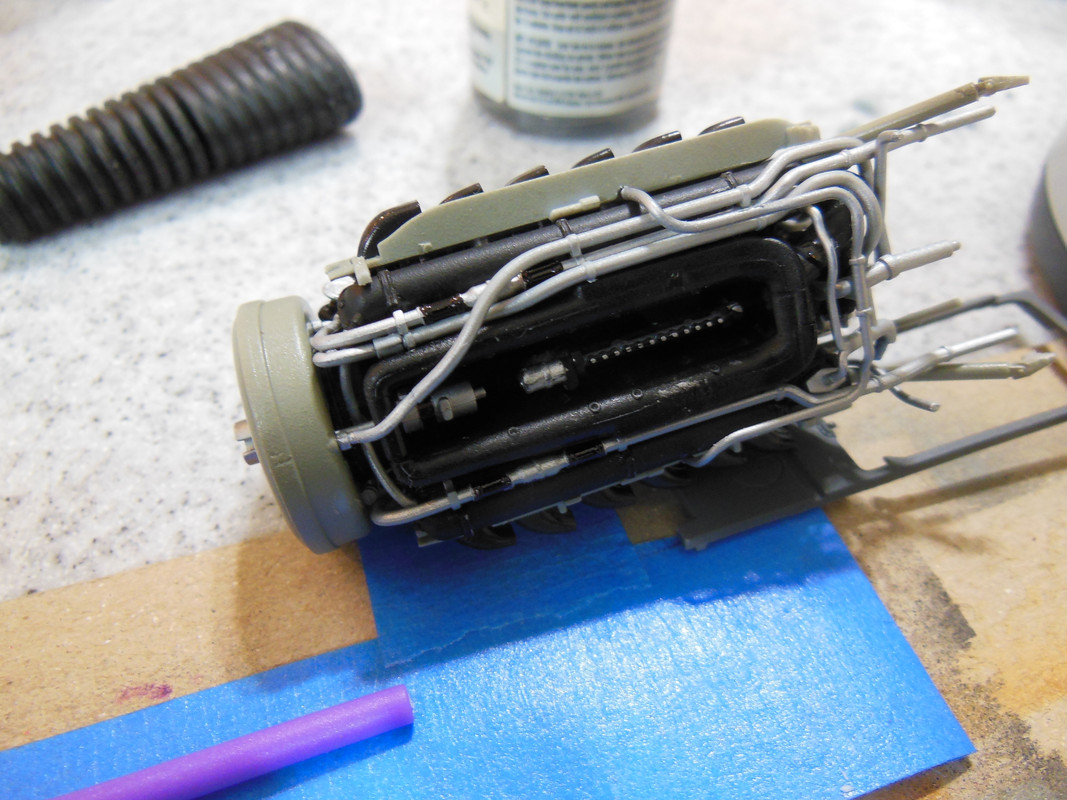

A lot of piping; it goes together very well.


I masked contact areas between the fuselage halves and the bulkheads to (hopefully) eliminate fit issues when the halve go together.


I don't know if it was necessary, but the halves go together without any issues.

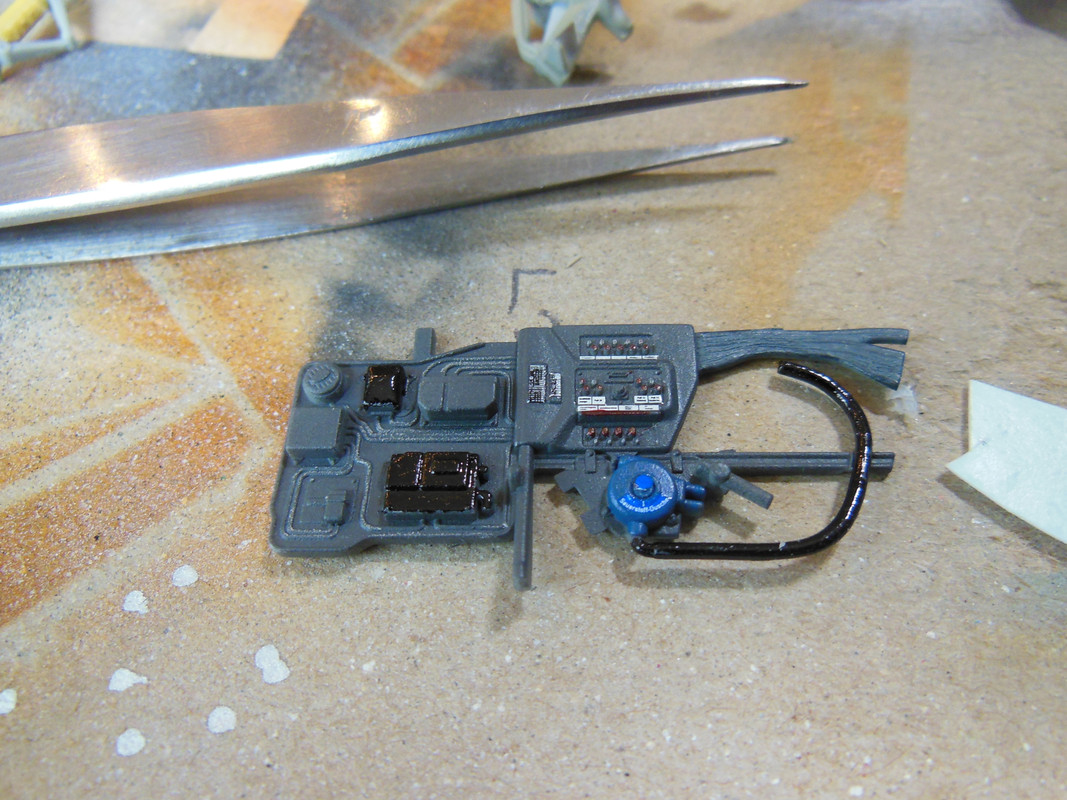

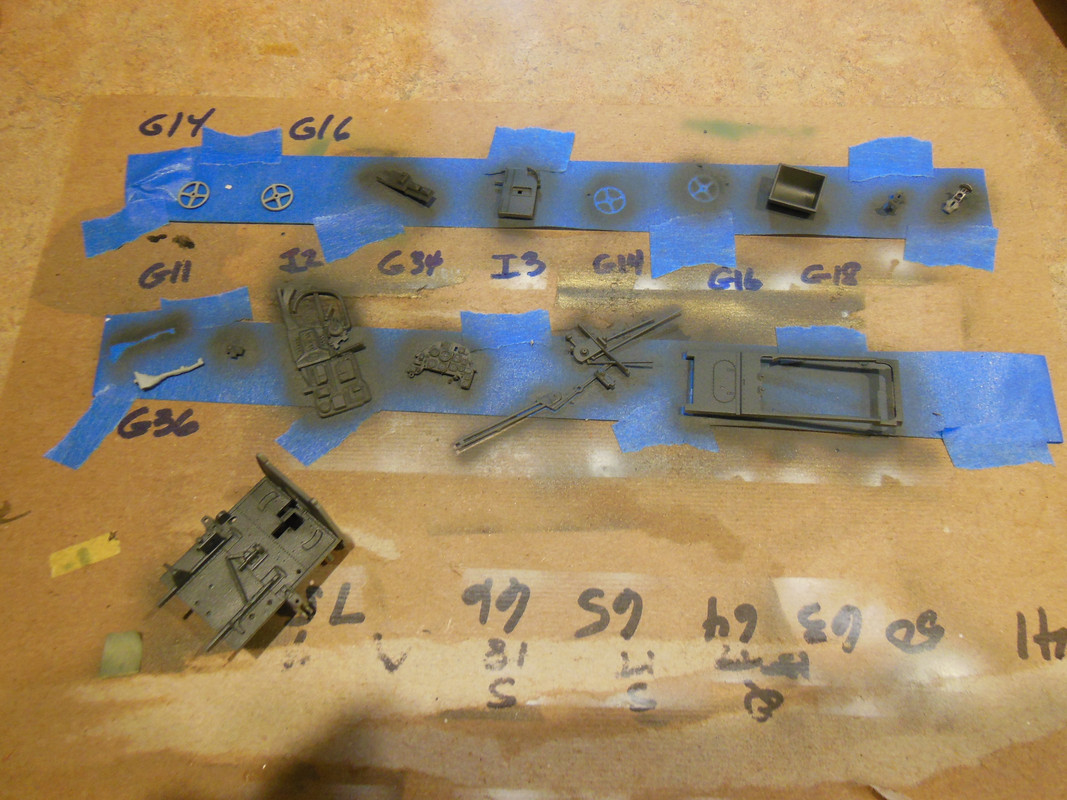

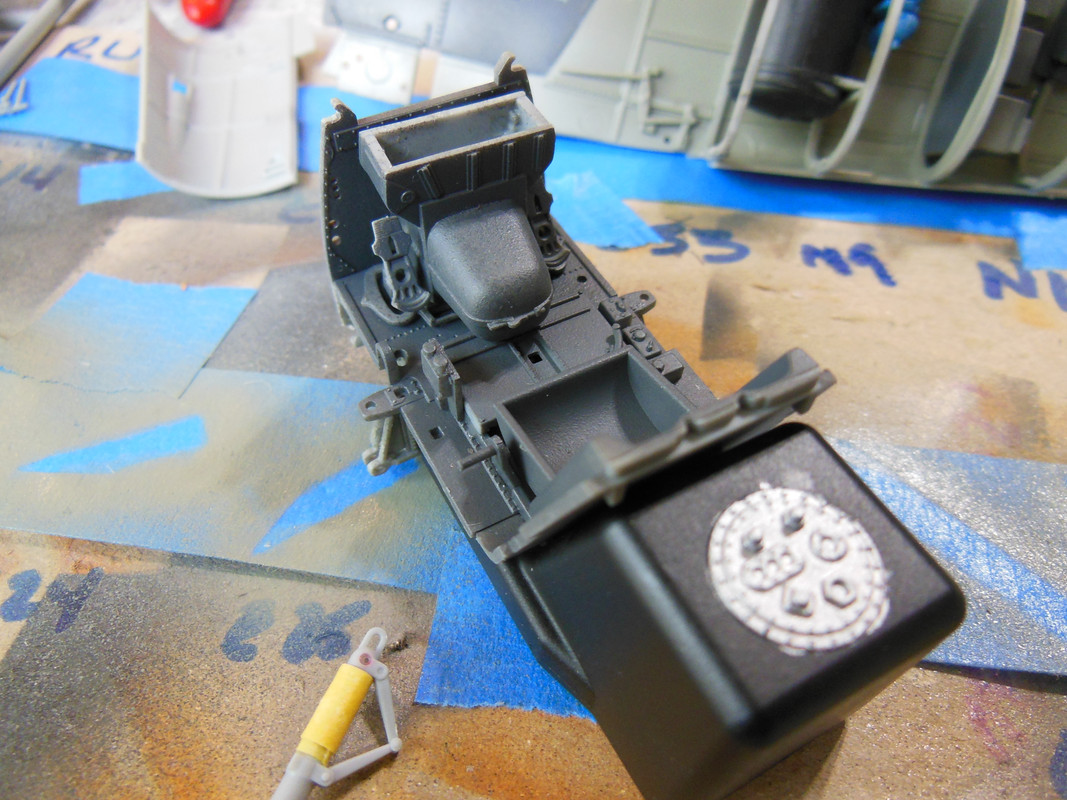

Quite a bit of the cockpit is done as well. Zero fit issues.



  • Like 13
  • Thanks 1
Link to comment
Share on other sites

Bill

Tremendous progress and your detail painting is exceptional. Glad to see you haven't had any fit issues and I'm sure, knowing now what to look for help you to be prepared and ready to adapt to what needs to be done. Looking mighty good.



  • Like 2
Link to comment
Share on other sites

There is something like a 109 G hype noticeably here lately :D. Nice detail work on engine and cockpit with yours. I don't mask the gluing surfaces on spars and other parts, but clean them with a swipe of a fiber pen, when it comes to WNW tolerances.

Cheers Rob

  • Like 4
  • Haha 1
Link to comment
Share on other sites

6 hours ago, GazzaS said:

Looks good, Bill!  are you going cowls open?

Thanks, GazzaS! I'm not sure yet. I prefer the buttoned up look; we'll see how the cowls fit.

  • Like 2
Link to comment
Share on other sites

I needed to finish the tail wheel assembly; it's the last piece prior to cementing the fuselage halves.

One little trick I've learned... I put a small piece of plastic wrap on the wheel (I do it any time a wheel is trapped by the strut). Pull it tight, and poke a couple of holes where the axle goes. It rips off very easily afterward.


I find myself using my Molotow pen less and less. I purchased a refill bottle and make a small puddle. Junk mail actually has a use!


I get better (and easier) coverage using a brush.


A side note: I was reading Peter's laments on the SH Whirlwind instructions. I brought this kit to my monthly club meeting for Show and Tell. What people were most impressed with was the instruction booklet!



  • Like 10
Link to comment
Share on other sites

Nice trick on masking the tailwheel. I'll have to remember that one.

For the tailwheel, it will go in place after the fuselage is together. I've tried it a couple time to confirm that. Just leave out the fairing and and it'll go in fine.



  • Like 3
Link to comment
Share on other sites

Bill, thanks for the tip on using the clear plastic wrap - going to give it a try on the Whirlwinds tailwheel.

I originally thought the same regarding the instructions - they look wonderful and complete. But once I was into the build, there are placement and clarity issues. Just curious if the comments were from guys who built the kit or just went through the box. I'm sure everyone will have their own opinion on the instructions, especially guys who are a more familiar with SH kits.





  • Like 4
Link to comment
Share on other sites

10 hours ago, Peterpools said:

Bill, thanks for the tip on using the clear plastic wrap - going to give it a try on the Whirlwinds tailwheel.

I originally thought the same regarding the instructions - they look wonderful and complete. But once I was into the build, there are placement and clarity issues. Just curious if the comments were from guys who built the kit or just went through the box. I'm sure everyone will have their own opinion on the instructions, especially guys who are a more familiar with SH kits.





Peter, I don't have the SH Whirlwind; the instructions I brought were from the ZM Bf109G15/U4. Most of the guy at the meeting had never heard of ZM, nor seen one of their kits. They were amazed by the ZM manual.

  • Like 4
Link to comment
Share on other sites

11 hours ago, Bill_S said:

Peter, I don't have the SH Whirlwind; the instructions I brought were from the ZM Bf109G15/U4. Most of the guy at the meeting had never heard of ZM, nor seen one of their kits. They were amazed by the ZM manual.

Never heard of Z-m?!

Do they live in some 1/72 backwater? 😮

  • Haha 5
Link to comment
Share on other sites

1 hour ago, nmayhew said:

Never heard of Z-m?!

Do they live in some 1/72 backwater? 😮

I have to give them a pass - many build only armor, and there are a number of car guys too. I'm the only one who builds large scale.

  • Like 3
Link to comment
Share on other sites

One of these days, I'm going to tackle the IP. In the meantime, I've started on the wings.


It's a pity it has to be covered.

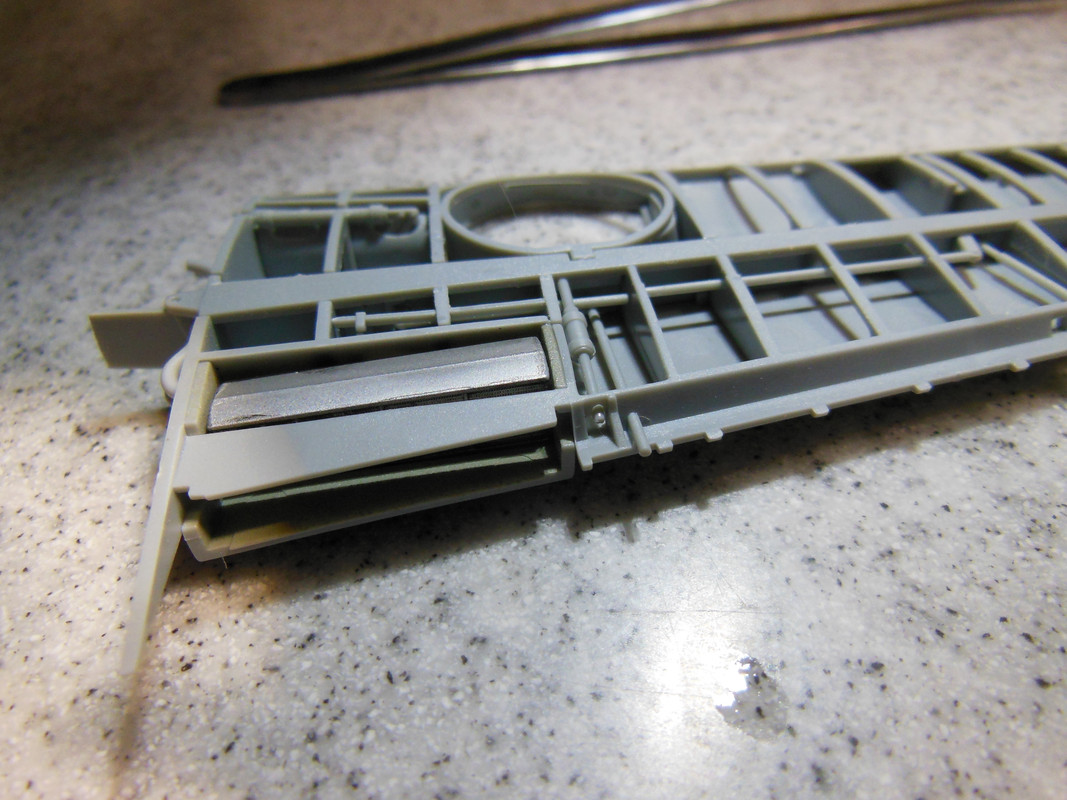

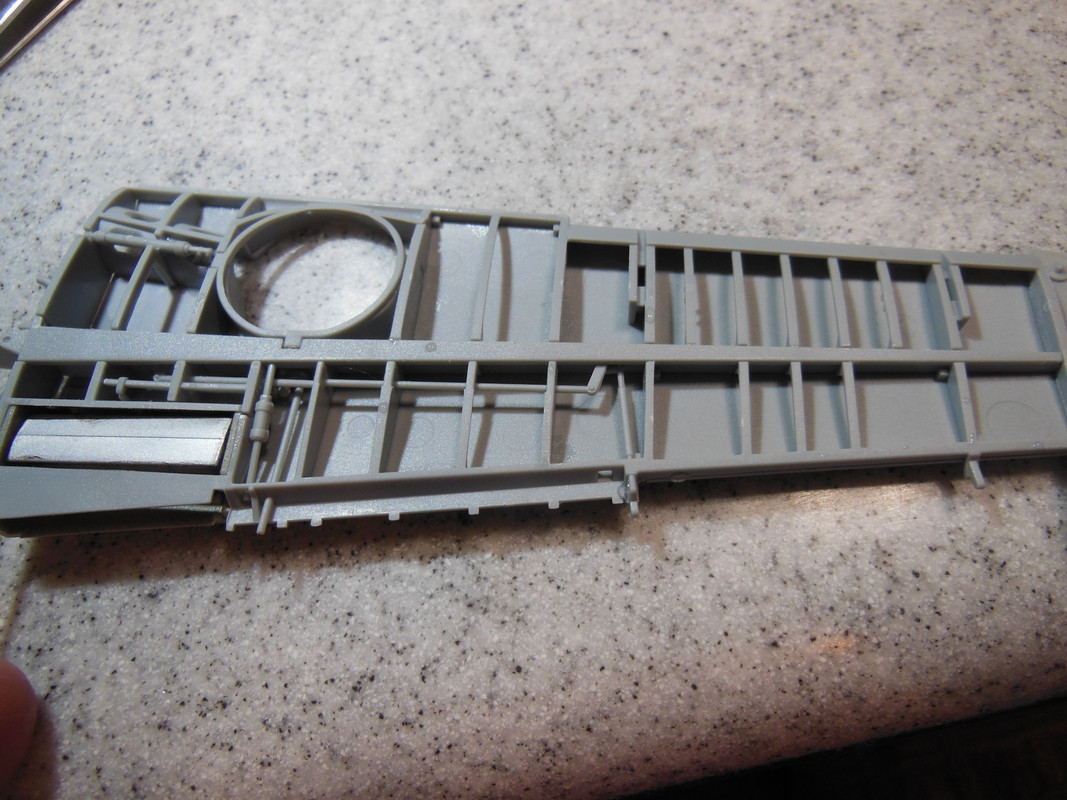

Lower wing panels fitted; no shims involved. I had a little bleed-through of Tamiya Extra Thin, but it's nothing a light sanding won't take care of.

The outer rear corner of the radiator sits a little proud, leaving a noticeable gap when I test fitted the upper wing skin.


Probably something I did.

Five minutes with a sanding stick, and all is well now.


Time for a little RLM02 on visible surfaces, and it will be hidden for eternity.

  • Like 8
Link to comment
Share on other sites
