sandbagger Posted October 4, 2020 Share Posted October 4, 2020 Hi all, After the trials and tribulations of several resin model builds recently, I thought I'd do a 'mojo' build. I've chosen the 'Special Hobby' 1:32nd Bristol M1.c 'Bullet'. This particular model build will depict the Bristol M.1c ‘Bullet’, Serial No. C4907 of No.150 Squadron RAF, operating in Macedonia during 1918. This aircraft was flown by Lt. K.B. Moseley, who was credited with the shooting down of an Albatros D.V on the 9th of July, 1918 over the Rupel Pass. This same aircraft was also flown by Lt. J.P. Cavers, who was credited with the shooting down of a LVG on the 1st of September and another LVG on the 2nd of September. The underside of the wings and fuselage were said to be a light blue colour, apparently to reduce the absorbed heat reflected from the ground. It's thought the propeller spinner was of the same colour. The colour of the upper surfaces has been depicted as either a red/brown (PC 12) or an olive green (early PC10). The kit instructions and the colour profile by artist Ronnie Barr have the PC12 colour, whereas the ‘Windsock’ Data file colour is PC10. As always the definition of colours from early monochrome photographs has always been problematic and the shade differences between PC10 and PC12 are no exception. The ’Windsock’ Data file states that it may have been that these aircraft were painted with PC12 when routed through the aircraft depot at Salonika, Greece. However, it was more likely the colour of aircraft operated in Macedonia were PC10, with the possible exception of No.72 Squadron. I've decided to use the PC10 colour, based on the ‘Windsock’ data. Mike 5 2 Link to comment Share on other sites More sharing options...
Administrators JeroenPeters Posted October 4, 2020 Administrators Share Posted October 4, 2020 Looking forward to this! Lovely little subject 3 Link to comment Share on other sites More sharing options...
belugawhaleman Posted October 5, 2020 Share Posted October 5, 2020 Always liked this little Bristol fighter. I'm curious about the Special Hobby kit. I'll be sure to watch your build. 3 Link to comment Share on other sites More sharing options...
harv Posted October 5, 2020 Share Posted October 5, 2020 I have front row picked out.....harv 2 Link to comment Share on other sites More sharing options...
DocRob Posted October 5, 2020 Share Posted October 5, 2020 Great choice Mike. I have the same kit in stash for a far future build, so I'm naturally interested into your thoughts and efforts going into the Bristol. Cheers Rob 3 Link to comment Share on other sites More sharing options...
sandbagger Posted October 5, 2020 Author Share Posted October 5, 2020 Hi all, The engine for the Bristol is done. It's the basic kit engine with just the ignition leads added. The leads were made from twisted 0.125 mm copper wire and annealed to soften and discolour them. The engine was painted with 'Alclad' lacquers - Black Base (ALC-305-60), Steel (ALC-112) and Exhaust Manifold (ALC-123). The kit engine was used as it is a good enough quality not to require an aftermarket version. Besides, once fitted, very little of the engine will be visible inside the engine cowl and behind the propeller and huge spinner. Now it's onto the cockpit, Mike 7 Link to comment Share on other sites More sharing options...
Bomber_County Posted October 5, 2020 Share Posted October 5, 2020 Mike you’re a machine.........your bench time must be astronomical........yep jealous as hell 3 Link to comment Share on other sites More sharing options...
Jeff Posted October 5, 2020 Share Posted October 5, 2020 13 hours ago, harv said: I have front row picked out.....harv Can I sit beside you , Harv? I will bring more popcorn... always great to get a front row seat in the Classroom ! 2 Link to comment Share on other sites More sharing options...

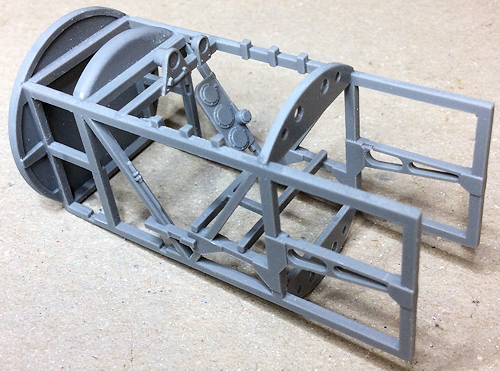

sandbagger Posted October 6, 2020 Author Share Posted October 6, 2020 Hi all, I'm working my way through the cockpit assembly. Most is assembled ready for painting. There are other parts to add after they've been painted. I've drill 0.3 mm diameter holes and added 'GasPatch' 1:48th 'one end' turnbuckles to the rudder bar. Added a 0.3 mm rod to the control column to add strength to its attachment to the floor (hole drilled to receive the rod). I've also drilled 0.3 mm diameter holes across the control column for the elevator control wires. The instrument panel of the cockpit right side frame is orientated incorrectly in the instructions. The photograph shows how it was mounted, so I've gone with that, Mike 6 Link to comment Share on other sites More sharing options...
sandbagger Posted October 10, 2020 Author Share Posted October 10, 2020 Hi all, Most of the cockpit has been assembled now. The control lines and bracing lines are 0.08 mm diameter mono-filament, with 0.4 mm diameter Nickel-Silver tubes and 'Gaspatch 1:48th scale turnbuckles. I've still fit the engine controls and rods and the pilot's seat with harness. Then it's a bit of weathering and finally sealing, to add the semi-sheen finish to the wood work and leather seat cushion, Mike 5 1 Link to comment Share on other sites More sharing options...
DocRob Posted October 11, 2020 Share Posted October 11, 2020 Nice woodwork and rigging Mike, looks like a fiddly but straightforward build and enjoyable build. Cheers Rob 3 Link to comment Share on other sites More sharing options...

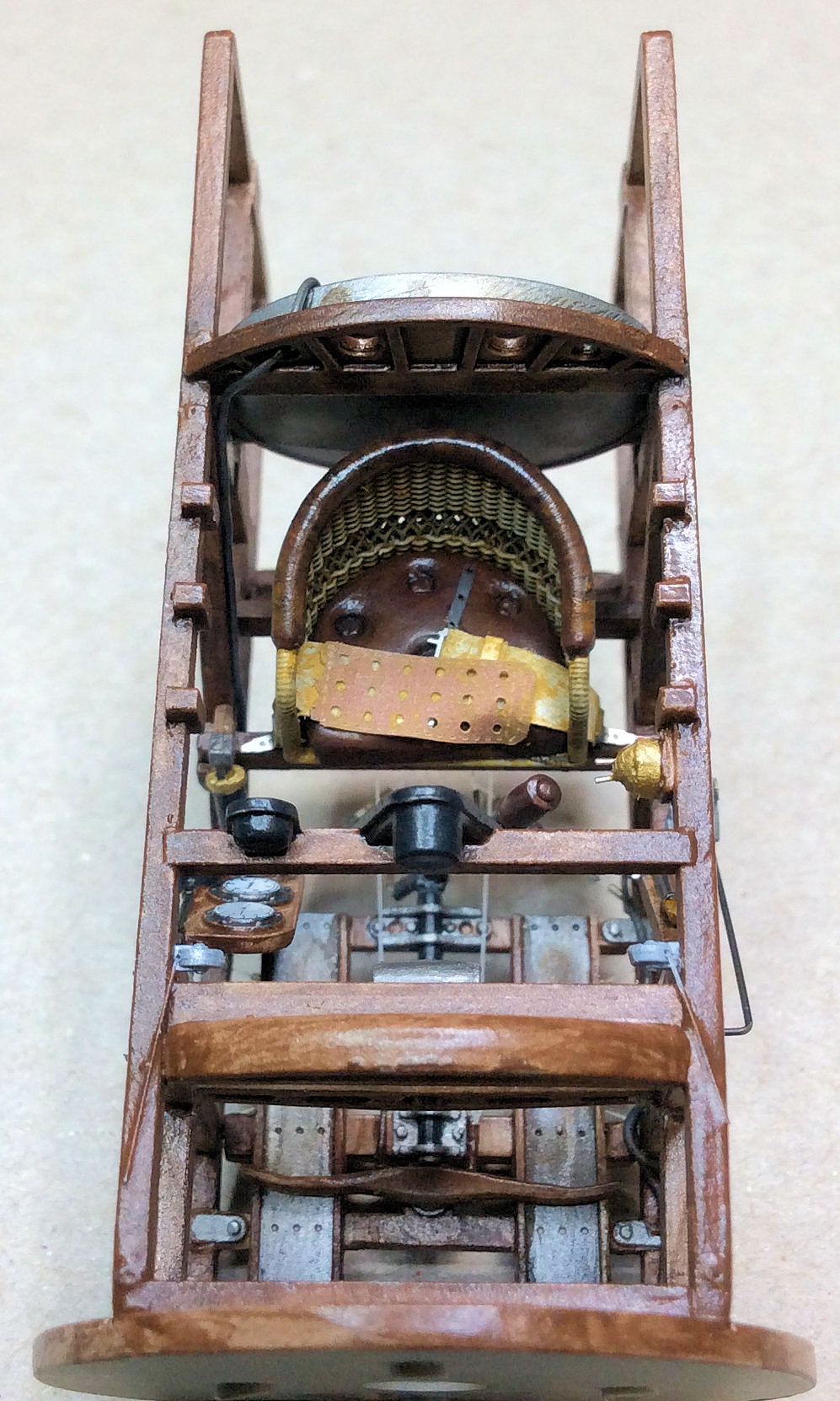

sandbagger Posted October 12, 2020 Author Share Posted October 12, 2020 Hi all, The cockpit is ready to be fitted into the fuselage, when most of it won't be visible (why do we do it). Additional pipes are 0.4 mm diameter lead wire. Engine control rods are 0.4 mm diameter Nickel-Silver tube, chemically blackened with 'Black-It'. The supplied seat harness was photo-etch and looked remarkably the same as the 'Eduard' set for the WW2 Fairy 'Swordfish' aircraft. Needless to say I replaced them with the coloured textile set from 'HGW Models', Mike. 9 1 Link to comment Share on other sites More sharing options...
Administrators JeroenPeters Posted October 12, 2020 Administrators Share Posted October 12, 2020 This makes me happy. Lovely woodwork, research and detailing 4 Link to comment Share on other sites More sharing options...
HubertB Posted October 12, 2020 Share Posted October 12, 2020 59 minutes ago, JeroenPeters said: This makes me happy. Lovely woodwork, research and detailing + 1 ! Hubert 5 Link to comment Share on other sites More sharing options...
Martinnfb Posted October 12, 2020 Share Posted October 12, 2020 me 3 3 Link to comment Share on other sites More sharing options...
sandbagger Posted October 14, 2020 Author Share Posted October 14, 2020 Hi all, Just a few updates. I've modified the front end to accept a 'ProperPlane' laminated propeller ('Lang' type). This entailed replacing the propeller shaft on the engine with 2.0 mm tube and filing the front face of the spinner support ring. Also sanding the rear face of the propeller hub, re-profiling the spinner cut-outs and thinning the walls of the engine cowl and spinner. The Vickers Mk.1 machine gun was replaced with a 'GasPatch' version, which required lengthening the fuselage recess to accept the weapon. The two ammunition feed guards were also slightly re-profiled. I also drilled out what was a solid ammunition ejector chute. The undercarriage struts attachment to the fuselage was poor and didn't allow for the struts to be angled correctly. These were modified to have 0.4 mm diameter locating rods and the tops of the struts chamfered to the shape of the fuselage. Also the two axle torque bars were replaced with stronger 1.0 mm diameter rod. Mike 8 Link to comment Share on other sites More sharing options...
Administrators Clunkmeister Posted October 17, 2020 Administrators Share Posted October 17, 2020 Awesome attention to detail, and the research on this little gem must be insane! 4 Link to comment Share on other sites More sharing options...
Rowdy Posted October 17, 2020 Share Posted October 17, 2020 O yeah!! This makes me happy! It’s said already, but I love the woodwork as well! Seeing a lot of WW1 era aircraft come across, maybe someday..... someday..... I will built one as well! Love the details! 3 Link to comment Share on other sites More sharing options...
sandbagger Posted October 19, 2020 Author Share Posted October 19, 2020 Hi all, The wings are supported by a strut assembly over the cockpit. The kit supplied struts are intended to be 'butt' glued together at the top and into shallow recesses in the fuselage sides. Not a very satisfactory assembly and probably not really strong enough to take the weight of the solid wings with rigging. Therefore I've replaced them with aero-shaped tubing with 0.4 mm diameter rods for locating into the fuselage. The whole assembly is soft soldered for strength, Mike 9 1 Link to comment Share on other sites More sharing options...
sandbagger Posted October 19, 2020 Author Share Posted October 19, 2020 Hi all, I've added the bungee type suspension cord to the axle ends, using 'EZ' heavy line (white). Also the half hoops at the axle ends, inboard from the base of the undercarriage struts. Made from annealed 0.4 mm diameter rod. Mike 6 Link to comment Share on other sites More sharing options...
sandbagger Posted October 21, 2020 Author Share Posted October 21, 2020 Hi All, I've been working on the undersides of the Bristol, which had the lined doped in light blue to help reflect the heat whilst operating in Mesopotamia. First was to prime grey then mask off the wing ribs and fuselage longerons. Then pre-shade using 'Tamiya' Smoke (XF19). Lightly overspray with 'Tamiya' Light Blue (XF23). Then remove all masking and a final light top coat of the light blue. The propeller assembly was done at the same time. Now it's onto painting to top surfaces with PC10, which the 'Windsock' data file suggest would be correct (not the brown PC12 often used). Mike 7 Link to comment Share on other sites More sharing options...
sandbagger Posted October 22, 2020 Author Share Posted October 22, 2020 Hi all, The underside of the wings and fuselage were said to be a light blue colour, in order to reduce the absorbed heat reflected from the ground. It is thought the propeller spinner was of the same colour. The colour of the upper surfaces has been depicted as either a red/brown (PC 12) or an olive green (early PC10). The kit instructions and most colour profiles have the PC12 colour. However, the ‘Windsock’ Data file No:52 colour profile is PC10. As always the definition of colours from early monochrome photographs has always been problematic and the shade differences between PC10 and PC12 are no exception. The ’Windsock’ Data file states that it is possible that these aircraft were painted with PC12 when routed through the aircraft depot at Salonika, Greece. However, it was more likely the colour of aircraft operated in Macedonia was PC10, with the possible exception of No.72 Squadron. I decided to use the PC10 colour, based on the ‘Windsock’ data. The paint used was 'Hataka' lacquer Dark Olive Green (C301). Mike 4 1 Link to comment Share on other sites More sharing options...
SapperSix Posted October 22, 2020 Share Posted October 22, 2020 Excellent, excellent build!!! The cockpit is very well done. 3 Link to comment Share on other sites More sharing options...
sandbagger Posted October 23, 2020 Author Share Posted October 23, 2020 Hi all, I've replaced the kit supplied Vickers Mk.1 machine gun with one from 'GasPatch'. The actual aircraft had a ring site fitted to the weapon, which wasn't on the kit part, so I used a spare from a 'Wingnut Wings' Sopwith Camel kit, Mike 5 Link to comment Share on other sites More sharing options...
Bomber_County Posted October 24, 2020 Share Posted October 24, 2020 Stunning Mike, wish I had the skill and the time....... 3 Link to comment Share on other sites More sharing options...
